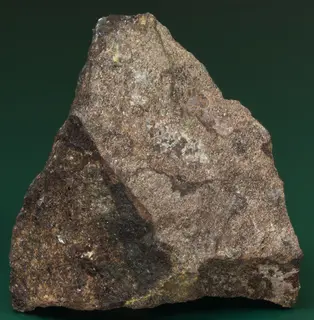

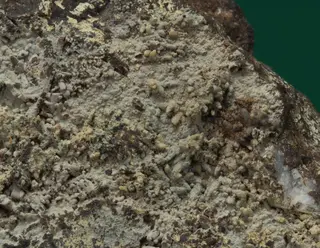

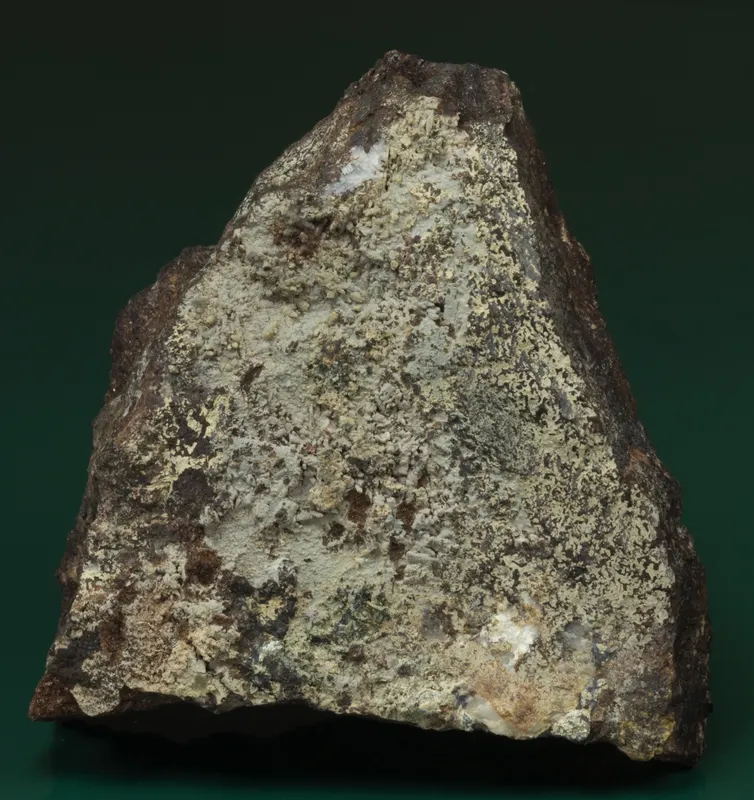

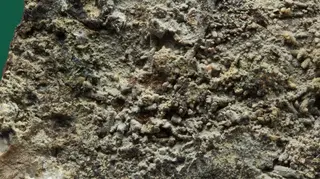

Svabite

Ca5(AsO4)3F
IMA status
  • Approved
  • Grandfathered
IMA symbol
Sva
Discovered
1891
Also known as
  • Arsenatapatit
  • Svabiet

Where it forms, where it's found

Type locality
Jakobsberg Mine
  1. Jakobsberg ore field
  2. Nordmark mining district
  3. Filipstad
  4. Värmland County
  5. Sweden

59.8280°, 14.1072°

30recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · light yellow · gray · light brown · colourless in transmitted light.
Streak
White
Tenacity
brittle
Cleavage
Poor/Indistinct

On (1010), indistinct.

Fracture
Irregular/Uneven
Density
3.5 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.698 – 1.706
Surface relief
High
Principal indices
nω 1.706 · nε 1.698
Birefringence
0.008
UV response
Fluoresces golden yellow to orange yellow SW and LW
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P63/mmc
Cell parameters
a = 9.75 Å · c = 6.92 Å
Z
2
Morphology

Crystals short prismatic [0001]. Also massive.

Type-locality form

Small hexagonal prisms, 1-2 mm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic374.922224.766
35.33%
20CaCalciumCalcium540.078200.390
31.50%
8OOxygenOxygen1215.999191.988
30.18%
9FFluorineFluorine118.99818.998
2.99%
Total636.142100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • O
  • H
  • OH
  • Cl

Synonyms

  • Arsenatapatit
  • Svabiet

In other languages

French
Svabite
German
Arsenapatit · Svabit · Swabit
Italian
Svabite

Classification

Strunz
10th ed.

8.BN.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BNWith only large cations, (OH, etc.):RO4 = 0.33:1Group
  • 8.BN.05SvabiteSpecies
Dana
8th ed.

41.08.03.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.08A5(XO4)3ZqType
  • 41.08.03Svabite GroupGroup
  • 41.08.03.01SvabiteSpecies
CIM

22.1.28

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.28SvabiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1891Sjögren, Hj. (1891) Bidrag till Sveriges mineralogi 3. Geologiska Föreningen i Stockholm Förhandlingar, 13 (7) 781-796 doi:10.1080/11035899109445851DOI: 10.1080/11035899109445851
  2. 1892Sjögren, H. (1892) Contributions to Swedish mineralogy. Part I: 7. Svabite a new member of the apatite group. Bulletin of the Geological Institution of the University of Upsala, 1. 50-56
  3. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  4. 1925Flink, Gust. (1925) Om svabit från Långban, ett för fyndorten nytt mineral. Geologiska Föreningen i Stockholm Förhandlingar, 47 (1) 127-134 doi:10.1080/11035892509443181DOI: 10.1080/11035892509443181
  5. 1930Bauer, L. H., Berman, Harry (1930) Notes on some Franklin minerals. American Mineralogist, 15 (8) 340-348
