Johnbaumite

Ca5(AsO4)3(OH)
IMA status
  • Approved
IMA symbol
Jbm
Discovered
1980
IMA approved
1980
Also known as
  • IMA1980-B
  • Johnbaumiet

Where it forms, where it's found

Geological setting

Metamorphic zinc-bearing skarn.

Skarn

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

16recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Light grayish white
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

(1010)

Fracture
Irregular/Uneven
Density
3.68 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.684 – 1.687
Surface relief
High
Principal indices
nω 1.687 · nε 1.684
Birefringence
0.003
Pleochroism
Non-pleochroic
Extinction
Parallel
UV response
Pinkish orange in SW only
Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P63/m
Cell parameters
a = 9.7242(2) Å · c = 6.9657(9) Å
Z
2
Type-locality form

Grayish white masses and grains to 8 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic374.922224.766
35.44%
8OOxygenOxygen1315.999207.987
32.80%
20CaCalciumCalcium540.078200.390
31.60%
1HHydrogenHydrogen11.0081.008
0.16%
Total634.151100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-B
  • Johnbaumiet

In other languages

French
Johnbaumite
German
Johnbaumit
Italian
Johnbaumite
Chinese
羟砷钙石

Classification

Strunz
10th ed.

8.BN.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BNWith only large cations, (OH, etc.):RO4 = 0.33:1Group
  • 8.BN.05JohnbaumiteSpecies
Dana
8th ed.

41.08.03.03

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.08A5(XO4)3ZqType

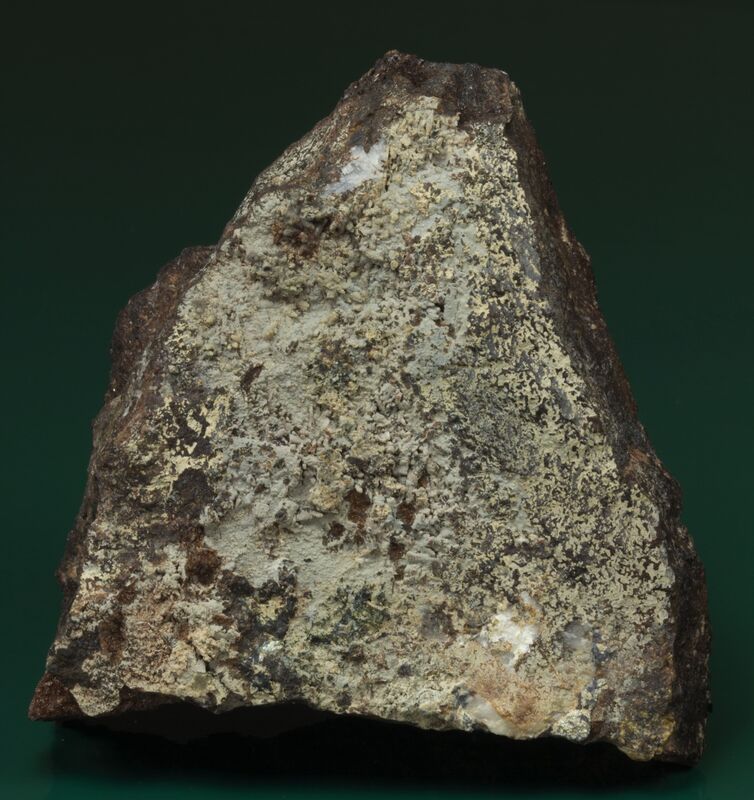

  • 41.08.03Svabite GroupGroup
  • 41.08.03.03JohnbaumiteSpecies
CIM

20.2.6

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.2Arsenates of Be, Mg, Ca or BaGroup
  • 20.2.6JohnbaumiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1980Dunn, Pete J., Peacor, Donald R., Newberry, Nancy (1980) Johnbaumite, a new member of the apatite group from Franklin, New Jersey. American Mineralogist, 65 (11-12) 1143-1145
  2. 1996Kusachi, Isao, Henmi, Chiyoko, Kobayashi, Shoichi (1996) Johnbaumite from Fuka, Okayama Prefecture, Japan. Mineralogical Journal, 18 (2) 60-66 doi:10.2465/minerj.18.60 DOI: 10.2465/minerj.18.60
  3. 2009Lee, Y. J., Stephens, P. W., Tang, Y., Li, W., Phillips, B. L., Parise, J. B., Reeder, R. J. (2009) Arsenate substitution in hydroxylapatite: Structural characterization of the Ca5(PxAs1-xO4)3OH solid solution. American Mineralogist, 94 (5) 666-675 doi:10.2138/am.2009.3120 DOI: 10.2138/am.2009.3120
  4. 2009Henderson, C. M. B., Bell, A. M. T., Charnock, J. M., Knight, K. S., Wendlandt, R. F., Plant, D. A., Harrison, W. J. (2009) Synchrotron X-ray absorption spectroscopy and X-ray powder diffraction studies of the structure of johnbaumite [Ca10(AsO4)6(OH,F)2] and synthetic Pb-, Sr- and Ba-arsenate apatites and some comments on the crystal chemistry of the apatite structure type in general. Mineralogical Magazine, 73 (3) 433-455 doi:10.1180/minmag.2009.073.3.433DOI: 10.1180/minmag.2009.073.3.433
  5. 2013Biagioni, C., Pasero, M. (2013) The crystal structure of johnbaumite, Ca5(AsO4)3OH, the arsenate analogue of hydroxylapatite. American Mineralogist, 98 (8) 1580-1584 doi:10.2138/am.2013.4443DOI: 10.2138/am.2013.4443
