Thornasite

Na12Th3(Si8O19)4 · 18H2O
IMA status
  • Approved
IMA symbol
Tna
Discovered
1985
IMA approved
1985
Also known as
  • IMA1985-050
  • Thornasiet

Where it forms, where it's found

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Transparency
Transparent · Translucent · Opaque
Colour
Light green to beige
Streak
White
Tenacity
brittle
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
2.62 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.51 – 1.512
Surface relief
Moderate
Principal indices
nω 1.510 · nε 1.512
UV response
Bright apple-green under long- and short-wave ultraviolet light.
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R3m
Cell parameters
a = 29.08 Å · c = 17.30 Å
Type-locality form

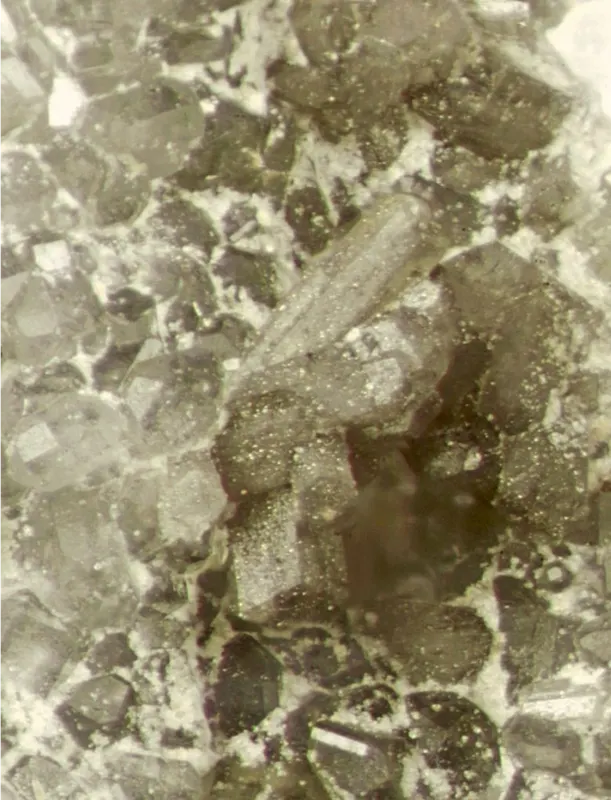

Anhedral crystals to 0.7 mm, embedded in patches of brockite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen9415.9991503.906
44.09%
14SiSiliconSilicon3228.085898.720
26.35%
90ThThoriumThorium3232.038696.114
20.41%
11NaSodiumSodium1222.990275.880
8.09%
1HHydrogenHydrogen361.00836.288
1.06%
Total3410.908100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • U
  • Al
  • Ca
  • Cl

Synonyms

  • IMA1985-050
  • Thornasiet

In other languages

German
IMA 1985-050 · Thornasit
Italian
IMA1985-050 · thornasite

Classification

Strunz
10th ed.

9.GF.50

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GFOther Rare ZeolitesGroup
  • 9.GF.50ThornasiteSpecies
Dana
8th ed.

72.01.02.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.01Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-membered ringsType
  • 72.01.02— unnamed intermediate level —Group
  • 72.01.02.01ThornasiteSpecies
CIM

14.11.4

  • 14Silicates not Containing AluminumClass
  • 14.11Silicates of Th and HgGroup
  • 14.11.4ThornasiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1987Ansell, V. E., Chao, George Y. (1987) Thornasite, a new hydrous sodium thorium silicate from Mont St-Hilaire, Quebec. The Canadian Mineralogist, 25. 181-183
  2. 1998Horváth, László, Gault, Robert A., Tarassoff, Peter, Pfenninger-Horváth, Elsa (1998) Mineralogy of the Saint-Amable Sill, Varennes and Saint-Amable, Quebec. The Mineralogical Record, 29 (2) 83-118
  3. 2000Krivovichev, Sergey V., Burns, Peter C., Li, Yaping, Krivovichev, Sergey V., Burns, Peter C. (2000) The crystal structure of thornasite, Na12Th3[Si8O19]4(H2O)18: A novel interrupted silicate framework. American Mineralogist, 85 (10) 1521-1525 doi:10.2138/am-2000-1025 DOI: 10.2138/am-2000-1025
  4. 2001LI, Y., KRIVOVICHEV, V., BURNS, P.C. (2001) Errata. American Mineralogist, 86, 384.
  5. 2001(2001) Thornasite. Handbook of Mineralogy. Mineralogical Society of America
