Tschernichite

CaAl2Si6O16 · 8H2O
IMA status
  • Approved
IMA symbol
Tni
Discovered
1972
IMA approved
1989
Also known as
  • IMA1989-037
  • Tschernichiet

Where it forms, where it's found

Geological setting

In small vesicles in dense Eocene basalt. Formed through local hydrothermal activity.

Type locality
Neer Road
  1. Goble
  2. Columbia County
  3. Oregon
  4. USA

46.0203°, -122.8789°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless to white
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
2.02 g/cm³

Optical

Optical type
Uniaxial (-) · 2V measured = 35°
Refractive index
1.483 – 1.484
Surface relief
Low
Principal indices
nω 1.484 · nε 1.483
Extinction
Crystals are in part biaxial (-), and show somewhat wavy extinction. Thin sections cut perpendicular to (100) show areas of parallel extinction, as well as apparent twin lamellae perpendicular to (001), which show inclined extinction.
UV response
May show pale yellow fluorescence under SW and LW UV.
Michel-Lévy diagramhighlighted lineδ = 0.0010
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]10 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation10 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#181
Cell parameters
a = 12.88 Å · c = 25.02 Å
Unit cell volume
4150.68 ų
Z
8
Morphology

Type material: Steep dipyramids (302), terminated by (001), striated parallel to (001). Three other minor dipyramids, (104), (101), and (502), are rarely observed.

Twinning

Common contact twins on (302), (304), and (101). Multiple twinning involving both twin planes often occurs, resulting in complex ball-like groups.

Type-locality form

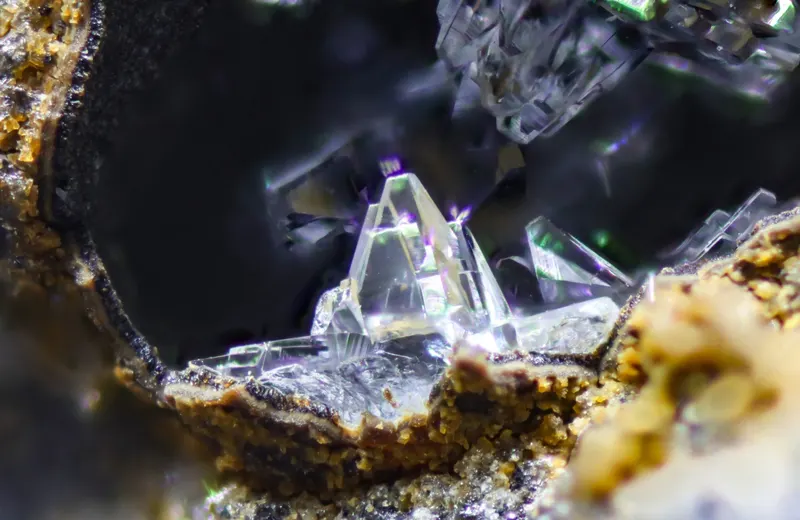

Steep tetragonal dipyramids to 0.1-10 mm as drusy linings, radiating hemispherical groups, and single and twinned crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
57.95%
14SiSiliconSilicon628.085168.510
25.43%
13AlAluminiumAluminium226.98253.964
8.14%
20CaCalciumCalcium140.07840.078
6.05%
1HHydrogenHydrogen161.00816.128
2.43%
Total662.656100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • IMA1989-037
  • Tschernichiet

In other languages

German
IMA 1989-037 · Tschernichit
Italian
IMA1989-037 · tschernichite
Chinese
切尔尼希石

Classification

Strunz
10th ed.

9.GF.30

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GFOther Rare ZeolitesGroup
  • 9.GF.30TschernichiteSpecies
Dana
8th ed.

77.01.08.02

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.08Unclassified zeolite speciesGroup
  • 77.01.08.02TschernichiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1991Smith, J.V., Pluth, J.J., Boggs, R.C., Howard, D.G. (1991) Tschernichite, the mineral analogue of zeolite beta. Journal of the Chemical Society, Chemical Communications: 1991: 363-364.
  2. 1993Boggs, Russell C., Howard, Donald G., Smith, Joseph V., Klein, Gerald L. (1993) Tschernichite, a new zeolite from Goble, Columbia County, Oregon. American Mineralogist, 78 (7-8) 822-826
  3. 1995Galli, Ermanno, Quartieri, Simona, Vezzalini, Giovanna, Alberti, Alberto (1995) Boggsite and tschernichite-type zeolites from Mt. Adamson, Northern Victoria Land (Antarctica) European Journal of Mineralogy, 7 (4) 1029-1032 doi:10.1127/ejm/7/4/1029DOI: 10.1127/ejm/7/4/1029
  4. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  5. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
