Tsumcorite

PbZn2(AsO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Tmc
Discovered
1969
IMA approved
1969
Also known as
  • Arsenbleinierit
  • Arsenbleinierita
  • IMA1969-047
  • +1 more

Where it forms, where it's found

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

33recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow-brown · red-brown · orange
Streak
Yellow
Cleavage
Distinct/Good

(001), good.

Density
5.2 g/cm³

Optical

Optical type
Biaxial · 2V measured = 67 – 84°
Refractive index
1.87 – 1.96
Surface relief
Very high
Principal indices
nα 1.87 – 1.91 · nβ 1.89 – 1.93 · nγ 1.92 – 1.96
Pleochroism
Weak

X = Z = pale yellow; Y = yellow.

Dispersion
dispersion not observed
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.124 Å · b = 6.329 Å · c = 7.577 Å
Cell angles
β = 115.3 °
Ratio a:b:c
1 : 0.694 : 0.830
Z
2
Twinning

Common, on a unknown law

Type-locality form

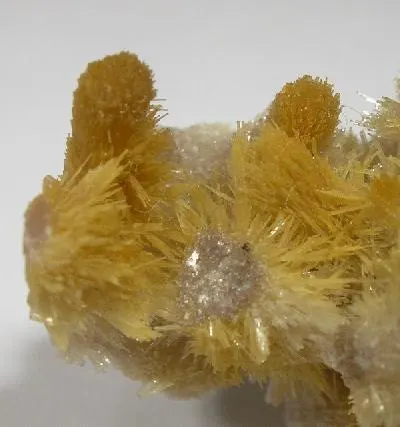

Radiating fibrous crusts.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
31.79%
8OOxygenOxygen1015.999159.990
24.54%
33AsArsenicArsenic274.922149.844
22.99%
30ZnZincZinc265.380130.760
20.06%
1HHydrogenHydrogen41.0084.032
0.62%
Total651.826100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Arsenbleinierit
  • Arsenbleinierita
  • IMA1969-047
  • Tsumcoriet

In other languages

French
Tsumcorite
German
IMA 1969-047 · Tsumcorit
Spanish
Tsumcorita
Italian
Tsumcorite
Arabic
تسومكوريت

Classification

Strunz
10th ed.

8.CG.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.15TsumcoriteSpecies
Dana
8th ed.

40.02.09.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.02AB2(XO4)2·xH2OType
  • 40.02.09Helmutwinklerite SubgroupGroup
  • 40.02.09.01TsumcoriteSpecies
CIM

20.5.14

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.5Arsenates of Ti and PbGroup
  • 20.5.14TsumcoriteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1961Walenta, K., Wimmenauer, W. (1961) Der Mineralbestand des Michaelganges im Weiler bei Lahr (Schwarzwald). Jahreshefte des Geologischen Landesamts Baden-Württemberg: 4: 7-37 (in German).
  2. 1971Geier, B. H., Kautz, K., Müller, G. (1971) Tsumcorit(e) [PbZnFe(AsO4)2]·H2O, ein neues mineral aus den oxidationszonen der Tsumeb-Mine, Südwestafrika. Neues Jahrbuch für Mineralogie - Monatshefte, 1971. 305-309
  3. 1972Fleischer, Michael (1972) New Mineral Names. American Mineralogist, 57 (9-10) 1552-1561
  4. 1973Tillmanns, E., Gebert, W. (1973) The crystal structure of tsumcorite, a new mineral from the Tsumeb mine, S. W. Africa. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 29 (12) 2789-2794 doi:10.1107/s0567740873007545DOI: 10.1107/s0567740873007545
  5. 1976Hofmeister, W., Tillmans, E. (1976) Strukturelle Beziehungen zwischen Arsenbrackebuschit und Tsumcorit. Fortschritte der Mineralogie: 54: 38.
