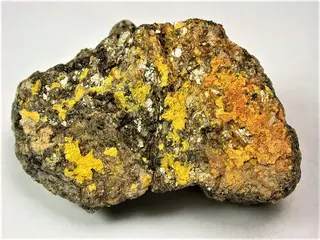

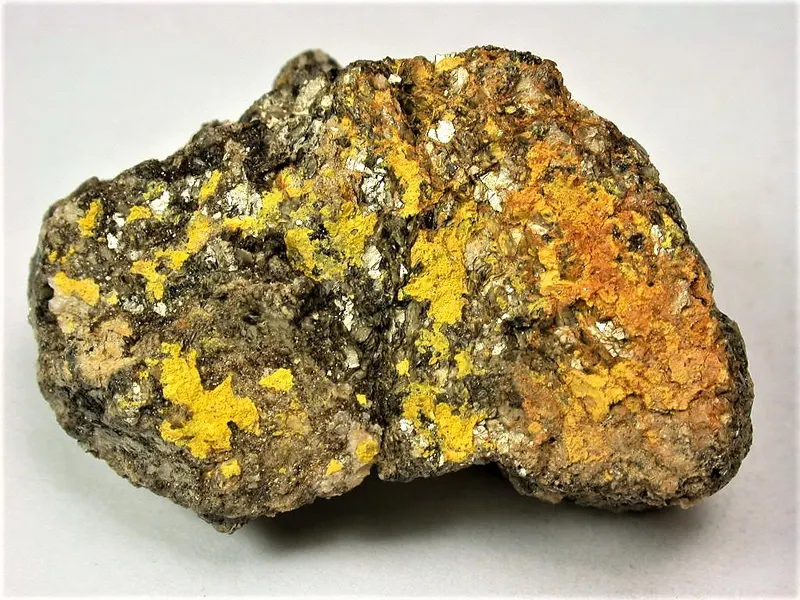

Uranospinite

Ca(UO2)2(AsO4)2 · 10H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Usp
Discovered
1873
Also known as
  • Calcium-uranospinite
  • Calciumarsenuranit
  • Uranospiniet

Where it forms, where it's found

Geological setting

Oxidized zones of U- and As-bearing hydrothermal deposits.

Type locality
Walpurgis Flacher vein
  1. Weißer Hirsch Mine (shaft 3)
  2. Neustädtel
  3. Schneeberg
  4. Erzgebirgskreis
  5. Saxony
  6. Germany

50.5883°, 12.6389°

55recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow · lemon-yellow to greenish yellow
Streak
Very pale yellow
Tenacity
flexible
Cleavage
Perfect

On (001), perfect; on (100), distinct.

Fracture
Micaceous
Density
3.45 g/cm³

Optical

Optical type
Uniaxial (-) · 2V measured = 62° · 2V calc = 50°
Refractive index
1.55 – 1.587
Surface relief
Moderate
Principal indices
nα 1.550 · nβ 1.567 – 1.582 · nγ 1.572 – 1.587 · nω 1.572 – 1.587 · nε 1.550 – 1.560
Birefringence
0.024
Pleochroism
Visible

O = Y = Z = Pale yellow E = X = Nearly colourless

Dispersion
r > v moderate
Extinction
Parallel
UV response
Bright lemon-yellow (UV).
Notes

Commonly anomalously biaxial -, may be zoned.

Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#185
Cell parameters
a = 7.16 Å · c = 20.4 Å
Z
2
Morphology

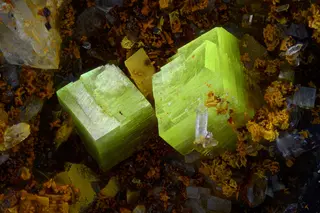

Crystals rare, tabular, flattened on (001). Forms aggregates and crusts.

Epitaxy

Uranospinite may contain a core of zeunerite with the same crystallographic orientation.

Comment

Point Group/Class & Space Groups based on synthetic material and are probable.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
45.86%
8OOxygenOxygen2215.999351.978
33.91%
33AsArsenicArsenic274.922149.844
14.43%
20CaCalciumCalcium140.07840.078
3.86%
1HHydrogenHydrogen201.00820.160
1.94%
Total1038.118100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calcium-uranospinite
  • Calciumarsenuranit
  • Uranospiniet

In other languages

French
Uranospinite
German
Uranospinit
Spanish
Uranospinita
Italian
Uranospinite

Classification

Strunz
10th ed.

8.EB.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.05UranospiniteSpecies
Dana
8th ed.

40.2a.02.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.02— unnamed intermediate level —Group
  • 40.2a.02.01UranospiniteSpecies
CIM

20.7.10

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.7Arsenates of UGroup
  • 20.7.10UranospiniteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1873Weisbach A. (1873), Neue Uranerze von Neustädtel bei Schneeberg.- Jahrbuch für das Berg- und Hüttenwesen im Königreiche Sachsen, Abhandlungen, 119-121.
  2. 1899Goldschmidt (1899) Zeitschrift für Kristallographie, Mineralogie und Petrographie, Leipzig: 31: 468.
  3. 1920Butler, B.S., Loughlin, G.F., Heikes, V.C. (1920) The ore deposits of Utah. Professional Paper 111. US Geological Survey doi:10.3133/pp111 DOI: 10.3133/pp111
  4. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  5. 1923(1923) Atlas Der Krystallformen Vol. 9 - Text - Band IX - Trechmannit-Zoisit und Nachträge. Carl Winters Universitätsbuchhandlung, Heidelberg.
