Metazeunerite

Cu(UO2)2(AsO4)2 · 8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mzeu
Discovered
1937
Also known as
  • Kupfer-Uranglimmer
  • Metazeuneriet

Where it forms, where it's found

Geological setting

Oxidized zones of arsenic-bearing hydrothermal uranium deposits.

Type locality
Walpurgis Flacher vein
  1. Weißer Hirsch Mine (shaft 3)
  2. Neustädtel
  3. Schneeberg
  4. Erzgebirgskreis
  5. Saxony
  6. Germany

50.5883°, 12.6389°

195recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Grass-green · emerald-green · green in transmitted light
Streak
greenish white
Tenacity
brittle
Cleavage
Perfect

On (001), perfect; on (010), distinct.

Fracture
Irregular/Uneven
Density
3.64 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.623 – 1.651
Surface relief
Moderate
Principal indices
nω 1.643 – 1.651 · nε 1.623 – 1.635
Pleochroism
Weak

Weakly dichroic in transmitted light. O = Green E = Pale green, bluish, colourless

UV response
Pale yellow-green (LWUV & SW UV).
Notes

Indices of refraction vary continuously with the content of zeolitic water within the limits of the phase.

Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#140
Cell parameters
a = 7.1094 Å · c = 17.416 Å
Unit cell volume
880.3 ų
Z
2
Morphology

Crystals rectangular, tabular on (001), with (010), or dipyramidal, terminated by (001). Forms other than (001) commonly rough and striated horizontally. Commonly as foliated or micaceous aggregates.

Twinning

Merohedrally twinned.

Epitaxy

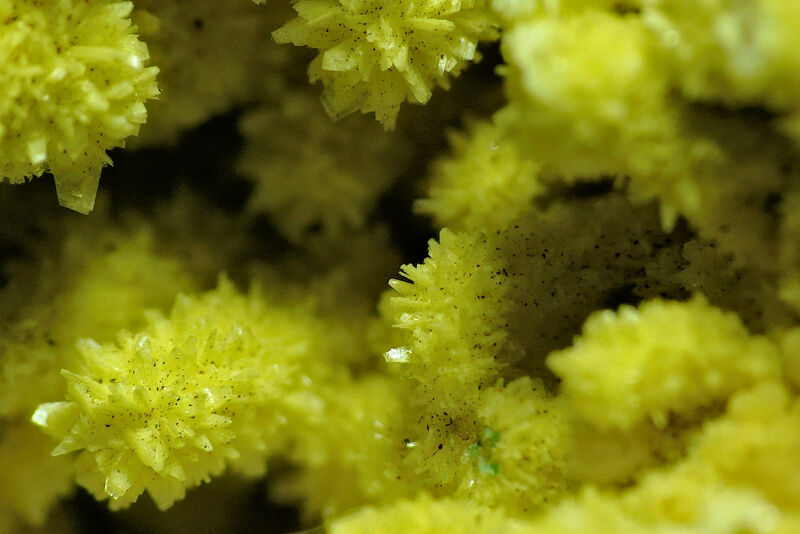

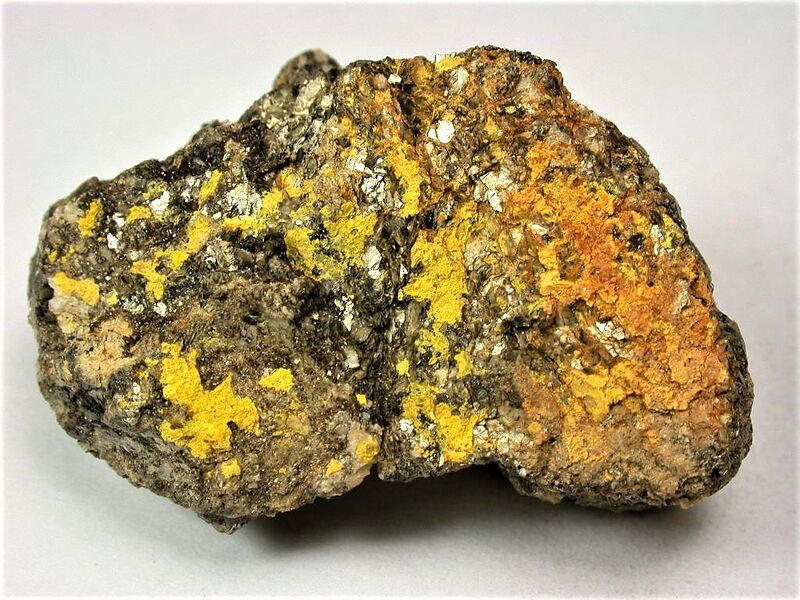

Oriented growths of metazeunerite on trögerite and uranospinite, with parallel axes.

Comment

Possesses 4/m 2/m 2/m pseudosymmetry.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
46.42%
8OOxygenOxygen2015.999319.980
31.20%
33AsArsenicArsenic274.922149.844
14.61%
29CuCopperCopper163.54663.546
6.20%
1HHydrogenHydrogen161.00816.128
1.57%
Total1025.556100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Kupfer-Uranglimmer
  • Metazeuneriet

In other languages

French
Métazeunérite
German
Metazeunerit
Spanish
Metazeunerita
Italian
Metazeunerite
Chinese
变铜砷铀云母

Classification

Strunz
10th ed.

8.EB.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.10MetazeuneriteSpecies
Dana
8th ed.

40.2a.14.02

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.14— unnamed intermediate level —Group
  • 40.2a.14.02MetazeuneriteSpecies
CIM

20.7.4

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.7Arsenates of UGroup
  • 20.7.4MetazeuneriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1872Schrauf (1872) Mineralogische und petrographische Mitteilungen, Vienna: 2: 181.
  2. 1872Weisbach, A. (1872) Mittheilungen an Professor H.B. Geinitz, Freiberg, den 9. Februar 1872. Neues Jahrbuch für Mineralogie, Geologie und Palaontologie: 1872: 206-208. (as zeunerit)
  3. 1873Weisbach, A. (1873) Neue Uranerze von Neustädtel bei Schneeberg (Freiberger Jarbuch). Neues Jahrbuch für Mineralogie, Geologie und Palaontologie: 1873: 314-317. (as zeunerit)
  4. 1877Weisbach, A. (1877) Berg.- und hüttenmännisches Jahrbuch, Vienna: 42: 53.
  5. 1899Goldschmidt (1899) Zeitschrift für Kristallographie, Mineralogie und Petrographie, Leipzig: 31: 468.
