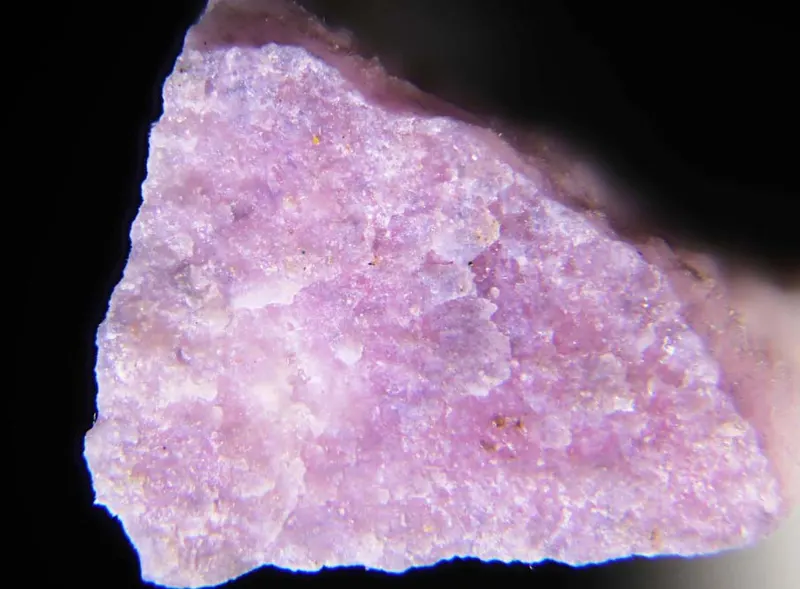

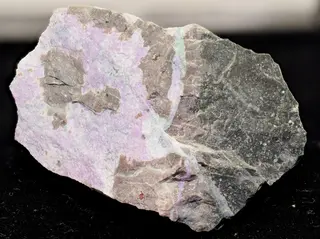

Bentorite

Ca6Cr2(SO4)3(OH)12 · 26H2O
IMA status
  • Approved
IMA symbol
Bto
Discovered
1975
IMA approved
1979
Also known as
  • IMA1979-042

Where it forms, where it's found

Geological setting

Auto-metamorphosed marble: Hatrurim Formation.

Type locality
Hatrurim Formation
  1. Middle East
5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Violet to rose-purple
Streak
Very pale purple
Tenacity
brittle
Cleavage
Perfect

(1010) perfect; (0001) good

Fracture
Sub-Conchoidal
Density
2.025 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.478 – 1.484
Surface relief
Low
Principal indices
nω 1.478 · nε 1.484
Birefringence
0.006
Pleochroism
Visible

O = colorless; E = pale violet purple

Extinction
Parallel
UV response
Not fluorescent in UV
Notes

Absorption E > O

Michel-Lévy diagramhighlighted lineδ = 0.0060
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]60 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation60 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 11.1927(5) Å · c = 21.7121(5) Å
Z
2
Morphology

Euhedral crystals very rare. Minute crystals (<< 1 mm) show first- and second-order prisms.

Twinning

(1010)

Type-locality form

Fine-grained deep purple to light rosey purple masses and veinlet filling.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5015.999799.950
61.29%
20CaCalciumCalcium640.078240.468
18.43%
24CrChromiumChromium251.996103.992
7.97%
16SSulfurSulfur332.06096.180
7.37%
1HHydrogenHydrogen641.00864.512
4.94%
Total1305.102100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-042

In other languages

French
Bentorite
German
Bentorit · IMA 1979-042
Spanish
Bentorita
Italian
Bentorite
Chinese
钙铬矾

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15BentoriteSpecies
Dana
8th ed.

31.10.02.02

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.10MiscellaneousType
  • 31.10.02— unnamed intermediate level —Group
  • 31.10.02.02BentoriteSpecies
CIM

25.4.14

  • 25SulphatesClass
  • 25.4Sulphates of Ca, Sr and BaGroup
  • 25.4.14BentoriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1980Gross, S. (1980) Bentorite. A new mineral from the Hatrurim Area, west of the Dead Sea, Israel. Israel Journal of Earth Science, 29, 81–84.
  2. 1981Fleischer, Michael, Cabri, Louis J. (1981) New Mineral Names. American Mineralogist, 66 (5-6) 637-639
  3. 2005(2005) Bentorite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2017Seryotkin, Yurii V., Sokol, Ella V., Kokh, Svetlana N., Murashko, Mikhail N. (2017) Natural Cr3+-rich ettringite: occurrence, properties, and crystal structure. Physics and Chemistry of Minerals, 45 (3). 279-292 doi:10.1007/s00269-017-0917-yDOI: 10.1007/s00269-017-0917-y
  5. 2019Seryotkin, Yurii V., Sokol, Ella V., Kokh, Svetlana N., Sharygin, Victor V. (2019) Natural bentorite—Cr3+ derivate of ettringite: determination of crystal structure. Physics and Chemistry of Minerals, 46 (6) 553-570 doi:10.1007/s00269-019-01022-4DOI: 10.1007/s00269-019-01022-4
