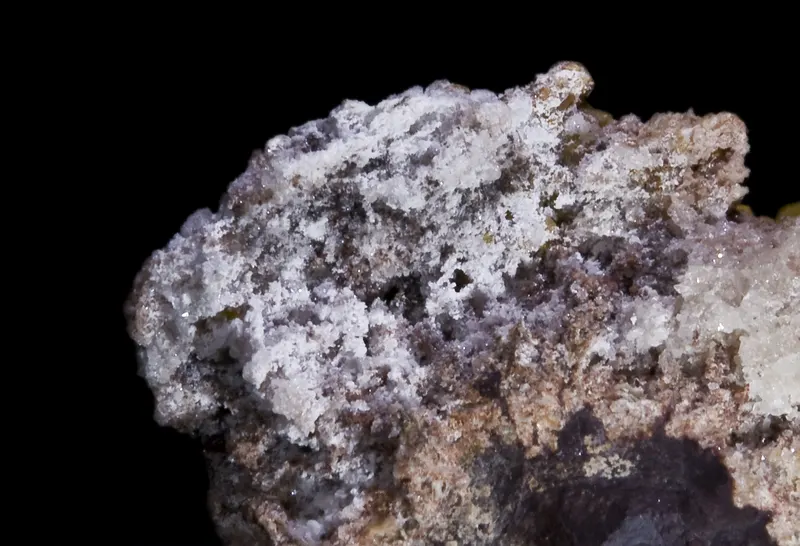

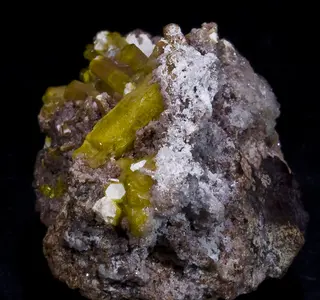

Charlesite

Ca6Al2(SO4)2B(OH)4(OH,O)12 · 26H2O
IMA status
  • Approved
IMA symbol
Chrl
Discovered
1981
IMA approved
1981
Also known as
  • Charlesiet
  • IMA1981-043

Where it forms, where it's found

Geological setting

Metamorphosed stratiform cabonate hosted zinc silicate and oxide deposit.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white
Streak
White
Tenacity
brittle
Cleavage
Perfect

10_10

Fracture
Irregular/Uneven
Density
1.77 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.475 – 1.492
Surface relief
Low
Principal indices
nω 1.492 · nε 1.475
Birefringence
0.017
Pleochroism
Non-pleochroic
Extinction
parallel
UV response
Pale violet to pale green in SW weaker in LW
Michel-Lévy diagramhighlighted lineδ = 0.0170
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]170 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation170 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
P3 1c
Cell parameters
a = 11.161(1) Å · c = 21.212(2) Å
Z
2
Morphology

Tabular crystals with a trigonal trigonal termination

Type-locality form

Vug and fracture coating.

Comment

Probable class, space group by analogy to ettringite.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6215.999991.938
69.37%
20CaCalciumCalcium640.078240.468
16.82%
1HHydrogenHydrogen681.00868.544
4.79%
16SSulfurSulfur232.06064.120
4.49%
13AlAluminiumAluminium226.98253.964
3.77%
5BBoronBoron110.81010.810
0.76%
Total1429.844100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Charlesiet
  • IMA1981-043

In other languages

French
charlésite
German
Charlesit · IMA 1981-043
Italian
Charlesite
Chinese
水硼铝钙矾

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15CharlesiteSpecies
Dana
8th ed.

32.04.04.01

  • 32Compound SulfatesClass
  • 32.04Hydrated Compound Sulfates containing Hydroxyl or HalogenType
  • 32.04.04Charlesite GroupGroup
  • 32.04.04.01CharlesiteSpecies
CIM

10.3.3

  • 10Borates with other anionsClass
  • 10.3Borates with sulphateGroup
  • 10.3.3CharlesiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1983Dunn, Pete J., Peacor, Donald R., Leavens, Peter B., Baum, John L. (1983) Charlesite, a new mineral of the ettringite group, from Franklin, New Jersey. American Mineralogist, 68 (9-10) 1033-1037
  2. 2005(2005) Charlesite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2008Kusachi, Isao, Shiraishi, Naoko, Shimada, Kazumasa, Ohnishi, Masayuki, Kobayashi, Shoichi (2008) CO3-rich charlesite from the Fuka mine, Okayama Prefecture, Japan. Journal of Mineralogical and Petrological Sciences, 103 (1) 47-51 doi:10.2465/jmps.070827a DOI: 10.2465/jmps.070827a
