Ettringite

Ca6Al2(SO4)3(OH)12 · 27H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ett
Discovered
1874
Also known as
  • Chalkomorphit
  • Woodfordite

Where it forms, where it's found

Geological setting

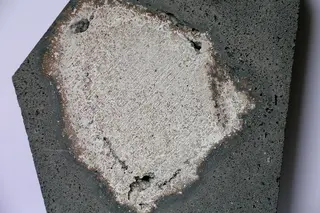

In cavities of metamorphosed limestone inclusions in a leucite-nepheline-tephrite rock.

Type locality
Ettringer Feld
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3458°, 7.2222°

101recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · colourless in transmitted light · yellow

Turns white upon partial dehydration.

Cleavage
Perfect

On (1010), perfect.

Density
1.77 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.47 – 1.491
Surface relief
Low
Principal indices
nω 1.491 · nε 1.47
Notes

Becomes uniaxial positive on dehydration.

Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 11.23 Å · c = 21.44 Å
Z
2
Morphology

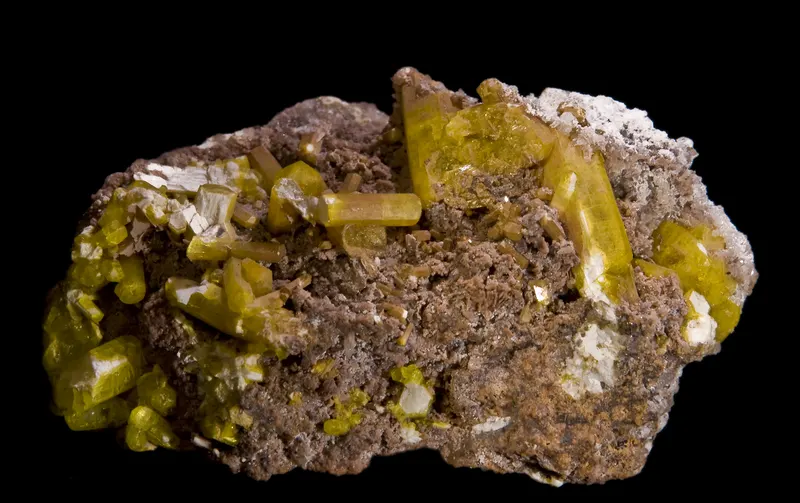

Crystals small and prismatic [0001], commonly without terminal faces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5115.999815.949
64.09%
20CaCalciumCalcium640.078240.468
18.89%
16SSulfurSulfur332.06096.180
7.55%
1HHydrogenHydrogen661.00866.528
5.23%
13AlAluminiumAluminium226.98253.964
4.24%
Total1273.089100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chalkomorphit
  • Woodfordite

In other languages

French
Chalkomorphit · Ettringite · Sel de Candlot · Woodfordite
German
Ettringit
Spanish
ettringita
Italian
Ettringite
Portuguese
etringita
Japanese
ウッドフォーダイト · エトリンガイト
Chinese
钙矾石
Russian
Эттрингит

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15EttringiteSpecies
Dana
8th ed.

31.10.02.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.10MiscellaneousType
  • 31.10.02— unnamed intermediate level —Group
  • 31.10.02.01EttringiteSpecies
CIM

25.4.13

  • 25SulphatesClass
  • 25.4Sulphates of Ca, Sr and BaGroup
  • 25.4.13EttringiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1873Vom Rath, G. (1873) Über ein neues Mineral (Chalkomorphit) auf einem Einschluß in der Lava von Niedermendig. Annalen der Chemie und Physik, Ergänzungsband VI: 376-378.
  2. 1874Lehmann, J. (1874) Untersuchungen über die Einwirkung eines feurig-flüssigen basaltischen Magmas auf Gesteins- und Mineraleinschlüsse. Verhandlungen des naturhistorischen Vereins der preußischen Rheinlande und Westfalens, in Kommission bei M. Cohen: 31: 1-40.
  3. 1874Lehmann, J. (1874) Über den Ettringit, ein neues Mineral in Kalkeinschlüssen der Lava von Ettringen (Laacher Gebiet). Neues Jahrbuch für Mineralogie, Geologie und Paläontologie: 273-275.
  4. 1893Moses, A.J. (1893) Mineralogical notes. American Journal of Science: 45: 488-492.
  5. 1922Brauns, Reinhard (1922) Die Mineralien der Niederrheinischen Vulkangebiete - Mit besonderer Berücksichtigung ihrer Bildung und Umbildung. E. Schweizerbart'sche Verlagsbuchhandlung.
