Micheelsenite

(Ca,Y)3Al(PO3OH)(CO3)(OH)6 · 12H2O
IMA status
  • Approved
IMA symbol
Msn
Discovered
1971
Also known as
  • IMA1999-033
  • Micheelseniet
  • Unnamed (MSH UK-32)

Where it forms, where it's found

Geological setting

In pegmatites (in socalled "silicate cavities"), seams in hornfels and marble xenoliths at the Poudrette quarry, Mont Saint Hilaire, Quebec, Canada and in the Nanna pegmatite, Greenland.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
White to colourless
Streak
White
Cleavage
Distinct/Good

(1010) and (0001) good

Fracture
Splintery
Density
2.15 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.503 – 1.532
Surface relief
Moderate
Principal indices
nω 1.532 · nε 1.503
UV response
None observed
Michel-Lévy diagramhighlighted lineδ = 0.0290
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]290 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation290 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#104
Cell parameters
a = 10.828(3) Å · c = 10.516(4) Å
Unit cell volume
1067.8 ų
Z
2
Morphology

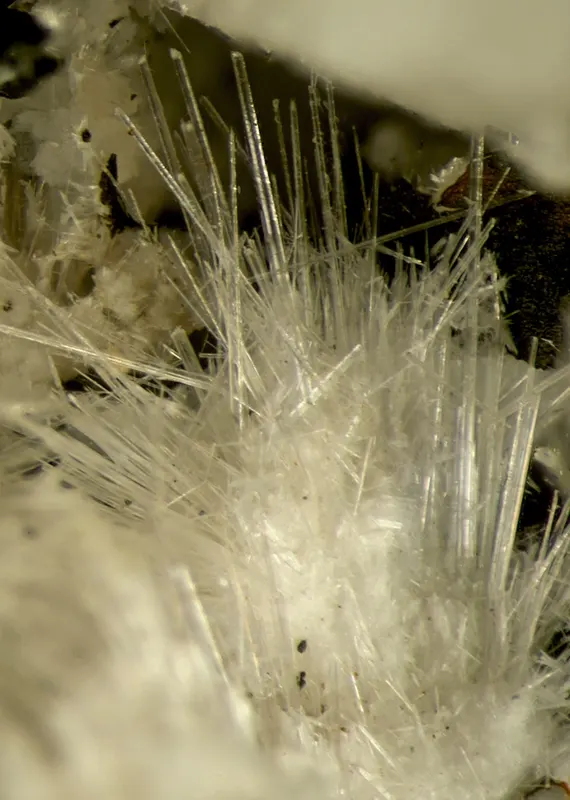

Acicular, fibrous crystals, with typical hexagonal cross-sections. Striated along [001], terminated by (001). In loosely packed spherical,fan-shaped or randomly matted aggregates.

Type-locality form

As acicular to fibrous crystals in loosely packed aggregates to 3mm in diameter and in bundles of hair-like matted fibers (Mont Saint Hilaire). As white, irregular bundles or partly fan-shaped aggregates of fibrous, acicular crystals (Nanna pegmatite).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2515.999399.975
45.03%
39YYttriumYttrium388.906266.718
30.03%
20CaCalciumCalcium340.078120.234
13.54%
1HHydrogenHydrogen311.00831.248
3.52%
15PPhosphorusPhosphorus130.97430.974
3.49%
13AlAluminiumAluminium126.98226.982
3.04%
6CCarbonCarbon112.01112.011
1.35%
Total888.142100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1999-033
  • Micheelseniet
  • Unnamed (MSH UK-32)

In other languages

German
IMA 1999-033 · Micheelsenit
Italian
Micheelsenite

Classification

Strunz
10th ed.

8.DO.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.30MicheelseniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2001McDonald, A. M., Petersen, O. V., Gault, R. A., Johnsen, O., Niedermayr, G., Brandstätter, F., Giester, G. (2001) Micheelsenite, (Ca,Y)3Al(PO3,OH,CO3)(CO3)(OH)6•12H2O, a new mineral from Mont Saint- Hilaire, Québec, Canada and the Nanna pegmatite, Narsaarsuup Qaava, South Greenland. Neues Jahrbuch für Mineralogie - Monatshefte, 2001 (8) 337-351
  2. 2001Mandarino, Joseph A. (2001) New minerals. The Canadian Mineralogist, 39 (6) 1751-1760 doi:10.2113/gscanmin.39.6.1751 DOI: 10.2113/gscanmin.39.6.1751
  3. 2002Jambor, J.L., Roberts, A.C. (2002) New mineral names. American Mineralogist: 87: 355-358.
  4. 2017(2017) Micheelsenite. Handbook of Mineralogy. Mineralogical Society of America
