Jouravskite

Ca3Mn4+(SO4)(CO3)(OH)6 · 12H2O
IMA status
  • Approved
IMA symbol
Jou
Discovered
1965
IMA approved
1965
Also known as
  • IMA1965-009

Where it forms, where it's found

Geological setting

Oxidized zone of a manganese deposit.

Type locality
Tachgagalt Mine
  1. Tansifte Caïdat
  2. Agdz Cercle
  3. Zagora Province
  4. Drâa-Tafilalet Region
  5. Morocco

30.7833°, -6.8500°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Bright yellow · greenish yellow to greenish orange · pink
Tenacity
brittle
Cleavage
Distinct/Good

On (1010)

Density
1.95 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.54 – 1.556
Surface relief
Moderate
Principal indices
nω 1.556 · nε 1.540
Pleochroism
Weak

Barely perceptible.

Notes

The interference colors are very abnormal, alternating shades of green and russet being observed in favorable sections up to the 17th order, rather than the ordinary colors.

Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#104
Cell parameters
a = 11.07129(14) Å · c = 10.62650(14) Å
Unit cell volume
1128.02 ų
Z
3
Morphology

Prism (1010) and dipyramid (1012).

Type-locality form

Greenish-yellow to greenish-orange spots 1-5 mm across in a dark mass of manganese minerals The individual grains are several tenths of a millimeter in diameter and rarely show crystal faces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2515.999399.975
61.58%
20CaCalciumCalcium340.078120.234
18.51%
25MnManganeseManganese154.93854.938
8.46%
16SSulfurSulfur132.06032.060
4.94%
1HHydrogenHydrogen301.00830.240
4.66%
6CCarbonCarbon112.01112.011
1.85%
Total649.458100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1965-009

In other languages

French
Jouravskite
German
IMA 1965-009 · Jouravskit
Spanish
jouravskita
Italian
Jouravskite
Chinese
硫碳钙锰石
Russian
журавскит

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15JouravskiteSpecies
Dana
8th ed.

32.04.04.03

  • 32Compound SulfatesClass
  • 32.04Hydrated Compound Sulfates containing Hydroxyl or HalogenType
  • 32.04.04Charlesite GroupGroup
  • 32.04.04.03JouravskiteSpecies
CIM

12.2.17

  • 12Carbonates with other anionsClass
  • 12.2Carbonates with sulphateGroup
  • 12.2.17JouravskiteSpecies

Group, growth & confusion

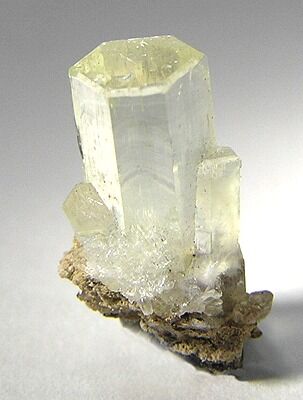

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1965Gaudefroy, Christophe, Permingeat, François (1965) La jouravskite, une nouvelle espèce minérale. Bulletin de Minéralogie, 88 (2) 254-262 doi:10.3406/bulmi.1965.5841 DOI: 10.3406/bulmi.1965.5841
  2. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (11-12) 2096-2111
  3. 1969Granger, M. M., Protas, J. (1969) Détermination et étude de la structure cristalline de la jourvaskite Ca3MnIV(SO4)(CO3)(OH)6.12H2O. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 25 (10) 1943-1951 doi:10.1107/s0567740869005000DOI: 10.1107/s0567740869005000
  4. 1972Gaudefroy, C., Dietrich, J.E., Orliac, M., Permingeat, F. (1972) Une variété aluminifère de jouravskite à Tachgagalt (Anti-Atlas, Maroc). Notes Serv. Geol. Maroc: 32(241): 19–24. (in French)
  5. 2005(2005) Jouravskite. Handbook of Mineralogy. Mineralogical Society of America
