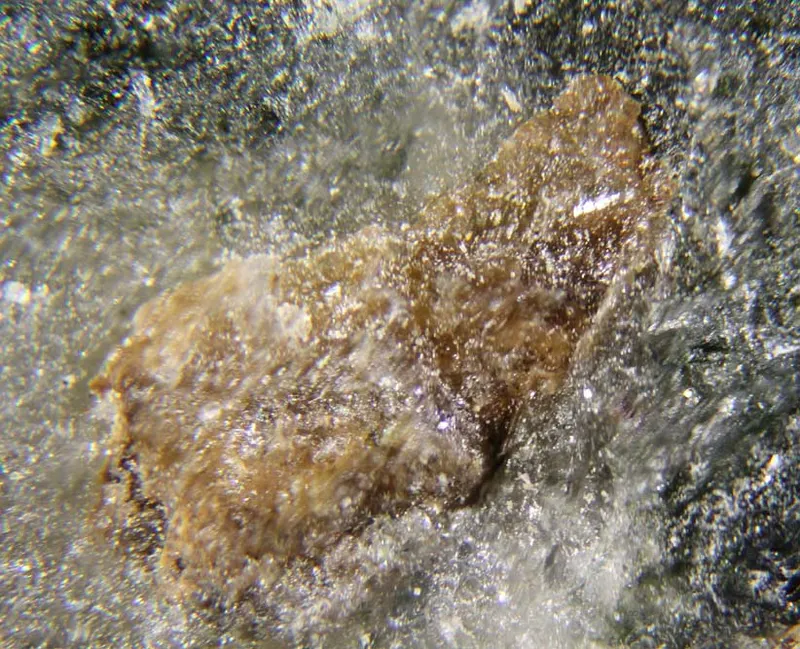

Burpalite

Na4Ca2Zr2(Si2O7)2F4
IMA status
  • Approved
IMA symbol
Brp
Discovered
1988
IMA approved
1988
Also known as
  • Burpaliet
  • IMA1988-036
  • Orthorhombic Låvenite

Where it forms, where it's found

Geological setting

A fenitized sandstone.

Type locality
Upper Trekhozernyi Stream
  1. Burpala alkaline massif
  2. Maigunda River
  3. Mama River Basin
  4. Buryatia
  5. Russia
4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless or yellowish
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
3.33 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 80°
Refractive index
1.627 – 1.639
Surface relief
Moderate
Principal indices
nα 1.627 · nβ 1.634 · nγ 1.639
Pleochroism
Non-pleochroic
Dispersion
r > v or r < v
Extinction
X = b; Y = c; Z = a.
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.11 Å · b = 10.44 Å · c = 7.25 Å
Cell angles
β = 90.03 °
Ratio a:b:c
1 : 1.033 : 0.717
Z
4
Parting
none
Type-locality form

Colourless platy crystals up to 1 x 3 x 5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
29.21%
40ZrZirconiumZirconium291.224182.448
23.79%
14SiSiliconSilicon428.085112.340
14.65%
11NaSodiumSodium422.99091.960
11.99%
20CaCalciumCalcium240.07880.156
10.45%
9FFluorineFluorine418.99875.992
9.91%
Total766.882100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Y
  • Nb
  • Fe
  • Mn

Synonyms

  • Burpaliet
  • IMA1988-036
  • Orthorhombic Låvenite

In other languages

German
Burpalit · IMA 1988-036
Italian
Burpalite

Classification

Strunz
10th ed.

9.BE.17

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.17BurpaliteSpecies
Dana
8th ed.

56.02.04.02

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.02BurpaliteSpecies
CIM

17.1.23

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.23BurpaliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1966Portnov, A, M., Simonov, V. L, Sinyugina, G. P., (1966): Rhombic låvenite,a new variety of låvenite. Doklady Akademii Nauk SSSR 166, 138-141. [As orthorombic låvenite]
  2. 1975Portnov, A. M., Sidorenko, G. A. (1975) New data on orthorhombic låvenite.Trudy Min.Muz.Akad.Nauk SSSR 24,203-206 [As orthorombic låvenite]
  3. 1990Merlino, S., Perchiazzi, N., Khomyakov, A.P., Pushcharovsky, D.Y., Kulikova, I.M., Kuzmin, V.I. (1990) Burpalite, a new mineral from Burpalinskii massif, north Transbajkal, USSR: its crystal structure and OD character. European Journal of Mineralogy: 2: 177-185.
  4. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  5. 2001(2001) Burpalite. Handbook of Mineralogy. Mineralogical Society of America
