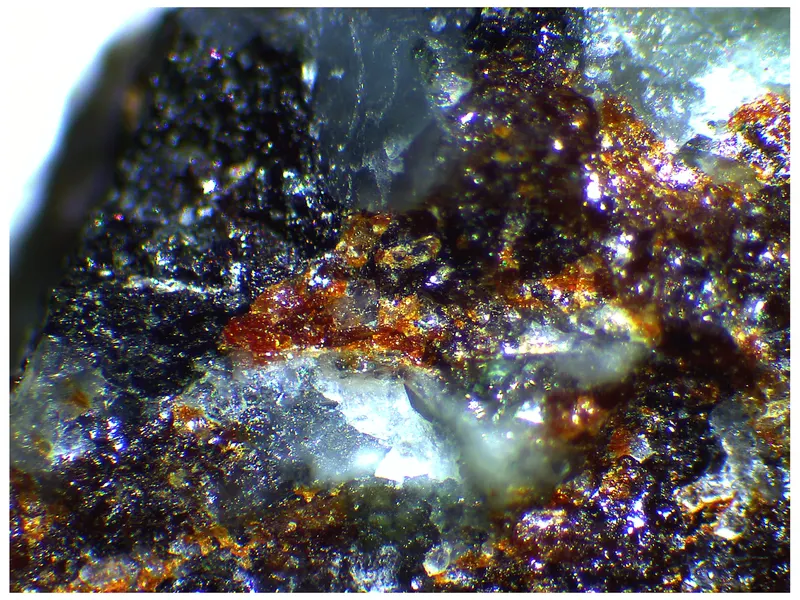

Pilanesbergite

Na2Ca2Fe2Ti2(Si2O7)2O2F2
IMA status
  • Approved
IMA symbol
Pbt
IMA approved
2023
Also known as
  • IMA2023-007
  • Pilanesbergiet

Where it forms, where it's found

Geological setting

green foyaite. Type material has been sampled from a natural exposure in a river gulley near the southern margin of the complex at 25.3463∘ S, 27.0658∘ E.

Type locality
Pilanesbergite type locality
  1. Ledig village area
  2. Pilanesberg Alkaline Ring Complex
  3. Moses Kotane Local Municipality
  4. Bojanala Platinum District Municipality
  5. North West
  6. South Africa

-25.3464°, 27.0656°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
brown-orange
Streak
brownish
Tenacity
brittle
Cleavage
None Observed
Density
3.47 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = ~90° · 2V calc = 88°
Refractive index
1.743 – 1.795
Surface relief
High
Principal indices
nα 1.743 · nβ 1.768 · nγ 1.795
Pleochroism
Strong

straw yellow to orange red, or - if oil immersion is used - light yellow (α) / yellowish orange (γ)

Michel-Lévy diagramhighlighted lineδ = 0.0520
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]520 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation520 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.7811(2) Å · b = 9.7836(1) Å · c = 7.0348(1) Å
Cell angles
β = 108.072(2) °
Ratio a:b:c
1 : 0.907 : 0.653
Z
2
Type-locality form

partly intergrown, with aegirine

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
34.60%
14SiSiliconSilicon428.085112.340
15.18%
26FeIronIron255.845111.690
15.10%
22TiTitaniumTitanium247.86795.734
12.94%
20CaCalciumCalcium240.07880.156
10.83%
11NaSodiumSodium222.99045.980
6.21%
9FFluorineFluorine218.99837.996
5.14%
Total739.880100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2023-007
  • Pilanesbergiet

In other languages

German
IMA 2023-007 · Pilanesbergit

Classification

Strunz
10th ed.

9.BE

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BEPilanesbergiteSpecies

Group, growth & confusion

Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. 2023Bosi, Ferdinando; Hatert, Frédéric; Pasero, Marco; Mills, Stuart J. (2023) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 73. European Journal of Mineralogy, 35 (3). 397-402 doi:10.5194/ejm-35-397-2023 DOI: 10.5194/ejm-35-397-2023
  2. 2024Dal Bo, F., Friis, H., Elburg, M. A., Hatert, F., Andersen, T. (2024) Pilanesbergite: a new rock-forming mineral occurring in nepheline syenite from the Pilanesberg Alkaline Complex, South Africa. European Journal of Mineralogy, 36 (1). 73-85 doi:10.5194/ejm-36-73-2024DOI: 10.5194/ejm-36-73-2024
