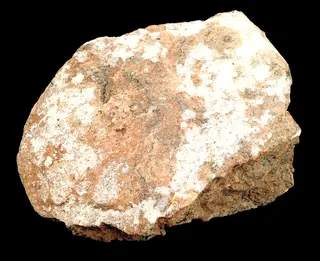

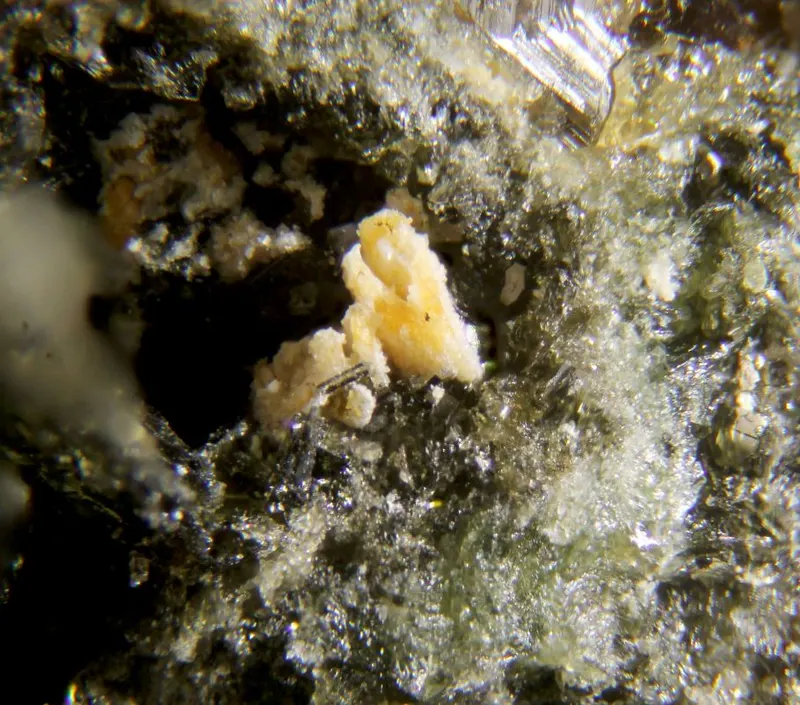

Cuspidine

Ca8(Si2O7)2F4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Csp
Discovered
1876
Also known as
  • Custerite

Where it forms, where it's found

Type locality
Mount Somma
  1. Metropolitan City of Naples
  2. Campania
  3. Italy
75recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colorless · tan · light brown · pale red.
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

good on (100), distinct on (110), also (122) poor

Fracture
Irregular/Uneven
Density
2.97 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 59 – 71° · 2V calc = 58 – 66°
Refractive index
1.586 – 1.606
Surface relief
Moderate
Principal indices
nα 1.586 – 1.594 · nβ 1.589 – 1.596 · nγ 1.598 – 1.606
Birefringence
0.012-0.017
Pleochroism
Non-pleochroic
Dispersion
r > v distinct
UV response
Franklin: SW = medium yellow to pale violet LW = strong yellow to pale violet
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.906 Å · b = 10.521 Å · c = 7.518 Å
Cell angles
β = 109.90 °
Ratio a:b:c
1 : 0.965 : 0.689
Z
4
Morphology

Colorless to tan masses, occasionally pale red. Crystals have a steep termination.

Twinning

Simple, lamellar, polysynthetic on (100).

Comment

Refinement data from Saburi et al (1977)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
20CaCalciumCalcium840.078320.624
43.74%
8OOxygenOxygen1415.999223.986
30.56%
14SiSiliconSilicon428.085112.340
15.33%
9FFluorineFluorine418.99875.992
10.37%
Total732.942100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mn
  • Na
  • K
  • Cl

Synonyms

  • Custerite

In other languages

French
Cuspidine
German
Cuspidin · Custerit
Italian
Cuspidina · Cuspidine · Custerite

Classification

Strunz
10th ed.

9.BE.17

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.17CuspidineSpecies
Dana
8th ed.

56.02.04.03

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.03CuspidineSpecies
CIM

17.1.15

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.15CuspidineSpecies

Group, growth & confusion

Often grow together
5 minerals

Literature, links & citation

Citations
  1. 1876Scacchi, A. (1876) Della cuspidina e del neocrisolito, nuovi minerali vesuviani. Rendiconto dell'Accademia delle Scienze Fisiche e Matematiche (sezione della Societa reale di Napoli), 15, 208-209.
  2. 1892Dana, Edward Salisbury; Dana, James Dwight (1892) A System of Mineralogy (6th ed.). John Wiley & Sons, Inc.
  3. 1914Umpleby, J. B.; Schaller, W. T.; Larsen, E. S. (1914) Custerit, ein neues kontaktmetamorphes Mineral. Zeitschrift für Kristallographie, 53 (1-6). 321-331 doi:10.1524/zkri.1914.53.1.321DOI: 10.1524/zkri.1914.53.1.321
  4. 1947Tilley, C. E. (1947) Cuspidine from dolomite contact skarns, Broadford, Skye. Mineralogical Magazine and Journal of the Mineralogical Society, 28 (197) 90-95 doi:10.1180/minmag.1947.028.197.03 DOI: 10.1180/minmag.1947.028.197.03
  5. 1958Van Valkenburg, A., Rynders, G. F. (1958) Synthetic cuspidine. American Mineralogist, 43 (11-12). 1195-1202
