Janhaugite

Na3Mn2+3Ti2(Si2O7)2(O,OH,F)4
IMA status
  • Approved
IMA symbol
Jhg
Discovered
1981
Also known as
  • IMA1981-018
  • Janhaugiet

Where it forms, where it's found

Geological setting

As a rock-forming constituent of ekerite (a Na-rich alkali feldspar granite), and in miarolitic cavities.

Type locality
Gjerdingselva
  1. Lunner
  2. Akershus
  3. Norway

60.1840°, 10.6481°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Reddish brown · golden-brown
Streak
Light brown
Tenacity
very brittle
Cleavage
Distinct/Good

On(010)

Density
3.6 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 84°
Refractive index
1.77 – 1.91
Surface relief
Very high
Principal indices
nα 1.77 · nβ 1.828 · nγ 1.91
Pleochroism
Weak

X = nearly colourless Y = beige

Dispersion
r > v distinct
Michel-Lévy diagramhighlighted lineδ = 0.1400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1400 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1400 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 10.66 Å · b = 9.78 Å · c = 13.93 Å
Cell angles
β = 107.82 °
Ratio a:b:c
1 : 0.917 : 1.307
Z
4
Morphology

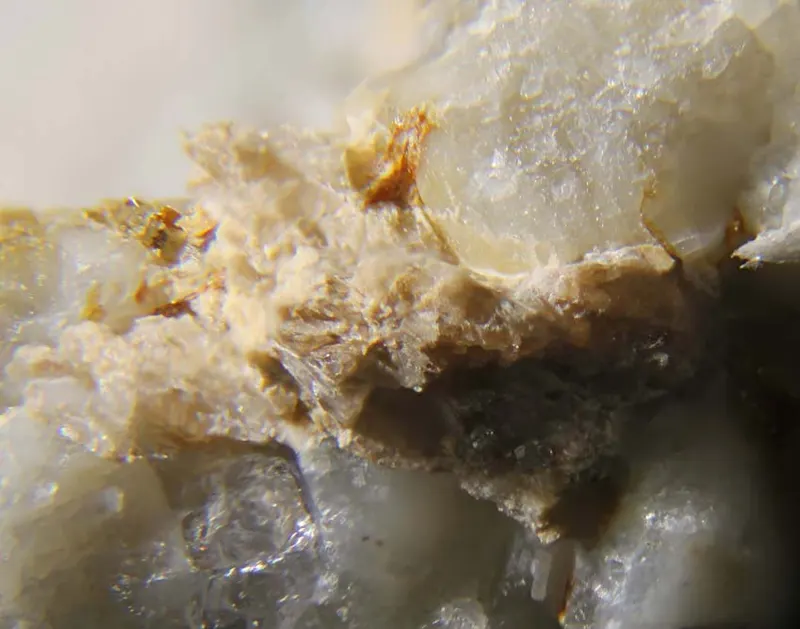

Subhedral grains and lamellar aggregates and sprays of prismatic crystals in miarolitic cavities. Crystals often curved and bent. Striated along [001].

Type-locality form

Subhedral grains in ekerite or as lamellar aggregates and sprays of prismatic crystals, up to 4mm long, in miarolitic cavities.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
40.28%
25MnManganeseManganese354.938164.814
18.86%
14SiSiliconSilicon428.085112.340
12.86%
22TiTitaniumTitanium247.86795.734
10.95%
9FFluorineFluorine418.99875.992
8.70%
11NaSodiumSodium322.99068.970
7.89%
1HHydrogenHydrogen41.0084.032
0.46%
Total873.860100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca
  • Fe
  • Zr
  • Nb
  • Ta
  • K
  • H2O

Synonyms

  • IMA1981-018
  • Janhaugiet

In other languages

German
IMA 1981-018 · Janhaugit
Italian
Janhaugite
Chinese
硅钛锰钠石
Russian
Янхаугит

Classification

Strunz
10th ed.

9.BE.17

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.17JanhaugiteSpecies
Dana
8th ed.

56.02.04.10

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.10JanhaugiteSpecies
CIM

14.9.37

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.37JanhaugiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1983Raade, Gunnar, Mladeck, Micael H. (1983) Janhaugite, Na3Mn3Ti2Si4O15(OH,F,O)3, a new mineral from Norway. American Mineralogist, 68 (11-12) 1216-1219
  2. 1985Annehed, H.; Fälth, L.; Raade, Gunnar (1985) The crystal structure of janhaugite, a sorosilicate of cuspidine family. Neues Jahrbuch für Mineralogie - Monatshefte, 1985. 7-18
  3. 2001(2001) Janhaugite. Handbook of Mineralogy. Mineralogical Society of America
