Låvenite

(Na,Ca)4(Mn2+,Fe2+)2(Zr,Ti,Nb)2(Si2O7)2(O,F)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Låv
Discovered
1875
Also known as
  • Låveniet
  • Lovenit
  • Lovenita
  • +1 more

Where it forms, where it's found

Geological setting

nepheline syenite pegmatite

Type locality
Låven
  1. Larvik Commune
  2. Vestfold
  3. Norway

58.9956°, 9.8175°

64recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colorless to brownish-yellow · brown · brownish-red · orange-brown.
Streak
Yellowish-white; pale brown
Tenacity
brittle
Cleavage
Distinct/Good

Good on (100)

Fracture
Irregular/Uneven
Density
3.4 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40 – 70° · 2V calc = 80°
Refractive index
1.67 – 1.72
Surface relief
High
Principal indices
nα 1.67 · nβ 1.69 · nγ 1.72
Pleochroism
Visible

X = colorless, pale yellow; Y = colorless, pale greenish yellow; Z = very pale yellow, orange to brownish yellow.

Dispersion
r < v perceptible
Extinction
Y = b; Z ∧ c = -20°.
Luminescence
(not reported)
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.83(1) Å · b = 9.98(1) Å · c = 7.174(5) Å
Cell angles
β = 108.1 °
Ratio a:b:c
1 : 0.922 : 0.662
Z
4
Morphology

Crystals prismatic parallel to [100] or tabular. Also acicular radial, fibrous, granular, or massive. Forms include (100), (110), (111), (101).

Twinning

Polysynthetic on (100).

Type-locality form

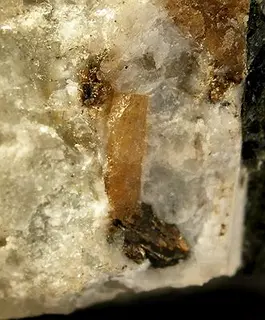

Chest-nut brown to yellow elongated, prismatic crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
20.37%
41NbNiobiumNiobium292.906185.812
13.14%
40ZrZirconiumZirconium291.224182.448
12.90%
20CaCalciumCalcium440.078160.312
11.34%
14SiSiliconSilicon428.085112.340
7.94%
26FeIronIron255.845111.690
7.90%
25MnManganeseManganese254.938109.876
7.77%
22TiTitaniumTitanium247.86795.734
6.77%
11NaSodiumSodium422.99091.960
6.50%
9FFluorineFluorine418.99875.992
5.37%
Total1414.146100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Låveniet
  • Lovenit
  • Lovenita
  • Lovenite

In other languages

German
Låvenit
Italian
Låvenite

Classification

Strunz
10th ed.

9.BE.17

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.17LåveniteSpecies
Dana
8th ed.

56.02.04.04

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.04LåveniteSpecies
CIM

14.10.27

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.27LåveniteSpecies

Group, growth & confusion

Often grow together
3 minerals
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1878Brögger, W. C. (1878) 1. Das Krystallsystem des Mosandrit, in XIX. Untersuchungen norwegischer Mineralien. Zeitschrift für Kristallographie - Crystalline Materials, 2 (1). 275-277
  2. 1885Brögger, W. C. (1885) Forelöbig meddelelse om to nye norske mineraler, Låvenit og Cappelenit. Geologiska Föreningen i Stockholm Förhandlingar, 7 (10) 598-600 doi:10.1080/11035898509443558DOI: 10.1080/11035898509443558
  3. 1940Kutukova, E.I. (1940) Titanolavenite of the Lovozero tundras. Trudy Ign. Akad. Nauk SSSR: 3l: 23-29.
  4. 1941Marble, J.P., Fleischer, M. (1941) New mineral names. American Mineralogist, 26 (2). 135-136
  5. 1960Simonov, V.I., Belov, N.V. (1960) Crystal structure of låvenite. Doklady Akademii Nauk SSSR: 130: 1333-1336.
