Churchite-(Y)

Y(PO4) · 2H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cuh-Y
Discovered
1865
Also known as
  • Churchiet-(Y)
  • Churchit
  • Churchita
  • +3 more

Where it forms, where it's found

Geological setting

Limonite deposit.

Type locality
Maffei Mine (Nitzelbuch Mine)
  1. Nitzlbuch (Nitzelbuch)
  2. Auerbach in der Oberpfalz
  3. Amberg-Sulzbach District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6794°, 11.6492°

83recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white · gray · yellow · colourless in transmitted light.
Tenacity
brittle
Cleavage
Perfect

On (101), perfect.

Fracture
Conchoidal
Density
3.14 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 10° · 2V calc = 60°
Refractive index
1.605 – 1.657
Surface relief
Moderate
Principal indices
nα 1.605 – 1.623 · nβ 1.608 – 1.631 · nγ 1.645 – 1.657
Birefringence
0.039
Pleochroism
Non-pleochroic
Dispersion
weak
Extinction
c^[001] ~ 30°-35°
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0390
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]390 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation390 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 5.578 Å · b = 15.006 Å · c = 6.275 Å
Cell angles
β = 117.83 °
Ratio a:b:c
1 : 2.690 : 1.125
Unit cell volume
464.49 ų
Z
4
Morphology

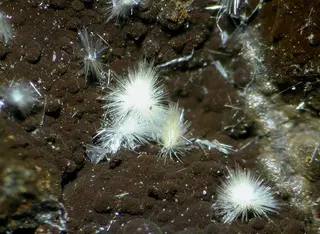

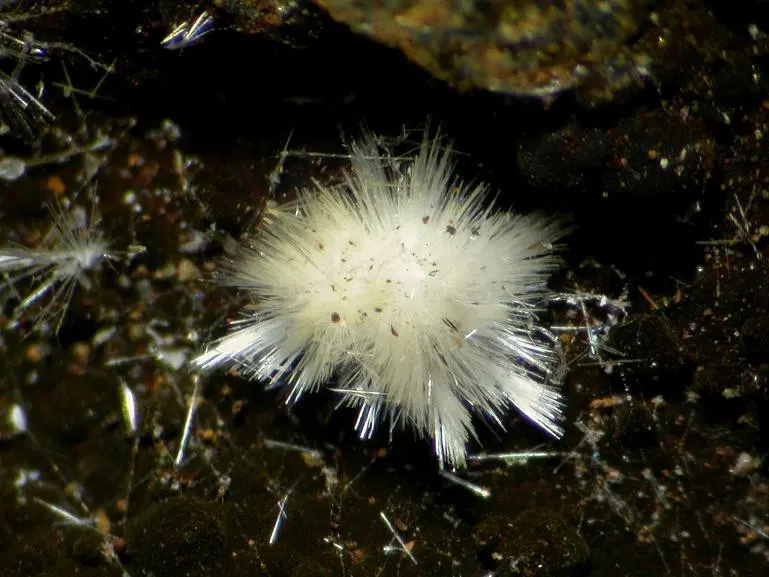

Crystals acicular to lath-shaped (gypsum-like), elongated [001] and flattened (010); form crusts and spherulites with a radial-fibrous structure.

Comment

Space group I2/a. Ivashkevich et al. (2013) give C2/c (different setting) and a = 6.15326(3), b = 14.99687(8), c = 5.57848(3) Å, β = 115.4319(4)°, V = 464.896(4) Å3.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
43.65%
39YYttriumYttrium188.90688.906
40.43%
15PPhosphorusPhosphorus130.97430.974
14.09%
1HHydrogenHydrogen41.0084.032
1.83%
Total219.906100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Churchiet-(Y)
  • Churchit
  • Churchita
  • Churchite
  • Rogersite (of Smith)
  • Weinschenkite (of Laubmann)

In other languages

German
Churchit- · Churchit-(Y)
Italian
Churchite- · Churchite-(Y)

Classification

Strunz
10th ed.

8.CJ.50

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJ.50Churchite-(Y)Species
Dana
8th ed.

40.04.06.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.04(AB)5(XO4)2·xH2OType
  • 40.04.06— unnamed intermediate level —Group
  • 40.04.06.01Churchite-(Y)Species
CIM

19.9.2

  • 19PhosphatesClass
  • 19.9Phosphates of rare earths and ScGroup
  • 19.9.2Churchite-(Y)Species

Group, growth & confusion

In the same group
3 members
Often grow together
5 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1865Church, Arthur Herbert (1865) Preliminary note on a new British mineral containing cerium. Chemical News and Journal of Physical Science, 12. 121
  2. 1865Williams, Charles H. Greville (1865) On the presence of didymium in churchite, Chemical News and Journal of Industrial Science, London: 12: 183.
  3. 1923Laubmann, Heinrich (1923) Geognost. Jahreshefte, Geol. Landes. München: 35: 193 (as Weinschenkite).
  4. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  5. 1935Heinrich (1935) Journal für praktische Chemie, Leipzig: 142: 1.
