Ferrosaponite

Ca0.3(Fe2+,Mg,Fe3+)3(Si,Al)4O10(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Fsap
IMA approved
2002
Also known as
  • Ferrosaponiet

Where it forms, where it's found

Geological setting

Basalt pillow lavas

Type locality
Levoberezhnoe Iceland spar deposit
  1. Nizhnyaya Tunguska River Basin
  2. Evenkiysky District
  3. Krasnoyarsk Krai
  4. Russia

64.1116°, 99.0115°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark green
Streak
green
Cleavage
Perfect

(001)

Fracture
Irregular/Uneven
Density
2.49 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = -5° · 2V calc = -7.5°
Refractive index
1.448 – 1.642
Surface relief
Moderate
Principal indices
nα 1.448 · nβ 1.641 · nγ 1.642
Pleochroism
Visible

Brown

Notes

Alpha index calculated from Gladstone-Dale

Michel-Lévy diagramhighlighted lineδ = 0.1940
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1940 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1940 nm
Order4th order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 5.365(2) Å · b = 9.337(4) Å · c = 14.65(2) Å
Cell angles
β = 94.9(1) °
Ratio a:b:c
1 : 1.740 : 2.731
Z
2

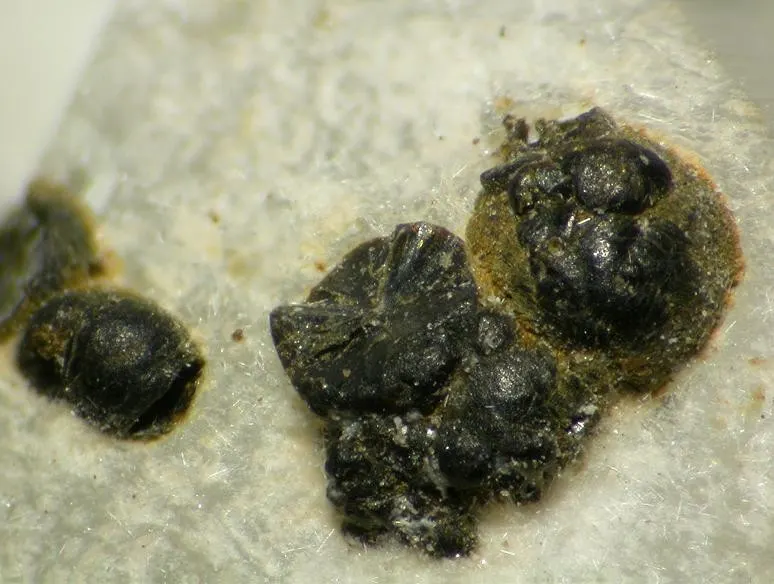

Type-locality form

spherulites, up to 2 тmm diameter, ог radiating/columnar aggregates included into calcite crystals.

Comment

Point Group: n.d.; Space Group: n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron655.845335.070
36.97%
8OOxygenOxygen1615.999255.984
28.24%
14SiSiliconSilicon428.085112.340
12.39%
13AlAluminiumAluminium426.982107.928
11.91%
12MgMagnesiumMagnesium324.30572.915
8.05%
20CaCalciumCalcium0.340.07812.023
1.33%
1HHydrogenHydrogen101.00810.080
1.11%
Total906.340100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferrosaponiet

In other languages

German
Ferrosaponit · IMA 2002-028
Italian
Ferrosaponite

Classification

Strunz
10th ed.

9.EC.45

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.45FerrosaponiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2003Chukanov, N.V., Pekov, I.V., Zadov, A.E., Chukanova, V.N., Möckel, S. (2003) Ferrosaponite Ca0.3(Fe2+,Mg,Fe3+)3·(Si,Al)4O10(OH)2·4H2O, the new trioctahedral smectite. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva: 132(2): 68-74.
  2. 2003Grice, J. D.; Ferraris, G. (2003) New minerals approved in 2002 and nomenclature modifications approved in 1998-2002 by the Commission on the New Minerals and Mineral Names, International Mineralogical Association. The Canadian Mineralogist, 41 (3). 795-802 doi:10.2113/gscanmin.41.3.795 DOI: 10.2113/gscanmin.41.3.795
  3. 2004Jambor, J.L., Roberts, A.C. (2004) New mineral names. American Mineralogist: 89: 467-471.
  4. 2021(2021) Ferrosaponite. Handbook of Mineralogy. Mineralogical Society of America
