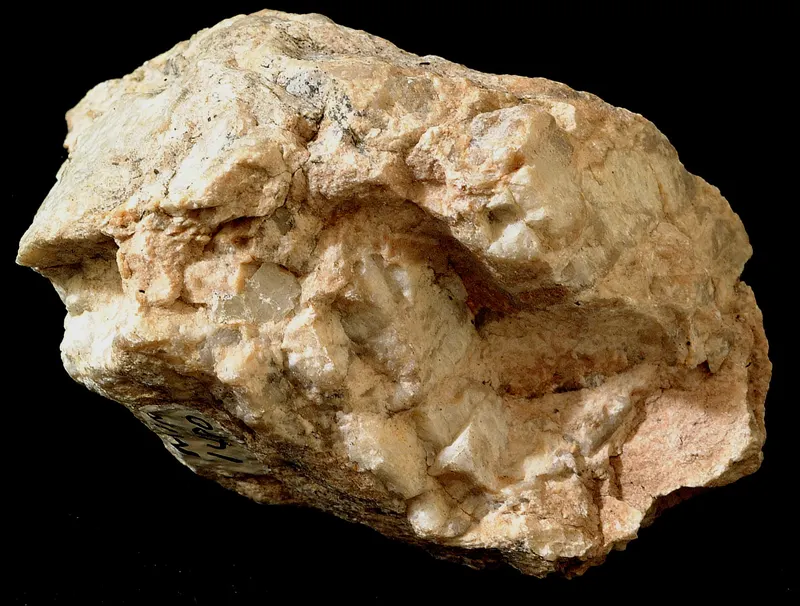

Beidellite

(Na,Ca)0.3Al2(Si,Al)4O10(OH)2 · nH2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bei
Discovered
1925
Also known as
  • Beidelliet

Where it forms, where it's found

Geological setting

A constituent of bentonitic clays; an alteration product in hydrothermal mineral deposits, especially porphyry Cu-Mo systems; in soils derived from mafic rocks.

Type locality
Beidell
  1. Crystal Hill Mining District
  2. Saguache County
  3. Colorado
  4. USA
89recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Waxy
Transparency
Translucent
Colour
White · reddish · brownish-grey
Cleavage
Perfect

(001)

Density
2 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 9 – 16° · 2V calc = 20°
Refractive index
1.494 – 1.533
Surface relief
Moderate
Principal indices
nα 1.494 – 1.503 · nβ 1.525 – 1.532 · nγ 1.526 – 1.533
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0310
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]310 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation310 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 5.17 Å · b = 8.97 Å · c = 17.57 Å
Cell angles
β = 90 °
Ratio a:b:c
1 : 1.735 : 3.398
Comment

Z = n.d.

Chemical composition

Impurities
  • Ti
  • K
  • Mg
  • Fe

Synonyms

  • Beidelliet

In other languages

French
beïdellite
German
Beidellit
Italian
Beidellite

Classification

Strunz
10th ed.

9.EC.40

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.40BeidelliteSpecies
Dana
8th ed.

71.03.1a.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.03Sheets of 6-membered rings with 2:1 claysType
  • 71.03.1a— unnamed intermediate level —Group
  • 71.03.1a.01BeidelliteSpecies
CIM

16.11.17

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.11Aluminosilicates of Ca and Mg with or without alkalisGroup
  • 16.11.17BeidelliteSpecies

Group, growth & confusion

Often grow together
5 minerals

Literature, links & citation

Citations
  1. 1925Larsen, E.S., Wherry, E.T. (1925) Beidellite, a new mineral name. Journal of the Washington Academy of Sciences: 15: 465-466.
  2. 1926Foshag, W.F. (1926) New mineral names. American Mineralogist: 11: 167-168.
  3. 1977Brindley, G. W., Sempels, R. E. (1977) Preparation and properties of some hydroxy-aluminium beidellites. Clay Minerals, 12 (3) 229-237 doi:10.1180/claymin.1977.012.3.05DOI: 10.1180/claymin.1977.012.3.05
  4. 1985Nadeau, P. H., Farmer, V. C., McHardy, W. J., Bain, D. C. (1985) Compositional variations of the Unterrupsroth beidellite. American Mineralogist, 70 (9-10) 1004-1010
  5. 1990Kloprogge, J. Theo (1990) Characterization of Synthetic Na-Beidellite. Clays and Clay Minerals, 38 (4) 409-414 doi:10.1346/ccmn.1990.0380410DOI: 10.1346/ccmn.1990.0380410
