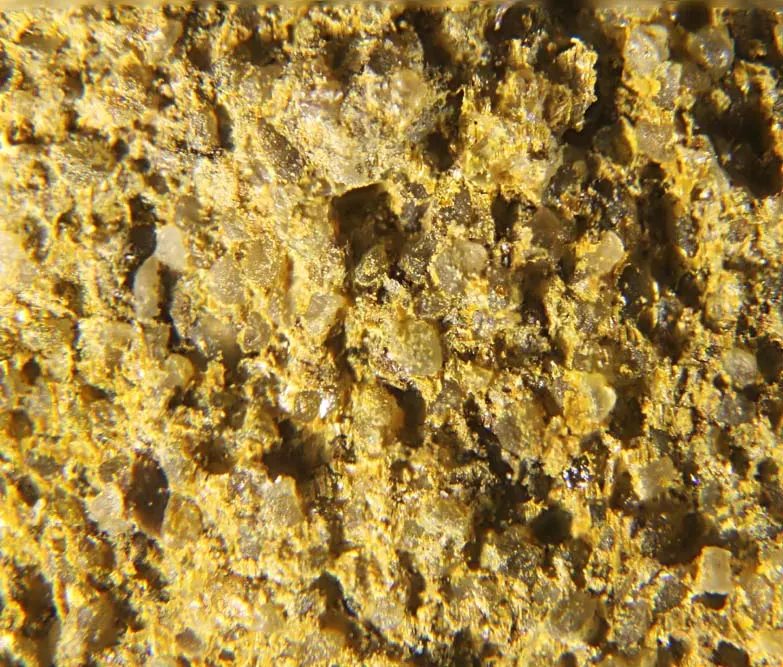

Fervanite

Fe3+4V5+4O16 · 5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fvn
Discovered
1931
Also known as
  • Fervaniet

Where it forms, where it's found

Geological setting

Sandstone

Type locality
Polar Mesa
  1. Gateway Mining District
  2. Grand County
  3. Utah
  4. USA
12recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Golden brown · yellow-brown · pale green
Cleavage
None Observed
Density
3.28 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 20° · 2V calc = 26°
Refractive index
2.186 – 2.224
Surface relief
Very high
Principal indices
nα 2.186 · nβ 2.222 · nγ 2.224
Dispersion
relatively strong
Extinction
Extinction slightly inclined to the length of the fibers.
Michel-Lévy diagramhighlighted lineδ = 0.0380
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]380 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation380 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.02 Å · c = 6.65 Å
Cell angles
β = 103.33 °
Morphology

Crystals fibrous, elongated [001] and flattened (010); parallel aggregates.

Type-locality form

Impregnations. Parallel fibers to 0.5 cm in length.

Comment

Crystal system "probable."

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2115.999335.979
43.45%
26FeIronIron455.845223.380
28.89%
23VVanadiumVanadium450.942203.768
26.35%
1HHydrogenHydrogen101.00810.080
1.31%
Total773.207100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fervaniet

In other languages

German
Fervanit
Italian
Fervanite
Russian
ферванит

Classification

Strunz
10th ed.

4.HG.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HGUnclassified V oxidesGroup
  • 4.HG.05FervaniteSpecies
Dana
8th ed.

47.03.04.01

  • 47Vanadium OxysaltsClass
  • 47.03Hydrated Normal Vanadium OxysaltsType
  • 47.03.04— unnamed intermediate level —Group
  • 47.03.04.01FervaniteSpecies
CIM

21.4.23

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.4Vanadates of U, Mn, Fe or NiGroup
  • 21.4.23FervaniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1931Hess, Frank L., Henderson, E. P. (1931) Fervanite, a hydrous ferric vanadate. American Mineralogist, 16 (7) 273-277
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1954Weeks, A.D., Thompson, M.E. (1954) Identification and occurrence of uranium and vanadium minerals from the Colorado Plateaus. U.S. Geological Survey Bulletin: 1009-B: 48–49.
  4. 1959Ross, Malcolm (1959) Mineralogical applications of electron diffraction. II. Studies of some vanadium minerals of the Colorado Plateau. American Mineralogist, 44 (3-4) 322-341
  5. 1970Cesbron, Fabien (1970) La schubnélite, nouveau vanadate de fer hydraté. Bulletin de Minéralogie, 93 (4) 470-475 doi:10.3406/bulmi.1970.6495 DOI: 10.3406/bulmi.1970.6495
