Tyuyamunite

Ca(UO2)2(VO4)2 · 5-8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tyu
Discovered
1912
Also known as
  • Calciocarnotite
  • Calciomotite
  • Calcium Carnotite
  • +11 more

Where it forms, where it's found

Geological setting

Carboniferous limestone

Oxidized zone Colorado Plateau uranium deposits

Type locality
Tyuya-Muyun Cu-V-U deposit
  1. Tyuya-Muyun Massif
  2. Aravan District
  3. Osh Region
  4. Kyrgyzstan

40.3571°, 72.5855°

638recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789101.5 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque

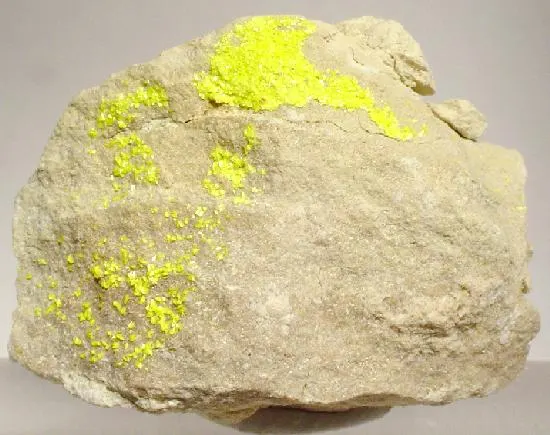

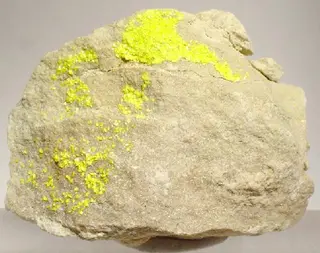

Colour
Canary yellow · lemon-yellow · greenish yellow (upon exposure to sunlight) · colourless to pale yellow in transmitted light.
Tenacity
sectile
Cleavage
Perfect

Perfect on (001), micaceous; distinct on (100) & (010).

Fracture
Micaceous
Density
3.57 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30 – 45° · 2V calc = 34°
Refractive index
1.675 – 1.895
Surface relief
High
Principal indices
nα 1.675 · nβ 1.860 – 1.870 · nγ 1.885 – 1.895
Birefringence
0.210
Pleochroism
Weak

X = Nearly colourless Y = Pale canary yellow Z = Canary yellow

Dispersion
none
Extinction
Parallel
UV response
Weakly to not fluorescent yellow-green in UV, although may be intergrown with bright fluorescent species
Michel-Lévy diagramhighlighted lineδ = 0.2100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2100 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2100 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#72
Cell parameters
a = 10.63 Å · b = 8.36 Å · c = 16.96 Å
Ratio a:b:c
1 : 0.786 : 1.595
Z
4
Morphology

Crystals elongated, platy, flattened on (001), elongated [010], with (010), (110), and several other forms; may be curved or scaly. Also occurs as fanlike or radial aggregates, as thin films, coatings, powdery, and compact to cryptocrystalline massive impregnations.

Type-locality form

Veinlet fillings, disseminated in the limestone or as fillings in karst caverns.

Comment

Pnan (Strunz and Nickel, 2001)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
52.89%
8OOxygenOxygen1715.999271.983
30.22%
23VVanadiumVanadium250.942101.884
11.32%
20CaCalciumCalcium140.07840.078
4.45%
1HHydrogenHydrogen101.00810.080
1.12%
Total900.083100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calciocarnotite
  • Calciomotite
  • Calcium Carnotite
  • Tĭujamunite
  • Tjuiamunite
  • Tjujamunit
  • Tjujamunita
  • Tjujamunite
  • Tujamunit
  • Tujamunite
  • Tuyamunit
  • Tuyamunita
  • Tuyamunite
  • Tyuyamuyunite

In other languages

French
Tyuyamunite
German
Tyuyamunit
Spanish
Tyuyamunita
Italian
tyuyamunite
Russian
Тюямунит

Classification

Strunz
10th ed.

4.HB.25

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HBUranyl SorovanodatesGroup
  • 4.HB.25TyuyamuniteSpecies
Dana
8th ed.

40.2a.26.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.26— unnamed intermediate level —Group
  • 40.2a.26.01TyuyamuniteSpecies
CIM

21.4.8

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.4Vanadates of U, Mn, Fe or NiGroup
  • 21.4.8TyuyamuniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Izvestiya Imperatorskoy Akademii Nauk series 6: 15: 945-946.
  2. 1912Nenadkevič, Konstantin Avtonomovich (1912) Tyuyamunite - a new mineral. Bulletin de l'Académie Impériale des Sciences de St.-Pétersbourg: 6: 945-946.
  3. 1913Hillebrand, W.F., Merwin, H.E. (1913) Two varieties of calciovolborthite (?) from eastern Utah. American Journal of Science: 35: 441-445. (as calciocarnotite)
  4. 1913Spencer, L. J. (1913) A (sixth) list of new mineral names. Mineralogical Magazine and Journal of the Mineralogical Society, 16 (77) 352-378 doi:10.1180/minmag.1913.016.77.09 DOI: 10.1180/minmag.1913.016.77.09
  5. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
