Jeankempite

Ca5(AsO4)2(AsO3OH)2(H2O)7
IMA status
  • Approved
IMA symbol
Jkp
Discovered
2018
IMA approved
2018
Also known as
  • IMA2018-090
  • Jeankempiet

Where it forms, where it's found

Geological setting

A secondary phase on "<m>mohawkite</m>" and calcite.

Type locality
Mohawk Mine
  1. Mohawk
  2. Allouez Township
  3. Keweenaw County
  4. Michigan
  5. USA

47.3081°, -88.3556°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless to white
Streak
White
Tenacity
brittle
Cleavage
Perfect

At least one, on (011)

Fracture
Irregular/Uneven
Density
2.92 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 72° · 2V calc = 71.0°
Refractive index
1.601 – 1.619
Surface relief
Moderate
Principal indices
nα 1.601 · nβ 1.607 · nγ 1.619
Pleochroism
Non-pleochroic
Dispersion
r < v, weak
UV response
none under LW or SWUV
Notes

Optical orientation: X ∧ c = 45°, Y ∧ b = 35°, Z ∧ a = 27°

Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 6.710(6) Å · b = 14.901(14) Å · c = 15.940(15) Å
Cell angles
α = 73.583(12) ° · β = 81.984(12) ° · γ = 82.754(12) °
Ratio a:b:c
1 : 2.221 : 2.376
Unit cell volume
1507 ų
Z
3
Morphology

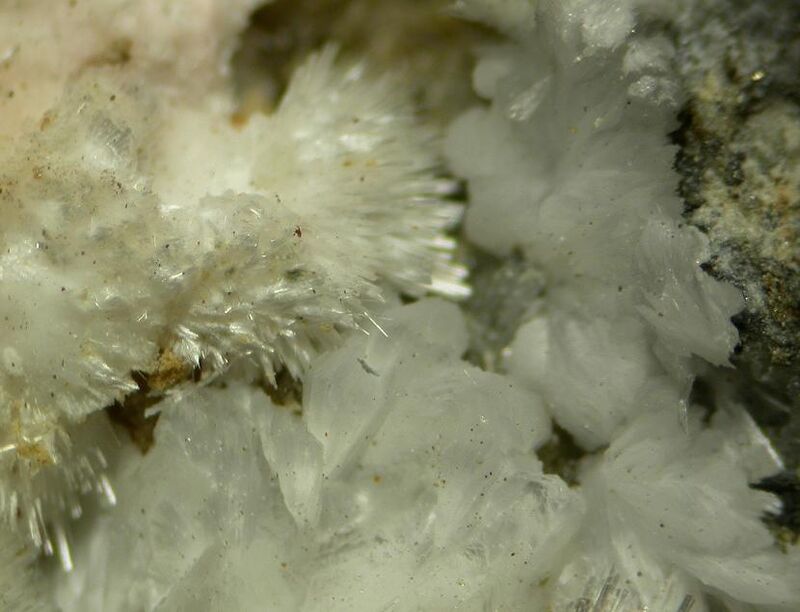

The mineral occurs as lamellar bundles of plates flattened on (011) and is visually indistinguishable from <m>guérinite</m>, forming topotactic intergrowths. It exibits one form, (011).

Type-locality form

Lamellar bundles of plates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
41.62%
33AsArsenicArsenic474.922299.688
33.90%
20CaCalciumCalcium540.078200.390
22.66%
1HHydrogenHydrogen161.00816.128
1.82%
Total884.183100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Na
  • S

Synonyms

  • IMA2018-090
  • Jeankempiet

In other languages

German
IMA 2018-090 · Jeankempit

Classification

Strunz
10th ed.

8.CJ

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJJeankempiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2018Hålenius, Ulf, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2018) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) NEWSLETTER 46. European Journal of Mineralogy, 30 (6) 1181-1189 doi:10.1127/ejm/2018/0030-2819DOI: 10.1127/ejm/2018/0030-2819
  2. 2020Olds, Travis A., Kampf, Anthony R., Dal Bo, Fabrice, Burns, Peter C., Guo, Xiaofeng, McCloy, John S. (2020) Jeankempite, Ca5(AsO4)2(AsO3OH)2(H2O)7, a new arsenate mineral from the Mohawk Mine, Keweenaw County, Michigan, USA. Mineralogical Magazine, 84 (6) 959-969 doi:10.1180/mgm.2020.92DOI: 10.1180/mgm.2020.92
  3. 2022(2022) Jeankempite. Handbook of Mineralogy. Mineralogical Society of America
