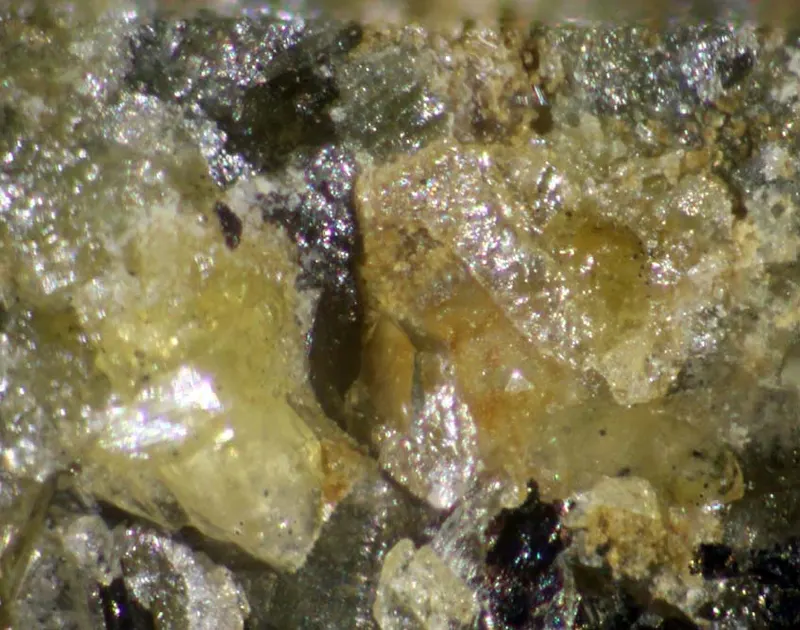

Malayaite

CaSnO(SiO4)
IMA status
  • Approved
IMA symbol
Mly
Discovered
1964
IMA approved
1964
Also known as
  • IMA1964-024
  • Malayaiet

Where it forms, where it's found

Geological setting

Hydrothermal alteration of a cassiterite-quartz assemblage.

Type locality
Sungei Lah (Sungei Loh) /Sungei Chenderiang
  1. Chenderiang
  2. Batang Padang District
  3. Perak
  4. Malaysia
42recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Pale creamy-yellow · deep orange-yellow · white · colorless
Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
4.3 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 84 – 86°
Refractive index
1.764 – 1.801
Surface relief
High
Principal indices
nα 1.764 – 1.765 · nβ 1.783 – 1.786 · nγ 1.798 – 1.801
Dispersion
none
UV response
very pale to very dull orange-yellow or yellow-green under SW UV. May be associated with much brighter yellow-fluorescing species such as wollastonite.
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 7.156(6) Å · b = 8.895(9) Å · c = 6.668(4) Å
Cell angles
β = 113.4(1) °
Ratio a:b:c
1 : 1.243 : 0.932
Z
4
Morphology

Crystals wedge-shaped, up to 3 cm; massive, as a coating on cassiterite

Type-locality form

Yellow coatings on cassiterite crystals.

Comment

Space Group: A2/a

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
50SnTinTin1118.710118.710
44.48%
8OOxygenOxygen515.99979.995
29.98%
20CaCalciumCalcium140.07840.078
15.02%
14SiSiliconSilicon128.08528.085
10.52%
Total266.868100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • IMA1964-024
  • Malayaiet

In other languages

German
IMA 1964-024 · Malayait
Italian
Malayaite

Classification

Strunz
10th ed.

9.AG.15

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AGNesosilicates with additional anions; cations in > [6] +- [6] coordinationGroup
  • 9.AG.15MalayaiteSpecies
Dana
8th ed.

52.04.03.02

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.04Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] and/or >[6] coordinationType
  • 52.04.03Titanite groupGroup
  • 52.04.03.02MalayaiteSpecies
CIM

14.12.2

  • 14Silicates not Containing AluminumClass
  • 14.12Silicates of SnGroup
  • 14.12.2MalayaiteSpecies

Group, growth & confusion

In the same group
4 members
Often grow together
4 minerals

Literature, links & citation

Citations
  1. 1960Ingham, F.T. and Bradford, E.F. (1960) The geology and mineral resources of the Kinta Valley, Perak Federation of Malaya. Geological Survey District Memoir No.9: 1-347, esp.105.
  2. 1960Ingham, F.T. and Bradford, E.F. (1960) The geology and mineral resources of the Kinta Valley, Perak Federation of Malaya. Geological Survery District Memoir No.9: 1-347, esp.105.
  3. 1961Fleischer, M. (1961) New mineral names. American Mineralogist, 46 (5-6). 765-770
  4. 1965Alexander, J. B., Fliter, B. H. (1965) A note on varlamoffite and associated minerals from the Batang Padang district, Perak, Malaya, Malaysia. Mineralogical Magazine and Journal of the Mineralogical Society, 35 (272) 622-627 doi:10.1180/minmag.1965.035.272.05 DOI: 10.1180/minmag.1965.035.272.05
  5. 1966Fleischer, M. (1966) New Mineral Names. American Mineralogist, 51 (9-10) 1546-1554
