Sturmanite

Ca6Fe3+2(SO4)2.5[B(OH)4](OH)12 · 25H2O
IMA status
  • Approved
IMA symbol
Strm
IMA approved
1981
Also known as
  • IMA1981-011
  • Sturmaniet

Where it forms, where it's found

Geological setting

Metamorphosed bedded manganese deposit.

Secondary mineral in cavities in metamorphosed manganese deposits.

Type locality
Black Rock Mine
  1. Black Rock
  2. Joe Morolong Local Municipality
  3. John Taolo Gaetsewe District Municipality
  4. Northern Cape
  5. South Africa

-27.1333°, 22.8333°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent

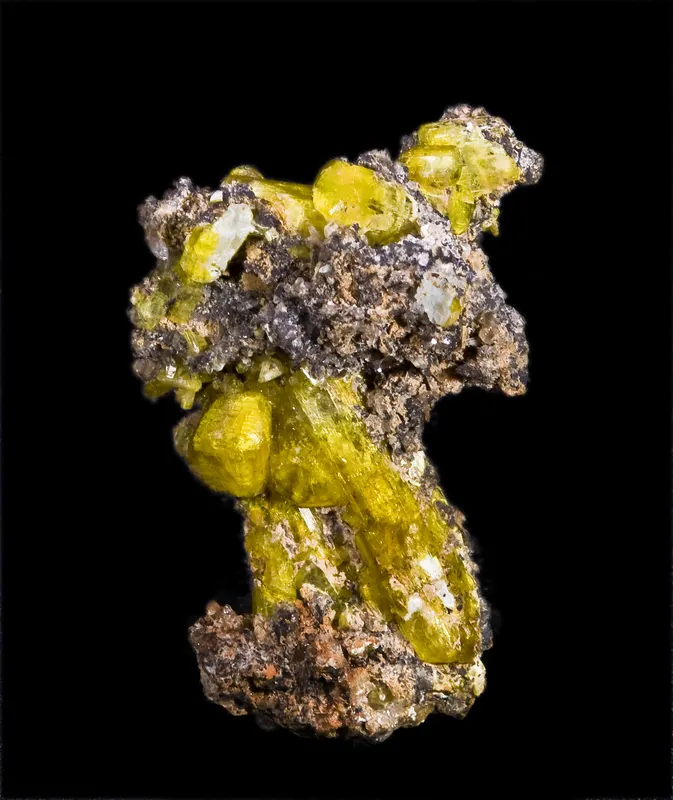

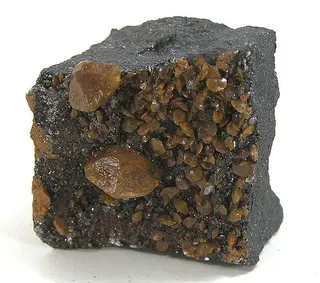

Colour
Bright yellow to amber
Streak
Pale yellow, greenish yellow, brownish orange (altered)
Tenacity
very brittle
Cleavage
Perfect

(1010)

Density
1.847 g/cm³

Optical

Optical type
Uniaxial (+/-)
Refractive index
1.497 – 1.505
Surface relief
Moderate
Principal indices
nω 1.499 – 1.5 · nε 1.497 – 1.505
Pleochroism
Weak

O= pale green E= pale yellowish green

UV response
Does not fluoresce
Michel-Lévy diagramhighlighted lineδ = 0.0015
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]15 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation15 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 11.16(3) Å · c = 21.79(9) Å
Z
2
Morphology

Dipyramidal tabular to elongated hexagonal crystals. Forms include {10.4} modified by {11.4}. Exhibits parallel growth, stacked parallel to (0001).

Twinning

Probably

Type-locality form

Flattened hexagonal dipyramidal crystals.

Comment

Pushcharovsky et al. (2004) give: a 11.188(9), c 21.91(7) Å, V 2375.1(5) Å3.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5115.999815.949
61.55%
20CaCalciumCalcium640.078240.468
18.14%
26FeIronIron255.845111.690
8.43%
16SSulfurSulfur2.532.06080.150
6.05%
1HHydrogenHydrogen661.00866.528
5.02%
5BBoronBoron110.81010.810
0.81%
Total1325.595100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-011
  • Sturmaniet

In other languages

French
Sturmanite
German
IMA 1981-010 · Sturmanit
Italian
Sturmanite

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15SturmaniteSpecies
Dana
8th ed.

32.04.04.02

  • 32Compound SulfatesClass
  • 32.04Hydrated Compound Sulfates containing Hydroxyl or HalogenType
  • 32.04.04Charlesite GroupGroup
  • 32.04.04.02SturmaniteSpecies
CIM

25.11.23

  • 25SulphatesClass
  • 25.11Sulphates of Fe and other metalsGroup
  • 25.11.23SturmaniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1983Peacor, D. R., Dunn, P. J., Duggan, M. (1983) Sturmanite, a ferric iron, boron analogue of ettringite. The Canadian Mineralogist, 21 (4) 705-709
  2. 1986Hochleitner, Rupert (1986) Sturmanit und Ettringit aus den Kalahari-Manganfeldern [Sturmanite and Ettringite from the Kalahari manganese fields]. Lapis, 11 (10) 19-24
  3. 1991Pohl, Demetrius, Bezing, K.L. Von, Dixon, Roger D., Cavallo, Greg (1991) The Kalahari Manganese Field [South Africa]: an Update. The Mineralogical Record, 22 (4) 279-297
  4. 1994Weiner, Karl Ludwig; Weiß, Stefan (1994) Steckbrief: Sturmanit [Profile: Sturmanite]. Lapis, 19 (2). 9-11
  5. 1995Cairncross, B., Dixon, R. (1995) Minerals of South Africa. Geological Society of South Africa. p.1-290.
