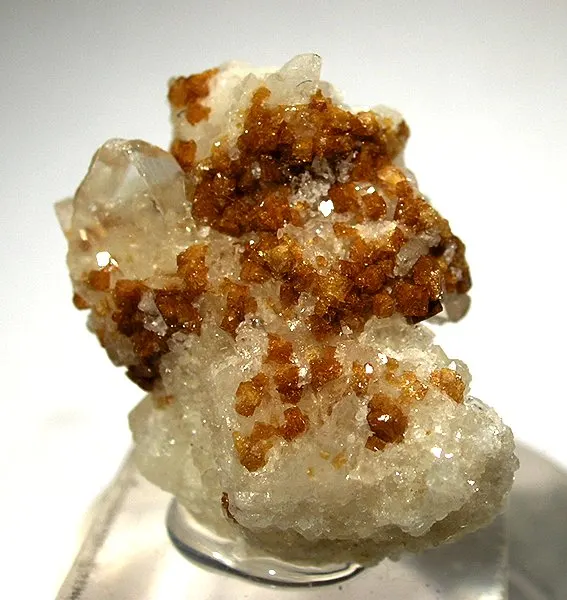

Svanbergite

SrAl3(SO4)(PO4)(OH)6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Svb
Discovered
1851
Also known as
  • Hartita
  • Harttite
  • Svanbergiet
  • +1 more

Where it forms, where it's found

Geological setting

Quartzite

Type locality
Hålsjöberg
  1. Torsby
  2. Värmland County
  3. Sweden

60.2822°, 13.2287°

123recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colourless · yellow · reddish brown to rose-pink · colourless in transmitted light
Streak
White
Cleavage
Distinct/Good

On (0001), distinct.

Density
3.2 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.631 – 1.649
Surface relief
Moderate
Principal indices
nω 1.631 – 1.635 · nε 1.646 – 1.649
Notes

Optical anomalies typical in minerals of the Beudantite Subgroup are reportedly absent in Svanbergite.

Michel-Lévy diagramhighlighted lineδ = 0.0145
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]145 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation145 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#99
Cell parameters
a = 6.97 Å · c = 16.59 Å
Z
3
Morphology

Crystals commonly rhombohedral (1011). May be pseudocubic, with (1012), (0221) and (0001). Other forms include (1010), (0115), (0112), (1017), (1014). Massive, granular.

Type-locality form

Euhedral crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
48.52%
38SrStrontiumStrontium187.62087.620
18.98%
13AlAluminiumAluminium326.98280.946
17.53%
16SSulfurSulfur132.06032.060
6.95%
15PPhosphorusPhosphorus130.97430.974
6.71%
1HHydrogenHydrogen61.0086.048
1.31%
Total461.634100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hartita
  • Harttite
  • Svanbergiet
  • Svanbergite (of Igelstrom)

In other languages

German
Svanbergit
Spanish
Svanbergita
Italian
Svanbergite
Russian
Сванбергит
Arabic
سفانبرغيت

Classification

Strunz
10th ed.

8.BL.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.05SvanbergiteSpecies
Dana
8th ed.

43.04.01.06

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.01Beudantite GroupGroup
  • 43.04.01.06SvanbergiteSpecies
CIM

22.3.9

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.3Phosphates, arsenates or vanadates with sulphatesGroup
  • 22.3.9SvanbergiteSpecies

Group, growth & confusion

Often grow together
4 minerals

Literature, links & citation

Citations
  1. 1854Igelström, L.J. (1854) Svanbergit, ein nytt mineral från Horrsjöberget, Ny socken, Elfdahls hërad, Wermland. Öfversigt af Kongl. vetenskaps-akademiens förhandlingar, 11. 156-159
  2. 1857Dauber (1857) Annalen der Physik, Halle, Leipzig: 100: 579.
  3. 1886Igelström, L. J. (1886) 3. Polyarsenit och hæmatostibiit, in Mineralogiska meddelanden. Geologiska Föreningen i Stockholm Förhandlingar, 8 (3). 179-181 doi:10.1080/11035898609442411DOI: 10.1080/11035898609442411
  4. 1906Hussak (1906) Mineralogische und petrographische Mitteilungen, Vienna: 25: 339 (as Harttite).
  5. 1911Schaller, W.T. (1911) The alunite-beudantite group. American Journal of Science: 32: 359-364.
