Andalusite

Al2SiO5
IMA status
  • Approved
  • Grandfathered
IMA symbol
And
Also known as
  • Andalousita
  • Apyre
  • Feldspath apyre
  • +1 more

Where it forms, where it's found

Geological setting

Low pressure and low-temperature metamorphic rocks.

A result of contact metamorphism of argillaceous sediments, also in regionally metamorphosed schists. Rare in granites and pegmatites, which however afford the largest crystals. Detrital in some sandstones.

Type locality
El Cardoso de la Sierra
  1. Guadalajara
  2. Castile-La Mancha
  3. Spain
1,247recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789106.5 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent · Opaque
Colour
Pink to red brown · occasionally yellow · green · white · gray rarely violet

in thin section, colorless to pink or green.

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good on (110) Poor on (100)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.13 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 73 – 86° · 2V calc = 80 – 84°
Refractive index
1.629 – 1.65
Surface relief
Moderate
Principal indices
nα 1.629 – 1.640 · nβ 1.633 – 1.644 · nγ 1.638 – 1.650
Birefringence
0.009
Pleochroism
Weak

X= reddish pink Y=Z= greenish yellow Clear colored crystals can show strong pleochroism (Faye and Harris, 1969)

Dispersion
r < v strong
UV response
Not fluorescent.
Notes

Iron substitution may dramatically increase RI and birefringence.

Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnnm
Cell parameters
a = 7.798(7) Å · b = 7.9031(10) Å · c = 5.5566(5) Å
Ratio a:b:c
1 : 1.013 : 0.713
Z
4
Morphology

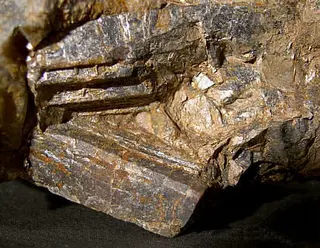

As euhedral crystals or columnar aggregates having nearly square cross sections, commonly elongated parallel to [001], to 20 cm. Crystals may be much interrupted due to intersection with outer minerals. Also fibrous, compact, massive.

Twinning

On (101) - rare

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
49.37%
13AlAluminiumAluminium226.98253.964
33.30%
14SiSiliconSilicon128.08528.085
17.33%
Total162.044100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Andalousita
  • Apyre
  • Feldspath apyre
  • Jamesonite (of Leman)

In other languages

French
12183-80-1 · Andalousite · Andalusite · Andaluzite · Crusite · Feldspath apyre · Micaphyllite · Stanzaïte
German
Andalusit
Spanish
andalucita · piedra de la cruz
Italian
andalusite
Portuguese
Andalousita · Andalusita · Andalusite · Andaluzita · andaluzite · Quiastolita
Japanese
紅柱石
Chinese
红柱石
Simplified Chinese
红柱石
Traditional Chinese
紅柱石
Russian
андалузит · Крестовый камень
Arabic
أندلسيت · الأندالوسيت · الأندلوسيت

Classification

Strunz
10th ed.

9.AF.10

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.10AndalusiteSpecies
Dana
8th ed.

52.02.2b.01

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.02Insular SiO4 Groups and O, OH, F, and H2O with cations in [4] and >[4] coordinationType
  • 52.02.2b— unnamed intermediate level —Group
  • 52.02.2b.01AndalusiteSpecies
CIM

15.1

  • 15Silicates of AluminumClass
  • 15.1— unnamed intermediate level —Group
  • 15.1AndalusiteSpecies

Group, growth & confusion

Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. 1609de Boodt, B. (1609) Gemmarum et lapidum historia. Typis Wechelianis apud Claudiam Marnium & heredes Ioannis Aubris, Hanoviae (Hanau, Alemania), 215. (as lapis crucifer (Latin ed.); as pierre qui porte une croix (French ed.))
  2. 1717Mercati, M. (1717) Metallotheca. Mariam Salvioni, Vaticano. 237-239. (as lapis crucifer)
  3. 1754Torrubia, José (1754) El Aparato para la Historia Natural Española..
  4. 1798Delamétherie, J.C. (1798) Sur une pierre de l´andalousie. Journal de Physique, de Chimie et d´Histoire Naturelle: 46: 386-387.
  5. 1834Jackson, C.T. (1834) An Account of the Chiastolite or Macle of Lancaster. Boston Journal of Natural History, 1, 55-62.
