Tatarinovite

Ca3Al(SO4)[B(OH)4](OH)6 · 12H2O
IMA status
  • Approved
IMA symbol
Tat
IMA approved
2015
Also known as
  • IMA2015-055
  • Tatarinoviet

Where it forms, where it's found

Geological setting

In cavities of rodingites

Type locality
Western wall
  1. Southern open pit
  2. Bazhenovskoye deposit
  3. Asbest
  4. Sverdlovsk Oblast
  5. Russia
1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Colorless
Cleavage
Perfect

on (100)

Density
1.79 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.475 – 1.496
Surface relief
Low
Principal indices
nω 1.475 · nε 1.496
Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#104
Cell parameters
a = 11.1110(4) Å · c = 10.6294(6) Å
Unit cell volume
1136.44 ų
Z
2
Morphology

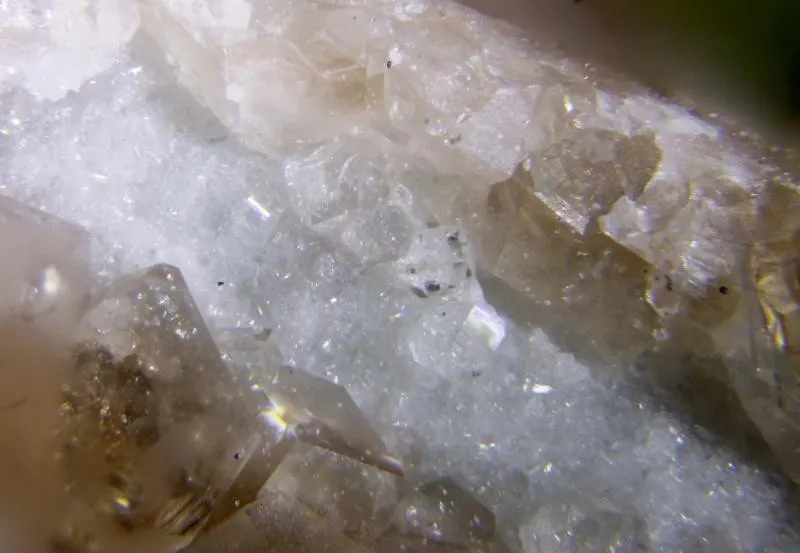

Bipyramidal crystals up to 1 mm across; Granular aggregates up to 5 mm.

Epitaxy

White granular aggregates up to 5 mm in size on grossular

Type-locality form

1) As colorless, bipyramidal crystals up to 1 mm across in cavities within massive diopside. 2) As white granular aggregates up to 5 mm in size on grossular.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
64.96%
20CaCalciumCalcium340.078120.234
18.78%
1HHydrogenHydrogen341.00834.272
5.35%
16SSulfurSulfur132.06032.060
5.01%
13AlAluminiumAluminium126.98226.982
4.21%
5BBoronBoron110.81010.810
1.69%
Total640.332100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2015-055
  • Tatarinoviet

In other languages

German
IMA 2015-055 · Tatarinovit

Classification

Strunz
10th ed.

7.DG.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DGWith large and medium-sized cations; with NO3, CO3, B(OH)4, SiO4 or IO3Group
  • 7.DG.15TatarinoviteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter No 27. Mineralogical Magazine, 79 (5). 1223-1230 doi:10.1180/minmag.2015.079.5.16DOI: 10.1180/minmag.2015.079.5.16
  2. 2016Chukanov, N.V., Kasatkin, A.V., Zubkova, N. V., Britvin, S.N., Pautov, L.A., Pekov, I.V., Varlamov, D.A., Bychkova, Ya. V., Loskutov, A.B., Novgorodova, E.A. (2016): Tatarinovite Са3Al(SO4)[В(ОH)4](ОH)6 · 12H2O, a new ettringite-group mineral from the Bazhenovskoe deposit, Middle Urals, Russia, and its crystal structure. Geology of Ore Deposits 58: 653-665
  3. 2018(2018) Tatarinovite. Handbook of Mineralogy. Mineralogical Society of America
