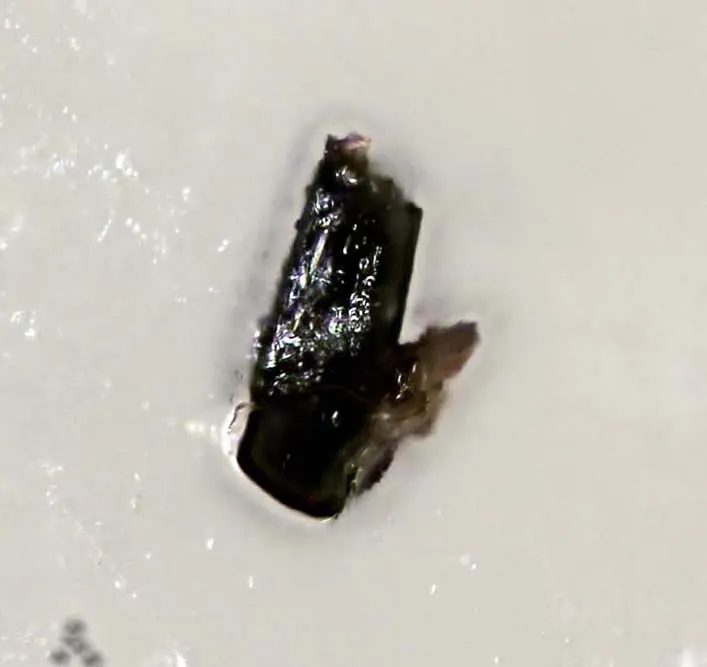

Tweddillite

CaSr(Mn3+2Al)[Si2O7][SiO4]O(OH)
IMA status
  • Approved
IMA symbol
Twe
Also known as
  • IMA2001-014
  • Manganipiemontite-(Sr)
  • Tweddilliet
  • +3 more

Where it forms, where it's found

Geological setting

In calcsilicate rocks formed as hydrothermal alteration of primary sedimentary manganese ore.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
vitreous
Colour
Deep red
Streak
Brownish red
Tenacity
brittle
Cleavage
Perfect

perfect after (001)

Fracture
Sub-Conchoidal
Density
3.84 g/cm³

Optical

Optical type
Biaxial (+)
Pleochroism
Strong

Within the (001) blades, the crystals appear dark red parallel to b and orange-yellow parallel to a. Perpendicular to (001) the blades appear magenta to red.

Luminescence
none
Notes

Average RI = 1.825.

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 8.932(5) Å · b = 5.698(4) Å · c = 10.310(5) Å
Cell angles
β = 114.56(4) °
Ratio a:b:c
1 : 0.638 : 1.154
Twinning

All crystals are (100) twinned.

Type-locality form

Dark-red ‘suns’ of very thin (~0.02 mm) radiating (001) blades, elongated parallel to [010] (up to 0.5 mm).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
37.29%
25MnManganeseManganese254.938109.876
19.70%
38SrStrontiumStrontium187.62087.620
15.71%
14SiSiliconSilicon328.08584.255
15.10%
20CaCalciumCalcium140.07840.078
7.18%
13AlAluminiumAluminium126.98226.982
4.84%
1HHydrogenHydrogen11.0081.008
0.18%
Total557.806100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • IMA2001-014
  • Manganipiemontite-(Sr)
  • Tweddilliet
  • Twedillit
  • Twedillita
  • Twedillite

In other languages

French
Tweddillite
German
IMA 2001-014 · Manganipiemontit-(Sr) · Tweddillit
Italian
Manganipiemontite-(Sr) · Tweddillite
Russian
Манганипьемонтит-(Sr) · Тведдилит

Classification

Strunz
10th ed.

9.BG.05

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.05TweddilliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2002Armbruster, T., Gnos, E., Dixon, R., Gutzmer, J., Hejny, C., Döbelin, N., Medenbach, O. (2002) Manganvesuvianite and tweddillite, two new Mn3+-silicate minerals from the Kalahari manganese fields, South Africa. Mineralogical Magazine, 66 (1) 137-150 doi:10.1180/0026461026610018DOI: 10.1180/0026461026610018
  2. 2003Jambor, J.L., Roberts, A.C. (2003) New mineral names. American Mineralogist: 88: 251-255.
  3. 2005Fukushima, H., Minakawa, T. & Nishio, D. (2005): Ba-rich tweddillite from the Kamisugai mine in the Sambagawa metamorphic belt, Shikoku, Japan. Ganseki Kobutsu Kagaku 34, 69-76. (in Japanese)
  4. 2006Armbruster, Thomas, Bonazzi, Paola, Akasaka, Masahide, Bermanec, Vladimir, Chopin, Christian, Gieré, Reto, Heuss-Assbichler, Soraya, Liebscher, Axel, Menchetti, Silvio, Pan, Yuanming, Pasero, Marco (2006) Recommended nomenclature of epidote-group minerals. European Journal of Mineralogy, 18 (5) 551-567 doi:10.1127/0935-1221/2006/0018-0551DOI: 10.1127/0935-1221/2006/0018-0551
  5. 2016Revheim, Olav, King, Vandall T. (2016) Epidote supergroup nomenclature: The names hancockite, niigataite and tweddillite reinstated. Mineralogical Magazine, 80 (5) 877-880 doi:10.1180/minmag.2016.080.029DOI: 10.1180/minmag.2016.080.029
