Aikinite

CuPbBiS3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Aik
Discovered
1843
Also known as
  • Acicular Bismuth
  • Acicular bismuth glance
  • Acicular-ore
  • +14 more

Where it forms, where it's found

Geological setting

In hydrothermal veins.

Type locality

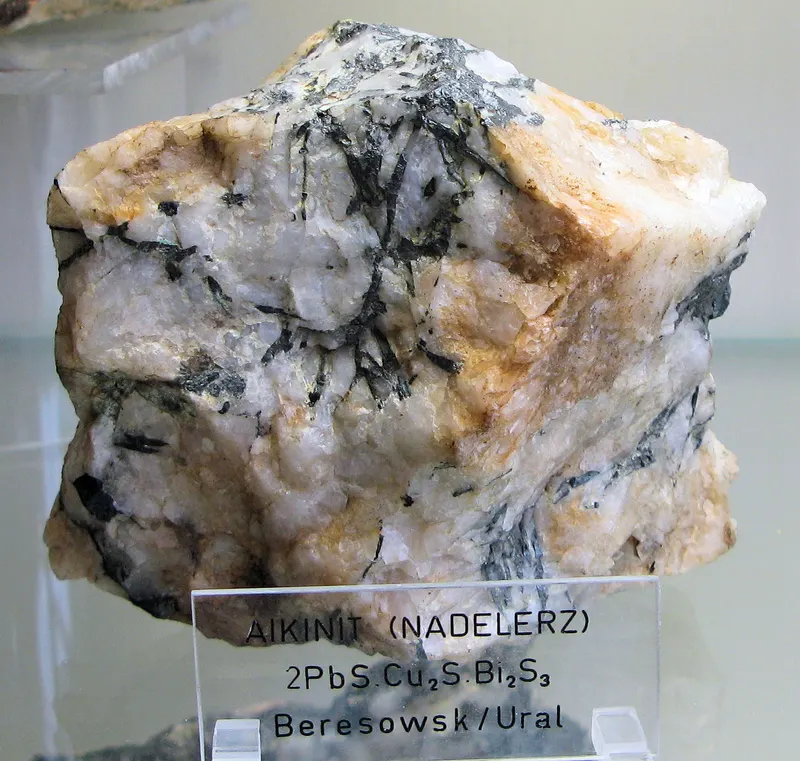

Berezovsk deposit
  1. Beryozovsky
  2. Sverdlovsk Oblast
  3. Russia

56.9000°, 60.7833°

373recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Blackish lead-grey

Tarnishes brown or copper red; sometimes has yellowish green coating. Cream-white in polished section.

Streak
grey-black
Cleavage
Poor/Indistinct

on (010)

Fracture
Irregular/Uneven
Density
7.06 g/cm³

Optical

Pleochroism
Visible

Parallel [001] cream-white perpendicular [001] either pure white or light brown.

Optical colour
Cream-white
Anisotropism
Distinct
Tropism
Anisotropic
Reflectance R%
(39.1, 43.5) 400, (39.2, 44.0) 420, (39.3, 44.5) 440, (39.4, 44.9) 460, (39.4, 45.3) 480, (39.5, 45.7) 500, (39.4, 46.0) 520, (39.3, 46.2) 540, (39.2, 46.4) 560, (39.0, 46.3) 580, (38.9, 46.1) 600, (38.9, 45.8) 620, (38.6, 45.4) 640, (38.3, 44.9) 660, (38.1, 44.4) 680, (37.9, 43.9) 700
Luminescence
None
Reflected-light panel
39.0 %anisotropic · dual curve
Specimen sRGB 222, 156, 86
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct
Reflected colour
Cream-white

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 11.638(3) Å · b = 4.039(1) Å · c = 11.319(2) Å
Ratio a:b:c
1 : 0.347 : 0.973
Z
4
Morphology

Prismatic to acicular and striated [001] to 1 m, striated parallel [001] , rarely radiating; also massive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth1208.980208.980
36.29%
82PbLeadLead1207.200207.200
35.98%
16SSulfurSulfur332.06096.180
16.70%
29CuCopperCopper163.54663.546
11.03%
Total575.906100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Acicular Bismuth
  • Acicular bismuth glance
  • Acicular-ore
  • Aciculit
  • Aciculita
  • Aciculite (of Nicol)
  • Aikenit
  • Aikenita
  • Aikenite
  • Aikinite (of Chapman)
  • Belonite (of Glocker)
  • Bismuth sulfuré plumbo-cuprifère
  • Cupreous Bismuth
  • Nadelerz
  • Patrinit
  • Patrinita
  • Patrinite

In other languages

French
Aïkinite
German
Aciculit · Aikinit · Nadelerz · Patrinit
Spanish
Aikinita
Italian
aikinite
Portuguese
aikinite
Japanese
アイキン鉱
Chinese
针硫铋铅矿
Simplified Chinese
针硫铋铅矿
Traditional Chinese
針硫鉍鉛礦
Russian
Айкинит

Classification

Strunz
10th ed.

2.HB.05a

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HBWith Cu, Ag, Fe, Sn and PbGroup
  • 2.HB.05aAikiniteSpecies
Dana
8th ed.

03.04.05.01

  • 03SulfosaltsClass
  • 03.04ø = 3Type
  • 03.04.05Aikinite Group (Orthorhombic containing Pb, Cu, Bi, & S)Group
  • 03.04.05.01AikiniteSpecies
CIM

5.7.9

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.7Sulpharsenites etc. of Pb and other metalsGroup
  • 5.7.9AikiniteSpecies

Group, growth & confusion

Often grow together
10 minerals

Literature, links & citation

Citations
  1. 1804Mohs (1804): 3: 726. (as nadelerz)
  2. 1809Hauy (1809): 105. (as bismuth sulfuré plumbo-cuprifère)
  3. 1843Chapman, E.J. (1843) Aikenite. in Practical Mineralogy, Hippolyte Bailliere, Publisher (London), 127.
  4. 1845Haidinger (1845): 568. (as patrinite)
  5. 1847Glocker (1847): 27. (as belonite)
