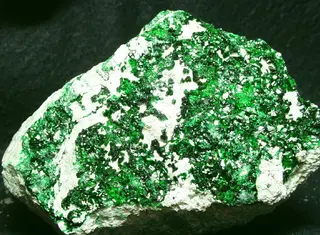

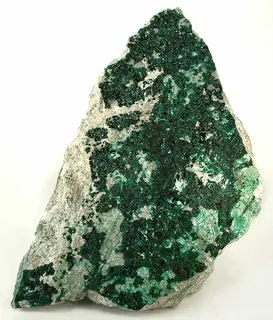

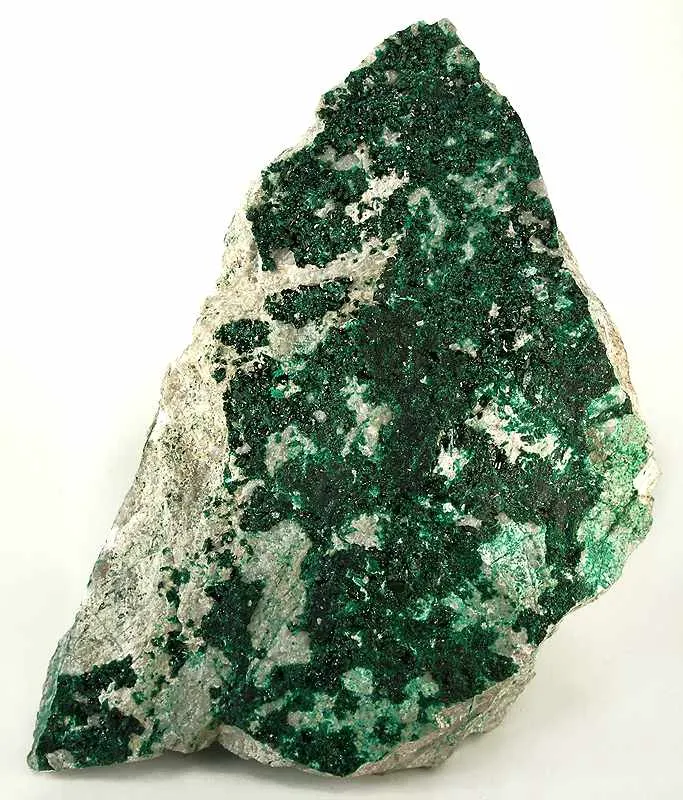

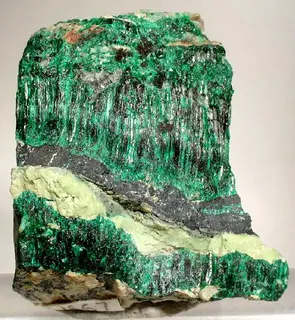

Antlerite

Cu2+3(SO4)(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Atl
Discovered
1889
Also known as
  • Antleritt
  • Arminit
  • Arminita
  • +7 more

Where it forms, where it's found

Geological setting

Oxidation zone of copper deposit.

In weathered zones of carbonate-poor copper deposits in arid regions.

Type locality
Antler Mine
  1. Pine Peak
  2. Hualapai Mining District
  3. Hualapai Mountains
  4. Mohave County
  5. Arizona
  6. USA

34.8825°, -113.9687°

277recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Emerald-green to blackish-green · also light green.
Streak
Pale green
Tenacity
brittle
Cleavage
Perfect

Perfect on (010), poor on (100).

Density
3.88 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 53° · 2V calc = 54°
Refractive index
1.726 – 1.789
Surface relief
High
Principal indices
nα 1.726 · nβ 1.738 · nγ 1.789
Pleochroism
Visible

X = Yellow-green; Y = Blue-green; Z = Green.

Dispersion
Very strong, r < v.
Extinction
Parallel. X = b; Y = a; Z = c.
Luminescence
None
Michel-Lévy diagramhighlighted lineδ = 0.0630
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]630 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation630 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.244(2) Å · b = 11.987(3) Å · c = 6.043(1) Å
Ratio a:b:c
1 : 1.454 : 0.733
Z
4
Morphology

Crystals commonly thick tabular (010); also equant or short prismatic [001]. Also as cross-fiber veinlets or friable interlaced aggregates of acicular or fibrous crystals; felt-like; granular.

Type-locality form

Soft lumps of ore of a light green color (no crystals).

Comment

Space Group: Pnam.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper363.546190.638
53.74%
8OOxygenOxygen815.999127.992
36.08%
16SSulfurSulfur132.06032.060
9.04%
1HHydrogenHydrogen41.0084.032
1.14%
Total354.722100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Antleritt
  • Arminit
  • Arminita
  • Arminite
  • Arnimit
  • Arnimita
  • Arnimite
  • Stelznerit
  • Stelznerita
  • Stelznerite

In other languages

French
Antlérite · Arminite · Cu3(OH)4SO4 · Hétérobrochantite · Stelznérite · Vernadskite
German
Antlerit
Spanish
antlerita
Italian
Antlerite

Classification

Strunz
10th ed.

7.BB.15

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BBWith medium-sized cationsGroup
  • 7.BB.15AntleriteSpecies
Dana
8th ed.

30.01.12.01

  • 30Anhydrous Sulfates Containing Hydroxyl or HalogenClass
  • 30.01(AB)m(XO4)pZq, where m:p>2:1Type
  • 30.01.12— unnamed intermediate level —Group
  • 30.01.12.01AntleriteSpecies
CIM

25.2.6

  • 25SulphatesClass
  • 25.2Sulphates of Cu and AgGroup
  • 25.2.6AntleriteSpecies

Group, growth & confusion

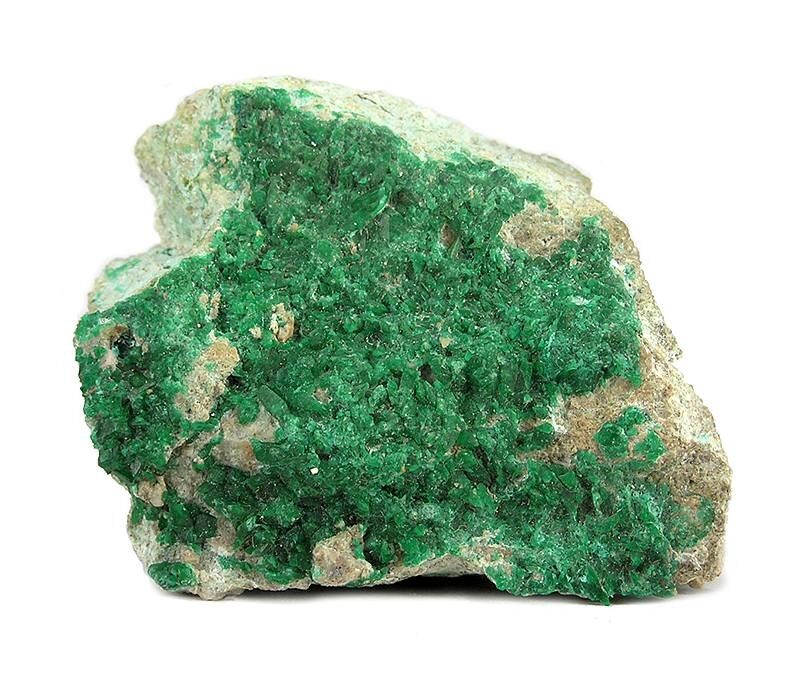

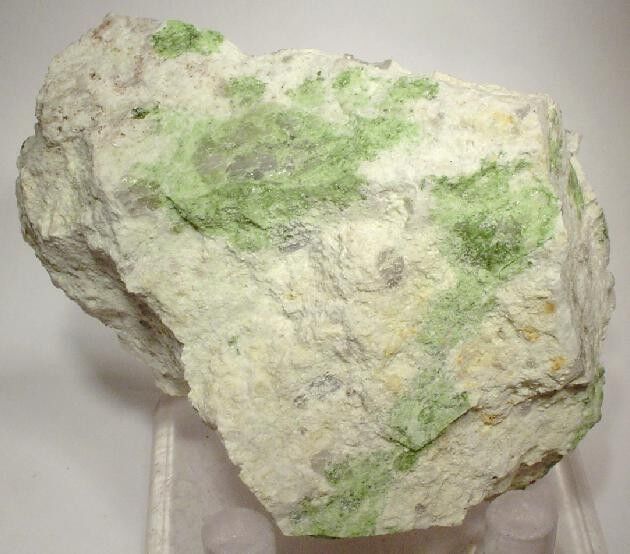

Often grow together
8 minerals

Literature, links & citation

Citations
  1. Die metallenen Grabplatten im Kreuzgang des Erfurter Doms: Bestandsaufnahme und Erarbeitung eines präventiven Konservierungskonzeptes (https://www.uni-bamberg.de/restwiss/forschung/interdisziplinaere-forschung/dom-erfurt-grabplatten/)
  2. 1886Weisbach (1886) Jahrbuch für das Berg- und Hüttenwesen im Königreiche Sachsen, Abhandlungen: 86. [as Arnimite]
  3. 1889Hillebrand, W.F. (1889) Mineralogical Notes. 6. A basic cupric sulphate. Bulletin of the United States Geological Survey: 55: 48-55.
  4. 1899Arzruni, A.; Thaddéeff, K. (1899) Neue Minerale aus Chile, ein neues Vorkommen von Utahit und ein neues Wismuthcarbonat von Schneeberg. Zeitschrift für Kristallographie, Mineralogie und Petrographie, 31 (1-6). 229-247 doi:10.1524/zkri.1899.31.1.229 DOI: 10.1524/zkri.1899.31.1.229
  5. 1911Schaller, W. T. (1911) Die Identität von Stelznerit und Antlerit. Zeitschrift für Kristallographie, 49 (1-6). 11-13 doi:10.1524/zkri.1911.49.1.11DOI: 10.1524/zkri.1911.49.1.11
