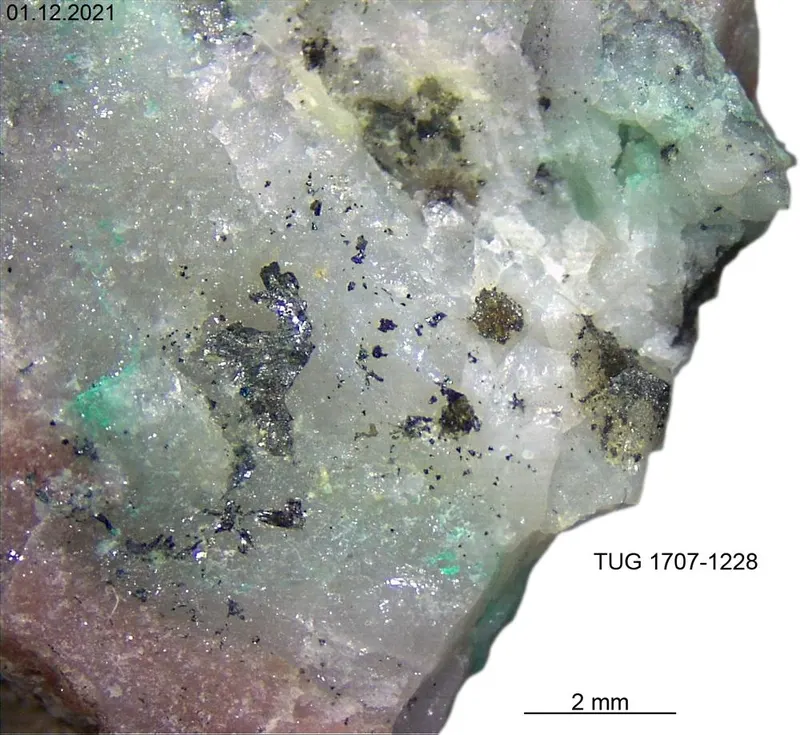

Chalcostibite

CuSbS2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ccsb
Discovered
1835
Also known as
  • Antimonial Copper
  • Chalcostibiet
  • Chalcostibit
  • +7 more

Where it forms, where it's found

Geological setting

Hydrothermal veins.

Type locality
Graf Jost-Christian Mine
  1. Wolfsberg
  2. Sangerhausen
  3. Mansfeld-Südharz
  4. Saxony-Anhalt
  5. Germany

51.5531°, 11.0861°

185recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Lead-gray · iron gray

Occasional blue or green tarnish.

Streak
black
Tenacity
brittle
Cleavage
Perfect

(010) perfect; (001) and (100) less so.

Fracture
Sub-Conchoidal
Density
4.9 g/cm³

Optical

Pleochroism
Weak

Feeble in air, somewhat stronger in oil.

Anisotropism
Observed
Tropism
Anisotropic
Reflectance R%
(39.2,44.2) 400, (39.3,45.3) 420, (39.4,46.2) 440, (39.4,47.0) 460, (39.5,47.4) 480, (39.5,47.0) 500, (39.1,46.2) 520, (38.2,44.4) 540, (37.0,42.2) 560, (36.1,40.7) 580, (35.3,39.7) 600, (34.7,38.9) 620, (34.4,38.3) 640, (34.2,38.0) 660, (33.8,37.9) 680, (33.4,37.9) 700
Reflected-light panel
37.0 %anisotropic · dual curve
Specimen sRGB 211, 153, 88
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Observed

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 6.02 Å · b = 14.49 Å · c = 3.79 Å
Ratio a:b:c
1 : 2.407 : 0.630
Z
4
Morphology

Blade-shaped crystals, flattened (010). Often elongated and striated [001]. Also massive.

Twinning

Twinning on (104), with compositional plane (104).

Comment

Non-standard space-group setting Pnam.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony1121.760121.760
48.81%
16SSulfurSulfur232.06064.120
25.71%
29CuCopperCopper163.54663.546
25.48%
Total249.426100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Pb
  • Fe
  • Zn

Synonyms

  • Antimonial Copper
  • Chalcostibiet
  • Chalcostibit
  • Chalcostibita
  • Guejarit
  • Guejarita
  • Guejarite
  • Kupfer-Antimonglanz
  • Rosite (of Huot)
  • Wolfsbergite (of Nicol)

In other languages

German
Chalkostibit · Kupferantimonglanz · Wolfsbergit
Spanish
Calcostibita
Italian
calcostibite · chalcostibite
Chinese
硫铜锑矿
Traditional Chinese
硫銅銻礦
Russian
халькостибит

Classification

Strunz
10th ed.

2.HA.05

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HAWith Cu, Ag, Fe (without Pb)Group
  • 2.HA.05ChalcostibiteSpecies
Dana
8th ed.

03.07.05.01

  • 03SulfosaltsClass
  • 03.07ø = 2Type
  • 03.07.05— unnamed intermediate level —Group
  • 03.07.05.01ChalcostibiteSpecies
CIM

5.1.4

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.1Sulpharsenites etc. of CuGroup
  • 5.1.4ChalcostibiteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
10 minerals

Literature, links & citation

Citations
  1. 1835Zincken (1835) Ueber den Kupfer‐Antimonglanz, eine neue Mineralgattung. Aus einem Schreiben an den Prof. H. Rose in Berlin vom Oberbergrathe Zincken zu Mägdesprung. Annalen der Physik, 111 (6). 357-361 doi:10.1002/andp.18351110611 DOI: 10.1002/andp.18351110611
  2. 1841Huot (1841) 1: 197.
  3. 1847Glocker, Ernst Friedrich (1847) Generum et specierum mineralium, secundum ordines naturales digestorum synopsis, omnium, quotquot adhuc reperta sunt, mineralium nomina complectens [A synopsis of the genera and species of minerals, according to their natural orders, including the names of all the minerals that have yet been discovered.]. Eduardus Anton. 348 pp.
  4. 1849Nicol, J. (1849) Manual of Mineralogy, Edinburgh. 484.
  5. 1879Cumenge, E. (1879) Note sur une nouvelle espèce minérale découverte dans le district de Guejar, Sierra-Nevada (Andalousie). Bulletin de la Société minéralogique de France: 2(7): 201-203. (as guejarite)
