Cylindrite

FePb3Sn4Sb2S14
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cy
Discovered
1893
Also known as
  • Cylindrit
  • Cylindrita
  • Kylindrite

Where it forms, where it's found

Geological setting

Tin bearing hydrothermal veins

Type locality
Santa Cruz Mine
  1. Poopó
  2. Poopó Province
  3. Oruro
  4. Bolivia

-18.3833°, -66.9667°

19recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Grey-black
Streak
Black
Tenacity
malleable
Cleavage
Perfect

On (100)

Density
5.43 g/cm³

Optical

Pleochroism
Weak

Extremely weak: Parallel to elongation gray-white, perpendicular to the elongation, darker gray-white. Stronger in oil.

Optical colour
Galena-white
Anisotropism
Distinct, gray to pale yellowish or brownish gray
Tropism
Anisotropic
Reflectance R%
(34.5,40.3) 400, (34.1,40.1) 440, (33.1,39.4) 480, (31.8,38.3) 520, (30.7,37.2) 560, (29.9,36.3) 600, (29.3,35.5) 640, (28.6,34.7) 680, (28.4,34.4) 700
Reflected-light panel
31.2 %anisotropic · dual curve
Specimen sRGB 196, 140, 82
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct, gray to pale yellowish or brownish gray
Reflected colour
Galena-white

Crystallography

Crystal system
Triclinic
Space group
#2
Morphology

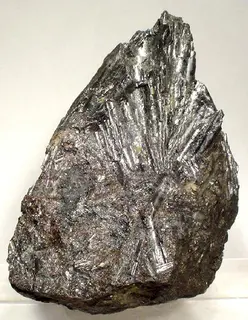

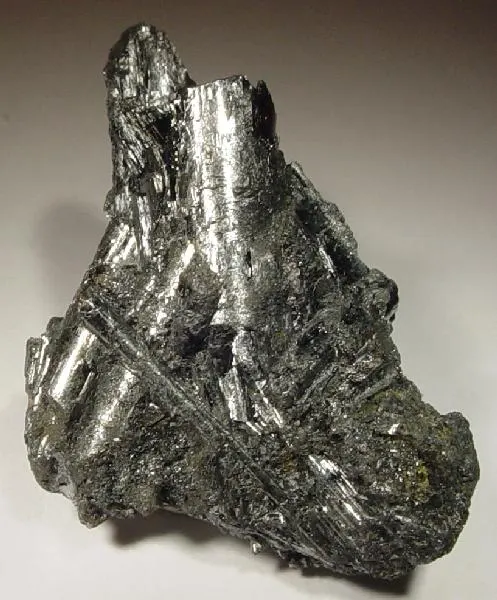

Massive. Cylindrical forms separating under pressure into smooth, concentric shells. Spherically-grouped aggregates.

Type-locality form

Crystals formed of shells of cylindrical layers.

Comment

Space Group: Two subcells are recognized, both P1 : the first (pseudotetragonal) has a = 11.733(5) b = 5.790(8) c = 5.810(5) α = 90.00(0.20)◦ β = 92.38(0.20)◦ γ = 93.87(0.20)◦ Z = 2 and the second (pseudohexagonal) has a = 11.709(5) b = 3.670(8) c = 6.320(5) α = 90.00(0.20)◦ β = 92.58(0.20)◦ γ = 90.85(0.20)◦ Z=2

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead3207.200621.600
33.70%
50SnTinTin4118.710474.840
25.74%
16SSulfurSulfur1432.060448.840
24.33%
51SbAntimonyAntimony2121.760243.520
13.20%
26FeIronIron155.84555.845
3.03%
Total1844.645100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ag

Synonyms

  • Cylindrit
  • Cylindrita
  • Kylindrite

In other languages

French
Cylindrite
German
Kylindrit
Spanish
Cilindrita
Italian
Cilindrite · Cylindrite
Chinese
圆柱锡矿
Simplified Chinese
圆柱锡矿
Traditional Chinese
圓柱錫礦
Russian
цилиндрит
Arabic
سيليندريت

Classification

Strunz
10th ed.

2.HF.25a

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HFWith SnS and PbS archetype structure unitsGroup
  • 2.HF.25aCylindriteSpecies
Dana
8th ed.

03.01.04.01

  • 03SulfosaltsClass
  • 03.01ø > 4Type
  • 03.01.04Cylindrite GroupGroup
  • 03.01.04.01CylindriteSpecies
CIM

6.1.20

  • 6Sulphosalts - Sulphostannates, Sulphogermanates,Sulpharsenates, Sulphantimonates, Sulphovanadates and SulphohalidesClass
  • 6.1Sulphostannates and other sulfides containing SnGroup
  • 6.1.20CylindriteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
9 minerals

Literature, links & citation

Citations
  1. 1893Frenzel, A. (1893) Ueber den kylindrit. Neues Jahrbuch für Mineralogie, Geologie und Palaontologie: 2: 125-128.

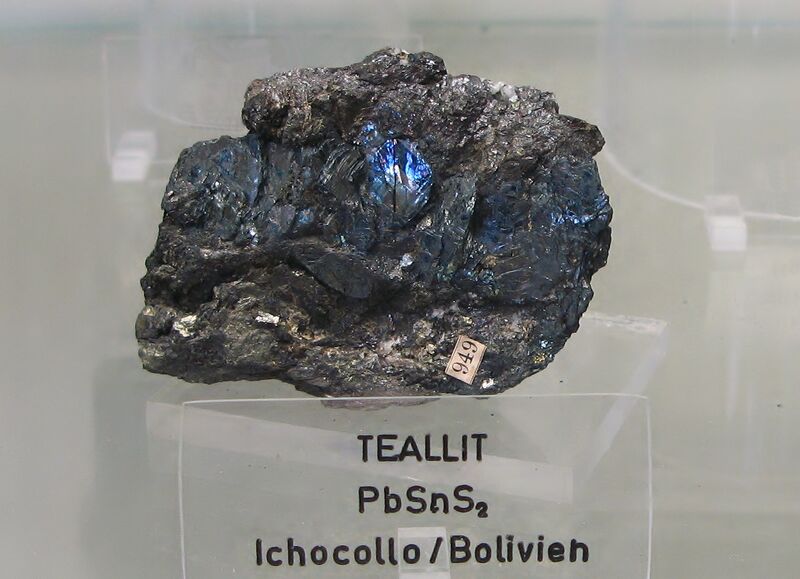

  2. 1904Prior, G. T. (1904) On Teallite, a new sulphostannite of lead from Bolivia ; and its relations to Franckeite and Cylindrite. Mineralogical Magazine and Journal of the Mineralogical Society, 14 (63) 21-27 doi:10.1180/minmag.1904.014.63.06 DOI: 10.1180/minmag.1904.014.63.06
  3. 1933Ahlfeld, F., Moritz, H. (1933) Beitrag zur Kenntnis der Sulfostannate Boliviens, Teil I und II. Neues Jahrbuch für Mineralogie, Abhandlungen 66: Beil Bd A: 179–212 (205).
  4. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  5. 1969Ramdohr, Paul (1969) The Ore Minerals and their Intergrowths. Pergamon Press, Oxford. 1174pp. doi:10.1016/c2013-0-10027-xDOI: 10.1016/c2013-0-10027-x
