Fluor-rewitzerite

[(H2O)K]Mn2(Al2Ti)(PO4)4(OF)(H2O)10·4H2O
IMA status
  • Approved
IMA symbol
Frwz
IMA approved
2023
Also known as
  • Fluor-rewitzeriet

Where it forms, where it's found

Geological setting

It occurs on the walls of vugs in corroded zwieselite as stubby prisms up to 0.1 mm long

Type locality
67 m level
  1. Hagendorf South Pegmatite
  2. Hagendorf
  3. Waidhaus
  4. Neustadt an der Waldnaab District
  5. Upper Palatinate
  6. Bavaria
  7. Germany

49.6503°, 12.4597°

2recorded occurrences
Source · OpenStreetMap

Physical

Colour
colorless
Density
2.42 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 78° · 2V calc = 78.6°
Refractive index
1.569 – 1.6021
Surface relief
Moderate
Principal indices
nα 1.569 · nβ 1.582 · nγ 1.6021
Dispersion
not observed
Michel-Lévy diagramhighlighted lineδ = 0.0331
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]331 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation331 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.407(1) Å · b = 20.514(2) Å · c = 12.193(1) Å
Cell angles
β = 90.49(2) °
Ratio a:b:c
1 : 1.971 : 1.172
Z
4
Morphology

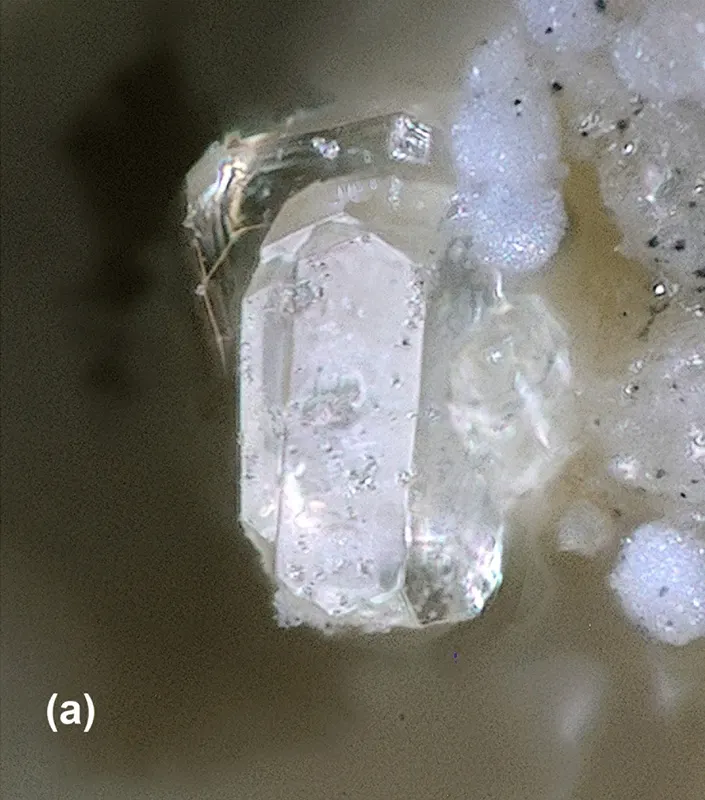

Stubby prisms up to 0.1 mm long. The crystals are flattened on (010); elongated along [100]; and show the forms (100), (010), (001), (111) and {11-1}

Twinning

Twinning occurs by 2-fold rotation about c

Type-locality form

altered light-brown zwieselite with many vugs up to 5 mm in diameter. The vugs are lined with tiny (<0.1 mm) colourless crystals of fluor-rewitzerite sitting directly on the corroded zwieselite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3215.999511.968
54.70%
15PPhosphorusPhosphorus430.974123.896
13.24%
25MnManganeseManganese254.938109.876
11.74%
13AlAluminiumAluminium226.98253.964
5.77%
22TiTitaniumTitanium147.86747.867
5.11%
19KPotassiumPotassium139.09839.098
4.18%
1HHydrogenHydrogen301.00830.240
3.23%
9FFluorineFluorine118.99818.998
2.03%
Total935.907100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Fluor-rewitzeriet

In other languages

German
Fluor-Rewitzerit
Italian
fluor-rewitzerite · IMA2023-115

Classification

Strunz
10th ed.

8.DG.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DGWith large and medium-sized cations, (OH, etc.):RO4< 0.5:1Group
  • 8.DG.05Fluor-rewitzeriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Grey, I. E., Hochleitner, R., Kampf, A. R., Boer, S., MacRae, C. M., Mumme, W. G., and Wilson, N. C.: Fluor-rewitzerite, IMA 2023-115, in: CNMNC Newsletter 78, Eur. J. Mineral., 36, https://doi.org/10.5194/ejm-36-361-2024, 2024.
  2. 2024Hochleitner, Rupert; Grey, Ian E.; Kampf, Anthony R.; Boer, Stephanie; MacRae, Colin M.; Mumme, William G.; Wilson, Nicholas C. (2024) Fluor-rewitzerite, [(H2O)K]Mn2(Al2Ti)(PO4)4(OF)(H2O)10 ⋅ 4H2O, a new paulkerrite-group mineral, from the Hagendorf-Süd pegmatite, Oberpfalz, Bavaria, Germany. European Journal of Mineralogy, 36 (3). 541-554 doi:10.5194/ejm-36-541-2024DOI: 10.5194/ejm-36-541-2024
