Rewitzerite

[K(H2O)]Mn2Al3(PO4)4(OH)2 · 14H2O
IMA status
  • Approved
  • Pending publication
IMA symbol
Rwz
IMA approved
2023
Also known as
  • IMA2023-005
  • Rewitzeriet

Where it forms, where it's found

Type locality
47 m level
  1. Hagendorf South Pegmatite
  2. Hagendorf
  3. Waidhaus
  4. Neustadt an der Waldnaab District
  5. Upper Palatinate
  6. Bavaria
  7. Germany

49.6503°, 12.4597°

2recorded occurrences
Source · OpenStreetMap

Physical

Colour
colorless
Density
2.33 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 25°
Refractive index
1.585 – 1.615
Surface relief
Moderate
Principal indices
nα 1.585 · nβ 1.586 · nγ 1.615
Pleochroism
Non-pleochroic
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.444(2) Å · b = 20.445(2) Å · c = 12.269(1) Å
Cell angles
β = 90.17(3) °
Ratio a:b:c
1 : 1.958 : 1.175
Z
4
Type-locality form

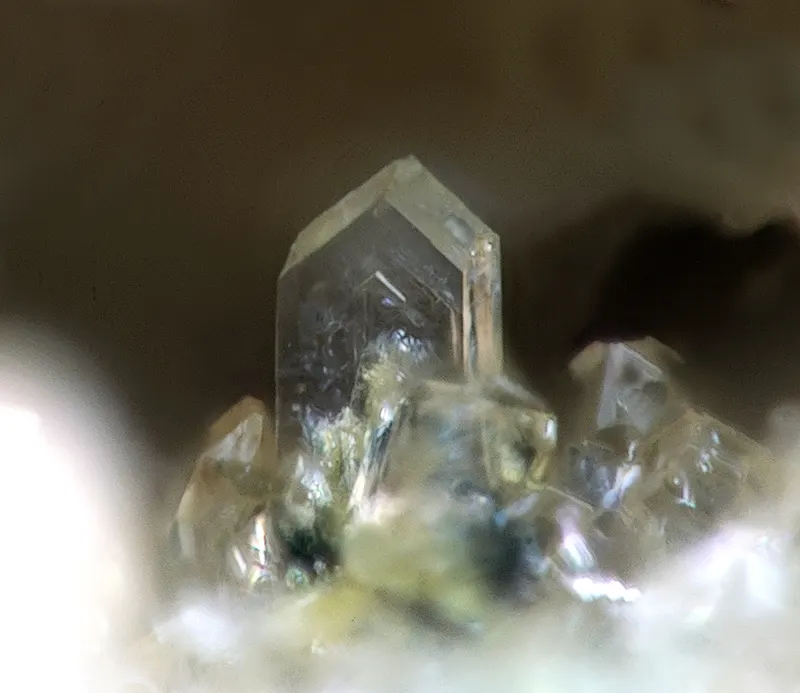

clusters of colourless elongated hexagonal-shaped prisms, up to 0.1 mm long

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3315.999527.967
57.76%
15PPhosphorusPhosphorus430.974123.896
13.55%
25MnManganeseManganese254.938109.876
12.02%
13AlAluminiumAluminium326.98280.946
8.86%
19KPotassiumPotassium139.09839.098
4.28%
1HHydrogenHydrogen321.00832.256
3.53%
Total914.039100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2023-005
  • Rewitzeriet

In other languages

German
IMA 2023-005 · Rewitzerit
Italian
IMA2023-005 · rewitzerite

Classification

Strunz
10th ed.

8.DG.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DGWith large and medium-sized cations, (OH, etc.):RO4< 0.5:1Group
  • 8.DG.05RewitzeriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2023Bosi, Ferdinando; Hatert, Frédéric; Pasero, Marco; Mills, Stuart J. (2023) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 73. European Journal of Mineralogy, 35 (3). 397-402 doi:10.5194/ejm-35-397-2023 DOI: 10.5194/ejm-35-397-2023
  2. 2023Grey, Ian E.; Hochleitner, Rupert; Kampf, Anthony R.; Boer, Stephanie; MacRae, Colin M.; Mumme, William G.; Keck, Erich (2023) Rewitzerite, K(H2O)Mn2(Al2Ti)(PO4)4[O(OH)](H2O)10⋅4H2O, a new monoclinic paulkerrite-group mineral, from the Hagendorf-Süd pegmatite, Oberpfalz, Bavaria, Germany. Mineralogical Magazine, 87 (6). 830-838 doi:10.1180/mgm.2023.55DOI: 10.1180/mgm.2023.55
