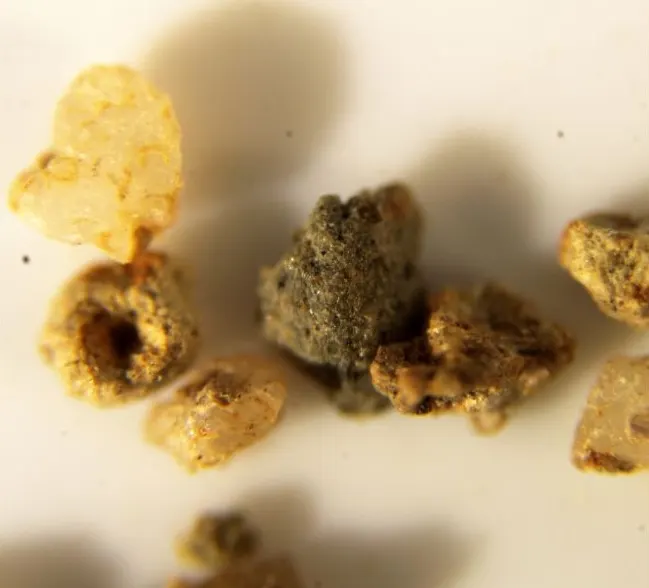

Mantienneite

KMg2Al2Ti(PO4)4(OH)3 · 15H2O
IMA status
  • Approved
IMA symbol
Mtin
Discovered
1984
Also known as
  • IMA1983-048
  • Mantienneiet

Where it forms, where it's found

Geological setting

Forming the matrix of sandy layers in lacustric shales

Type locality
Anloua
  1. Martap
  2. Vina
  3. Adamawa Region
  4. Cameroon

7.4167°, 13.4333°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Caramel brown to brownish honey brown
Streak
Pale brown with a rose tint.
Tenacity
brittle
Cleavage
Perfect

Perfect (001) and poor (010)

Density
2.31 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50 – 60°
Refractive index
1.564 – 1.598
Surface relief
Moderate
Principal indices
nα 1.564 · nγ 1.598
Pleochroism
Weak

X = colorless; Z = very pale yellow

Dispersion
r > v strong
Notes

Orientation: X = b; Y = c; Z = a

Michel-Lévy diagramhighlighted lineδ = 0.0340
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]340 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation340 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbca
Cell parameters
a = 10.409(2) Å · b = 20.330(4) Å · c = 12.312(2) Å
Ratio a:b:c
1 : 1.953 : 1.183
Z
4
Type-locality form

Radial fibrous spherules to 1 mm

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3415.999543.966
61.07%
15PPhosphorusPhosphorus430.974123.896
13.91%
13AlAluminiumAluminium226.98253.964
6.06%
12MgMagnesiumMagnesium224.30548.610
5.46%
22TiTitaniumTitanium147.86747.867
5.37%
19KPotassiumPotassium139.09839.098
4.39%
1HHydrogenHydrogen331.00833.264
3.74%
Total890.665100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1983-048
  • Mantienneiet

In other languages

German
IMA 1983-048 · Mantienneit
Italian
IMA1983-048 · mantienneite

Classification

Strunz
10th ed.

8.DH.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.35MantienneiteSpecies
Dana
8th ed.

42.11.21.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.21Paulkerrite GroupGroup
  • 42.11.21.02MantienneiteSpecies
CIM

19.8.23

  • 19PhosphatesClass
  • 19.8Phosphates of Al and other metalsGroup
  • 19.8.23MantienneiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1984Fransolet, André-Mathieu, Oustrière, Pascal, Fontan, François, Pillard, François (1984) La mantiennéite, une nouvelle espèce minérale du gisement de vivianite d'Anloua, Cameroun. Bulletin de Minéralogie, 107 (6) 737-744 doi:10.3406/bulmi.1984.7815DOI: 10.3406/bulmi.1984.7815
  2. 1985Dunn, Pete J., Ferraiolo, James A., Fleischer, Michael, Gobel, Volker, Grice, Joel D., Langley, Richard H., Shigley, James E., Vanko, David A., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (11-12) 1329-1335
  3. 1997Demartin, F., Gay, H. D., Gramaccioli, C. M., Pilati, T. (1997) Benyacarite, a new titanium-bearing phosphate mineral species from Cerro Blanco, Argentina. The Canadian Mineralogist, 35 (3) 707-712
  4. 2005(2005) Mantienneite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2006Sejkora, J., Škoda, R., Ondruš, P., Beran, P., Susser, C. (2006) Mineralogy of phosphate accumulations in the Huber stock, Krásno ore district, Slavkovský les area, Czech Republic. Journal of the Czech Geological Society, 51 (1-2) 103-147
