Pleysteinite

[(H2O)0.5K0.5]2Mn2Al3(PO4)4F2 · 4H2O
IMA status
  • Approved
IMA symbol
Pley
Also known as
  • IMA2022-077
  • Pleysteiniet

Where it forms, where it's found

Geological setting

Pegmatite. In altered zwieselite.

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

1recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Colorless
Cleavage

Readily cleaves into thin tablets parallel to (010) in a vacuum due to dehydration.

Density
2.34 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 80.7°
Refractive index
1.566 – 1.6
Surface relief
Moderate
Principal indices
nα 1.566 · nβ 1.580 · nγ 1.600
Pleochroism
Not Visible
Dispersion
None.
Extinction
X = c; Y = b; Z = a.
Michel-Lévy diagramhighlighted lineδ = 0.0340
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]340 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation340 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbca
Cell parameters
a = 10.4133(8) Å · b = 20.524(2) Å · c = 12.265(1) Å
Ratio a:b:c
1 : 1.971 : 1.178
Z
4
Morphology

Stubby prisms flattened on (010) with pyramidal terminations. Forms include (111), (100) and (001).

Type-locality form

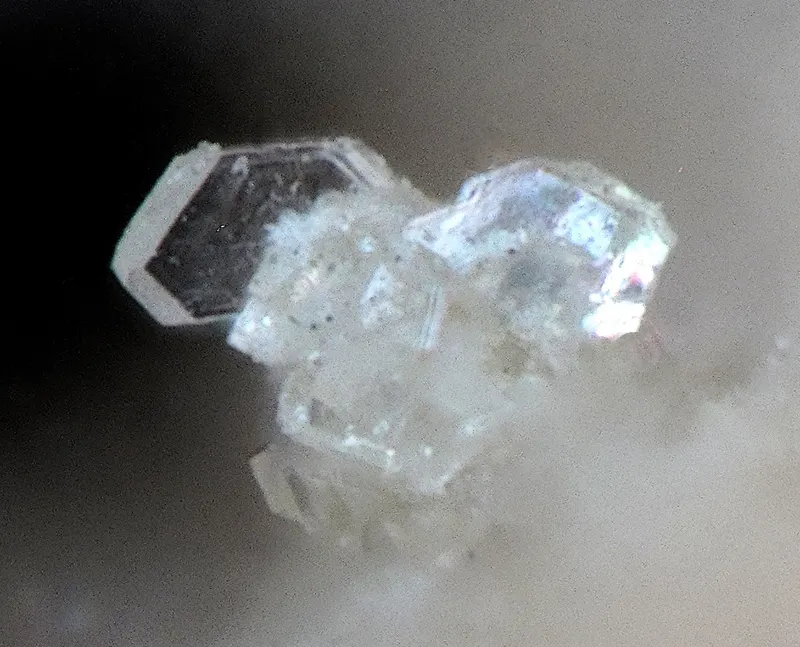

Isolated and small aggregates of colourless, stubby prisms that are typically 10 to 30 µm wide and up to 100 µm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2115.999335.979
45.53%
15PPhosphorusPhosphorus430.974123.896
16.79%
25MnManganeseManganese254.938109.876
14.89%
13AlAluminiumAluminium326.98280.946
10.97%
19KPotassiumPotassium139.09839.098
5.30%
9FFluorineFluorine218.99837.996
5.15%
1HHydrogenHydrogen101.00810.080
1.37%
Total737.871100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2022-077
  • Pleysteiniet

In other languages

German
IMA 2022-077 · Pleysteinit
Italian
IMA2022-077 · pleysteinite

Classification

Strunz
10th ed.

8.DG

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DGWith large and medium-sized cations, (OH, etc.):RO4< 0.5:1Group
  • 8.DGPleysteiniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 70. European Journal of Mineralogy, 34 (6) 591-601 doi:10.5194/ejm-34-591-2022 DOI: 10.5194/ejm-34-591-2022
  2. 2023Grey, Ian E., Hochleitner, Rupert, Rewitzer, Christian, Kampf, Anthony R., MacRae, Colin M., Gable, Robert W., Mumme, William G., Keck, Erich, Davidson, Cameron (2023) Pleysteinite, [(H2O)0.5K0.5]2Mn2Al3(PO4)4F2(H2O)10⋅4H2O, the Al analogue of benyacarite, from the Hagendorf-Süd pegmatite, Oberpfalz, Bavaria, Germany. European Journal of Mineralogy, 35 (2) 189-197 doi:10.5194/ejm-35-189-2023 DOI: 10.5194/ejm-35-189-2023
  3. 2024Rewitzer, Christian, Hochleitner, Rupert, Grey, Ian E., Macrae, Colin M., Mumme, William G., Boer, Stephanie, Kampf, Anthony R., Gable, Robert W. (2024) Monoclinic Pleysteinite and Hochleitnerite from the Hagendorf-Süd Pegmatite: Synchrotron Microfocus Diffraction Studies on Twinned Members of Paulkerrite-Group Minerals. The Canadian Journal of Mineralogy and Petrology, 62 (3) 513-527 doi:10.3749/2400003DOI: 10.3749/2400003
