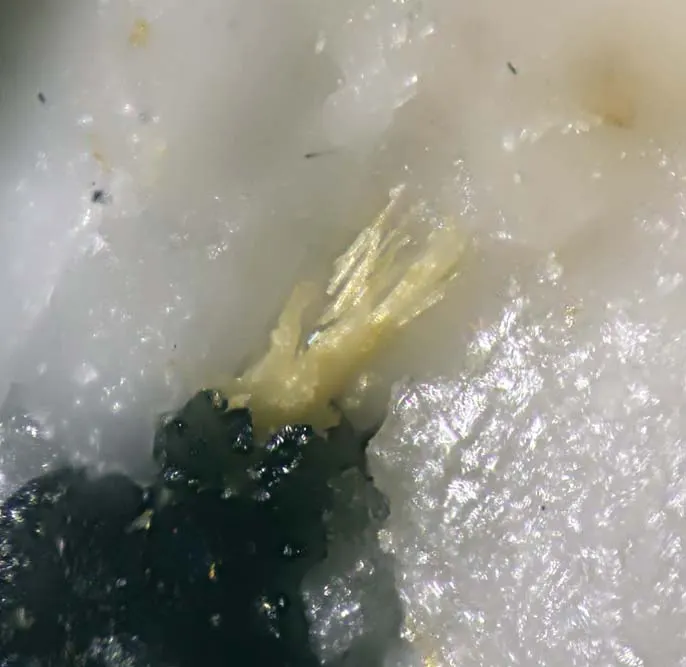

Fogoite-(Y)

Ca2Y2Na3Ti(Si2O7)2(OF)F2
IMA status
  • Approved
IMA symbol
Fog-Y
IMA approved
2015
Also known as
  • Fogoiet-(Y)
  • IMA2014-098

Where it forms, where it's found

Geological setting

Peralkaline volcanic rocks.

Type locality
Ruins of Lombadas syenite xenolith occurrence
  1. Ribeira Grande
  2. São Miguel
  3. Azores
  4. Portugal

37.7739°, -25.4586°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · creamy white

generally transparent

Streak
White
Cleavage
Very Good

(100)

Fracture
Splintery
Density
3.523 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 57° · 2V calc = 60°
Refractive index
1.686 – 1.702
Surface relief
High
Principal indices
nα 1.686 · nβ 1.690 · nγ 1.702
Pleochroism
Non-pleochroic
Extinction
X ∧ a = 100.5°, X ∧ b = 20.0°, X ∧ c = 2.1°. Y ∧ a = 100.8°, Y ∧ b = 2.1°, Y ∧ c = 88.0°. Z ∧ a = 164.9°, Z ∧ b = 89.1°, Z ∧ c = 89.9°.
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 9.575(6) Å · b = 5.685(4) Å · c = 7.279(5) Å
Cell angles
α = 89.985(6) ° · β = 100.933(4) ° · γ = 101.300(5) °
Ratio a:b:c
1 : 0.594 : 0.760
Unit cell volume
381.2 ų
Z
1
Morphology

.Prisms, elongated on [001]

Twinning

twinned

Type-locality form

Highly elongated [001] prisms, [001] elongation, up to 2 mm in length, up to 50 x 50 μm in cross-section.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
30.60%
39YYttriumYttrium288.906177.812
22.68%
14SiSiliconSilicon428.085112.340
14.33%
20CaCalciumCalcium240.07880.156
10.22%
11NaSodiumSodium322.99068.970
8.80%
9FFluorineFluorine318.99856.994
7.27%
22TiTitaniumTitanium147.86747.867
6.10%
Total784.124100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mn
  • Nb

Synonyms

  • Fogoiet-(Y)
  • IMA2014-098

In other languages

German
Fogoit-(Y) · IMA 2014-098
Italian
fogoite-(Y)

Classification

Strunz
10th ed.

9.BE.22

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.22Fogoite-(Y)Species

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter No 24. Mineralogical Magazine, 79 (2) 247-251 doi:10.1180/minmag.2015.079.2.03DOI: 10.1180/minmag.2015.079.2.03
  2. 2017Cámara, F., Sokolova, E., Abdu, Y. A., Hawthorne, F. C., Charrier, T., Dorcet, V., Carpentier, J. -F. (2017) Fogoite-(Y), Na3Ca2Y2Ti(Si2O7)2OF3, a Group I TS-block mineral from the Lagoa do Fogo, the Fogo volcano, São Miguel Island, the Azores: Description and crystal structure. Mineralogical Magazine, 81 (2) 369-381 doi:10.1180/minmag.2016.080.103 DOI: 10.1180/minmag.2016.080.103
  3. 2017Sokolova, E., Cámara, F. (2017) The seidozerite supergroup of TS-block minerals: nomenclature and classification, with change of the following names: rinkite to rinkite-(Ce), mosandrite to mosandrite-(Ce), hainite to hainite-(Y) and innelite-1T to innelite-1A. Mineralogical Magazine, 81 (6) 1457-1484 doi:10.1180/minmag.2017.081.010 DOI: 10.1180/minmag.2017.081.010
  4. 2020(2020) Fogoite-(Y). Handbook of Mineralogy. Mineralogical Society of America
