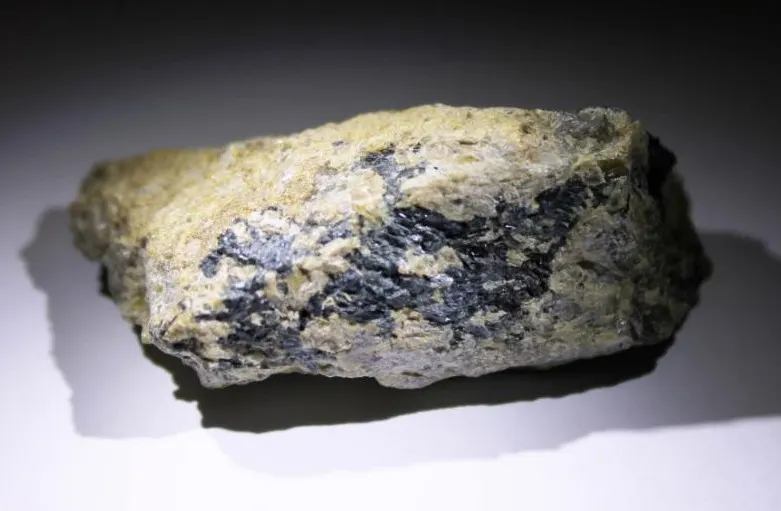

Rinkite-(Y)

Na2Ca4YTi(Si2O7)2OF3
IMA status
  • Approved
IMA symbol
Rin-Y
IMA approved
2017
Also known as
  • IMA2017-043
  • Rinkiet-(Y)

Where it forms, where it's found

Type locality
Dara-i-Pioz Massif
  1. Districts of Republican Subordination
  2. Tajikistan

39.4504°, 70.7163°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white
Streak
White
Tenacity
brittle
Cleavage
Very Good

(100)

Fracture
Irregular/Uneven · Conchoidal
Density
3.44 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 50° · 2V calc = 49.7°
Refractive index
1.662 – 1.685
Surface relief
High
Principal indices
nα 1.662 · nβ 1.666 · nγ 1.685
Pleochroism
Non-pleochroic
UV response
None observed
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7.3934(5) Å · b = 5.6347(4) Å · c = 18.713(1) Å
Cell angles
β = 101.415(2) °
Ratio a:b:c
1 : 0.762 : 2.531
Unit cell volume
764.2 ų
Parting
None
Type-locality form

Aggregates (to 1.5 cm long) of acicular crystals 0.1-1.0 mm thick, and as separate elongated columnar, flattened-prismatic crystals up to 1 cm long with rectangular or rhombic sections up to 0.5 mm across.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
31.90%
20CaCalciumCalcium440.078160.312
21.31%
14SiSiliconSilicon428.085112.340
14.93%
39YYttriumYttrium188.90688.906
11.82%
9FFluorineFluorine318.99856.994
7.57%
22TiTitaniumTitanium147.86747.867
6.36%
11NaSodiumSodium222.99045.980
6.11%
Total752.384100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-043
  • Rinkiet-(Y)

In other languages

German
IMA 2017-043 · Rinkit-(Y)

Classification

Strunz
10th ed.

9.BE.20

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.20Rinkite-(Y)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 39. Mineralogical Magazine, 81 (5) 1279-1286 doi:10.1180/minmag.2017.081.072DOI: 10.1180/minmag.2017.081.072
  2. 2017Sokolova, E., Cámara, F. (2017) The seidozerite supergroup of TS-block minerals: nomenclature and classification, with change of the following names: rinkite to rinkite-(Ce), mosandrite to mosandrite-(Ce), hainite to hainite-(Y) and innelite-1T to innelite-1A. Mineralogical Magazine, 81 (6) 1457-1484 doi:10.1180/minmag.2017.081.010 DOI: 10.1180/minmag.2017.081.010
  3. 2019Pautov, Leonid A., Agakhanov, Atali A., Karpenko, Vladimir Yu., Uvarova, Yulia A., Sokolova, Elena, Hawthorne, Frank C. (2019) Rinkite-(Y), Na2Ca4YTi(Si2O7)2OF3, a seidozerite-supergroup TS-block mineral from the Darai-Pioz alkaline massif, Tien-Shan mountains, Tajikistan: Description and crystal structure. Mineralogical Magazine, 83 (3) 373-380 doi:10.1180/mgm.2018.122 DOI: 10.1180/mgm.2018.122
  4. 2022(2022) Rinkite-(Y). Handbook of Mineralogy. Mineralogical Society of America
