Kapellasite

Cu3Zn(OH)6Cl2
IMA status
  • Approved
IMA symbol
Kap
IMA approved
2005
Also known as
  • IMA2005-009
  • Kapellasiet

Where it forms, where it's found

Geological setting

Formed underground in a mine, from weathering of copper- and zinc-containing ore, in the presence of chloride ions.

Type locality
Sounion Mine No. 19
  1. Cato Sounio mines
  2. Sounion
  3. Lavreotiki
  4. East Attica
  5. Attica
  6. Greece

37.6696°, 24.0158°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Green-blue
Streak
Light green-blue
Tenacity
brittle
Cleavage
Distinct/Good

Parallel to (0001)

Fracture
Irregular/Uneven
Density
3.55 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.76 – 1.8
Surface relief
High
Principal indices
nω 1.80 · nε 1.76
Pleochroism
Strong

E = pale green and O = green-blue.

UV response
Not fluorescent in LW or SW UV.
Notes

Some crystals show biaxial behavior with 2V up to 20 degrees.

Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#97
Cell parameters
a = 6.300 Å · c = 5.733 Å
Unit cell volume
197.06 ų
Z
1
Morphology

Most crystals exhibit a bladed or needle-like irregular habit and are typically strongly distorted with elongation perpendicular to [0001]. Crystallographic forms are (0001) and (1010).

Twinning

None observed

Type-locality form

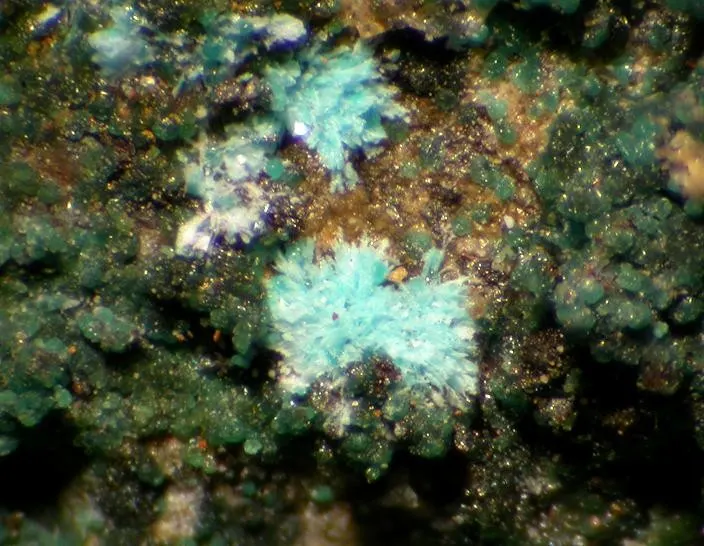

Crusts and small aggregates up to 0.5 mm, composed of bladed or needle-like indistinct crystals up to 0.2 mm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper363.546190.638
44.44%
8OOxygenOxygen615.99995.994
22.38%
17ClChlorineChlorine235.45070.900
16.53%
30ZnZincZinc165.38065.380
15.24%
1HHydrogenHydrogen61.0086.048
1.41%
Total428.960100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2005-009
  • Kapellasiet

In other languages

German
IMA 2005-009 · Kapellasit
Spanish
Kapellasita
Italian
kapellasite

Classification

Strunz
10th ed.

3.DA.10c

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DAWith Cu, etc., without PbGroup
  • 3.DA.10cKapellasiteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1949Feitknecht, W., Maget, K. (1949) Über Doppelhydroxyde und basische Doppelsalze. Über basische Doppelchloride des Kupfers. Helvetica Chimica Acta, 32 (5). 1653-1667 doi:10.1002/hlca.19490320536DOI: 10.1002/hlca.19490320536
  2. 1999Wendel, Wolfgang; Blaß, Günther; Mühlbauer, Werner; Markl, Gregor (1999) Hilarion - Plaka - Sounion. Lavrion-News 1997 - 1999. Lapis, 24 (7-8). 64-67
  3. 2006Krause, W., Bernhardt, H.-J., Braithwaite, R.S.W., Kolitsch, U., Pritchard, R. (2006) Kapellasite, Cu3Zn(OH)6CI2, a new mineral from Lavrion, Greece, and its crystal structure. Mineralogical Magazine, 70 (3) 329-340 doi:10.1180/0026461067030336DOI: 10.1180/0026461067030336
  4. 2022(2022) Kapellasite. Handbook of Mineralogy. Mineralogical Society of America
