Rosenbuschite

Ca6Zr2Na6ZrTi(Si2O7)4(OF)2F4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Rbs
Discovered
1887
Also known as
  • Rosenbuschiet

Where it forms, where it's found

Geological setting

Nepheline syenite pegmatite,

Type locality
Skutesundskjær
  1. Barkevik area
  2. Larvik Commune
  3. Vestfold
  4. Norway

59.0055°, 9.8483°

44recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Tannish brown to medium brown · grayish brown
Streak
White
Tenacity
brittle
Cleavage
Perfect

(010), also (100) fair

Fracture
Irregular/Uneven · Splintery
Density
3.30 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 78 – 80°
Refractive index
1.678 – 1.705
Surface relief
High
Principal indices
nα 1.678 · nβ 1.687 · nγ 1.705
Birefringence
0.027
Pleochroism
Weak

X,Y colorless, Z=yellow

Dispersion
r >> v strong
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 10.12 Å · b = 11.37 Å · c = 7.35 Å
Cell angles
α = 90.63 ° · β = 100.75 ° · γ = 112.01 °
Ratio a:b:c
1 : 1.124 : 0.726
Z
4

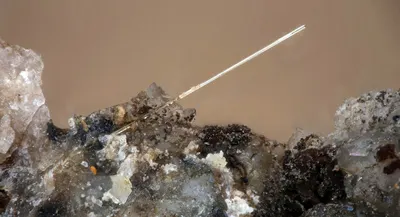

Morphology

Rod-like irregular crystals, also fibrous; rarely in cavities; acicular crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
31.61%
40ZrZirconiumZirconium391.224273.672
18.02%
20CaCalciumCalcium640.078240.468
15.83%
14SiSiliconSilicon828.085224.680
14.80%
11NaSodiumSodium622.990137.940
9.08%
9FFluorineFluorine618.998113.988
7.51%
22TiTitaniumTitanium147.86747.867
3.15%
Total1518.585100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ce
  • Fe
  • Mn

Synonyms

  • Rosenbuschiet

In other languages

German
Rosenbuschit
Italian
Rosenbuschite

Classification

Strunz
10th ed.

9.BE.22

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.22RosenbuschiteSpecies
Dana
8th ed.

56.02.04.08

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.08RosenbuschiteSpecies
CIM

17.1.28

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.28RosenbuschiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Soviet Physics – Crystallography: 8: 505-516.
  2. 1887Brögger, W. C. (1887) Forelöbig meddelelse om mineralerne på de sydnorske augit- og nefelinsyeniters grovkornige gange. Geologiska Föreningen i Stockholm Förhandlingar, 9 (4) 247-274 doi:10.1080/11035898709444657DOI: 10.1080/11035898709444657
  3. 1937Peacock, M.A (1937) On rosenbuschite. Norsk Geologisk Tidsskrift [Norwegian Journal of Geology], 17 (1) 17-30
  4. 1963Shibaeva, R.P., Simonov, V.I., Belov, N.V. (1963) Crystal structure of the Ca,Na,Zr,Ti silicate rosenbuschite, Ca3.5Na2.5Zr(Ti,Mn,Nb)[Si2O7]2F2O(F,O). Soviet Physics - Crystallography: 8: 406-413.
  5. 1972Cannillo, E., Mazzi, F. & Rossi, G. (1972) Crystal structure of gotzenite. Soviet Physics - Crystallography: 16(6): 1026-1030.
