Sveinbergeite

(H2O)2[Ca(H2O)](Fe2+6Fe3+)Ti2(Si4O12)2O2(OH)4[(OH)(H2O)]
IMA status
  • Approved
IMA symbol
Sve
Discovered
1987
IMA approved
2010
Also known as
  • IMA2010-027
  • Sveinbergeiet

Where it forms, where it's found

Geological setting

A syenite pegmatite embedded in larvikite in the Larvik plutonic complex in the southern part of the Oslo Region, Norway.

Type locality
Buer
  1. Vesterøya
  2. Sandefjord
  3. Vestfold
  4. Norway

59.0977°, 10.2624°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Deep green
Streak
pale green
Cleavage
Perfect

on (001)

Density
3.152 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 20°
Refractive index
1.745 – 2
Surface relief
Very high
Principal indices
nα 1.745 – 2 · nβ 1.746 – 2 · nγ 1.753 – 2
Pleochroism
Visible

Z > X ~ Y : Z is deep green, X and Y are brownish green.

Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.33(1) Å · b = 11.82(2) Å · c = 11.85(2) Å
Cell angles
α = 101.2(1) ° · β = 98.2(1) ° · γ = 102.5(2) °
Ratio a:b:c
1 : 2.218 : 2.223
Type-locality form

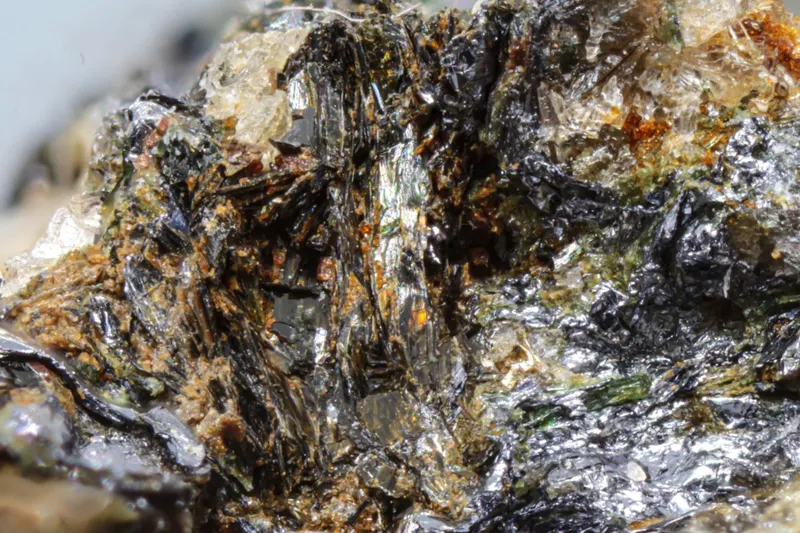

As 0.01-0.05 mm thick lamellar (0.2-0.5 X 5-10mm crystals forming rosette-like divergent groups and spherical aggregates. Often covered by brown coatings of iron (and possibly manganese) oxides.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3515.999559.965
42.28%
26FeIronIron755.845390.915
29.51%
14SiSiliconSilicon828.085224.680
16.96%
22TiTitaniumTitanium247.86795.734
7.23%
20CaCalciumCalcium140.07840.078
3.03%
1HHydrogenHydrogen131.00813.104
0.99%
Total1324.476100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2010-027
  • Sveinbergeiet

In other languages

German
IMA 2010-027 · Sveinbergeit
Italian
sveinbergite

Classification

Strunz
10th ed.

9.DC.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DCInosilicates with branched 2-periodic single chains; Si2O6 + 2SiO3 Si4O12Group
  • 9.DC.05SveinbergeiteSpecies
Dana
8th ed.

69.01.01.06

  • 69Inosilicates Chains with Side Branches or LoopsClass
  • 69.01Chains with Side Branches or Loops with (P=2, and N=4, 2 branches)Type
  • 69.01.01Astrophyllite groupGroup
  • 69.01.01.06SveinbergeiteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
7 minerals

Literature, links & citation

Citations
  1. 2010Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2010) New minerals and nomenclature modifications approved in 2010, CNMNC Newsletter No 5. Mineralogical Magazine, 74 (5) 859-862 doi:10.1180/s0026461x00056887 DOI: 10.1180/s0026461x00056887
  2. 2011Berge, Svein Arne, Larsen, Knut Edvard, Andersen, Frode (2011) Buer, Vesterøya, Sandefjord- en typelokalitet for et nytt mineral [Buer, Vesterøya, Sandefjord - a type locality for a new mineral]. Norsk Bergverksmuseum Skrift, 46. 49-56
  3. 2011Khomyakov, A. P., Cámara, F., Sokolova, E., Abdu, Y., Hawthorne, F. C. (2011) Sveinbergeite, Ca(Fe2+6 Fe3+)Ti2(Si4O12)2O2(OH)5(H2O)4, a new astrophyllite-group mineral from the Larvik Plutonic Complex, Oslo Region, Norway: description and crystal structure. Mineralogical Magazine, 75 (5) 2687-2702 doi:10.1180/minmag.2011.075.5.2687 DOI: 10.1180/minmag.2011.075.5.2687
  4. 2014(2014) Sveinbergeite. Handbook of Mineralogy. Mineralogical Society of America
