Englishite

K3Na2Ca10Al15(OH)7(PO4)21 · 26H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Egs
Discovered
1930
Also known as
  • Englishiet

Where it forms, where it's found

Geological setting

Complex granitic pegmatite.

Type locality
Clay Canyon
  1. Fairfield
  2. Sunshine Mining District
  3. Utah County
  4. Utah
  5. USA

40.2764°, -112.1604°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Pearly
Transparency
Transparent
Colour
Colourless to white · grayish green · colourless in transmitted light.
Streak
White
Tenacity
flexible
Cleavage
Perfect

On (001), perfect, micaceous.

Density
2.65 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.57 – 1.573
Surface relief
Moderate
Principal indices
nα 1.57 · nβ 1.572 · nγ 1.573
Dispersion
r > v
Extinction
X = c; Y ≃ a; Z ≃ b.
Notes

2V small.

Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 38.43 Å · b = 11.86 Å · c = 20.67 Å
Cell angles
β = 111.25 °
Ratio a:b:c
1 : 0.309 : 0.538
Z
4
Morphology

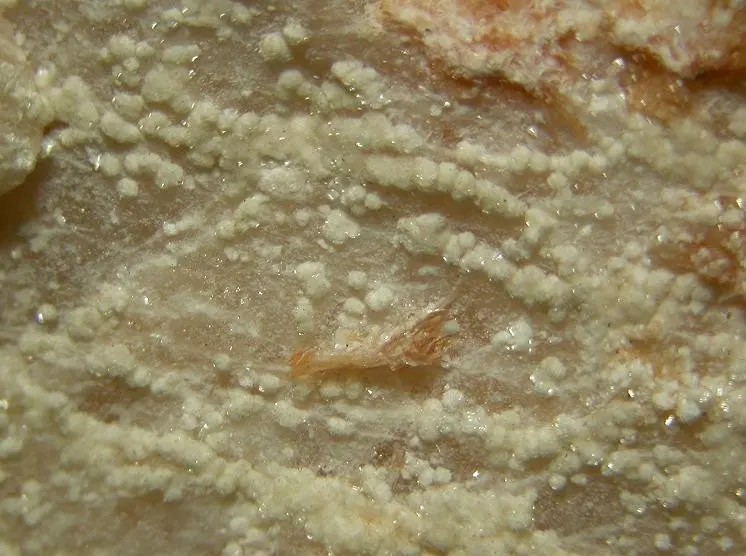

Layers and aggregates of subparallel plates; friable masses.

Type-locality form

Crusts in variscite nodules.

Comment

Class 2/m or m; Space Group A2/a or Aa.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen11715.9991871.883
52.72%
15PPhosphorusPhosphorus2130.974650.454
18.32%
13AlAluminiumAluminium1526.982404.730
11.40%
20CaCalciumCalcium1040.078400.780
11.29%
19KPotassiumPotassium339.098117.294
3.30%
1HHydrogenHydrogen591.00859.472
1.67%
11NaSodiumSodium222.99045.980
1.30%
Total3550.593100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Englishiet

In other languages

German
Englishit
Italian
Englishite
Russian
Инглишит

Classification

Strunz
10th ed.

8.DH.55

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.55EnglishiteSpecies
Dana
8th ed.

42.13.08.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.13MiscellaneousType
  • 42.13.08— unnamed intermediate level —Group
  • 42.13.08.01EnglishiteSpecies
CIM

19.8.21

  • 19PhosphatesClass
  • 19.8Phosphates of Al and other metalsGroup
  • 19.8.21EnglishiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1930Larsen, Esper S., Shannon, Earl V. (1930) The minerals of the phosphate nodules from near Fairfield, Utah. American Mineralogist, 15 (8) 307-337
  2. 1942Larsen, Esper S., 3d, (1942) The mineralogy and paragenesis of the variscite nodules from near Fairfield, Utah, Part 1. American Mineralogist, 27 (4) 281-300
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1976Moore, Paul Brian (1976) Derivative structures based on the alunite octahedral sheet: mitridatite and englishite. Mineralogical Magazine, 40 (316) 863-866 doi:10.1180/minmag.1976.040.316.07 DOI: 10.1180/minmag.1976.040.316.07
  5. 1984Dunn, Peter J., Rouse, R. C., Nelen, J. A. (1984) Englishite: new chemical data and a second occurrence, from the Tip Top pegmatite, Custer, South Dakota. The Canadian Mineralogist, 22 (3) 469-470
