Spherocobaltite

Co(CO3)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Scbt
Discovered
1877
Also known as
  • Cobaltocalcite (of Frondel)
  • Kobaltspath
  • Sphaerocobaltita
  • +3 more

Where it forms, where it's found

Geological setting

In Co-Ni veins

Cobalt deposits with oxidised zones containing carbonates.

Type locality
Daniel Mine (St. Daniel Mine)
  1. Neustädtel
  2. Schneeberg
  3. Erzgebirgskreis
  4. Saxony
  5. Germany

50.5789°, 12.6161°

69recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent

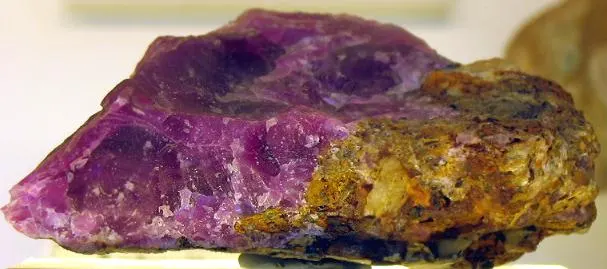

Colour
Most commonly dark magenta red · sometimes brownish red · greyish red · or velvet-black (due to surface alteraton)
Streak
Magenta, red, "peach blossom red"
Tenacity
brittle
Cleavage
Poor/Indistinct

On {101¯1} (?)

Density
4.13 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.6 – 1.855
Surface relief
High
Principal indices
nω 1.855 · nε 1.600
Birefringence
0.255
Pleochroism
Visible

Dichroic: O = violet-red; E = rose-red.

UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.2550
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2550 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2550 nm
Order5th order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3c
Cell parameters
a = 4.658 Å · c = 14.958 Å
Z
6
Morphology

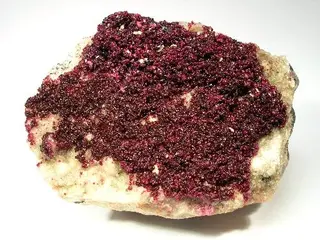

Crystals rare. Occurs commonly as small spherical masses with a crystalline surface and concentric and radiated structure; as crusts.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
27CoCobaltCobalt158.93358.933
49.55%
8OOxygenOxygen315.99947.997
40.35%
6CCarbonCarbon112.01112.011
10.10%
Total118.941100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca
  • Ni
  • Fe
  • O

Synonyms

  • Cobaltocalcite (of Frondel)
  • Kobaltspath
  • Sphaerocobaltita
  • Sphaerokobaltit
  • Sphärokobaltit
  • Spherocobaltiet

In other languages

French
sphaérocobaltite · Sphérocobaltite
German
Sphaerocobaltit · Sphaerokobaltit · Sphärocobaltit
Spanish
Esferocobaltita
Italian
Sferocobaltite
Japanese
菱コバルト鉱
Chinese
菱鈷礦
Traditional Chinese
菱鈷礦
Russian
Сферокобальтит
Arabic
سفيروكوبالتيت

Classification

Strunz
10th ed.

5.AB.05

  • 5CarbonatesClass
  • 5.ACarbonates without additional anions, without H2ODivision
  • 5.ABAlkali-earth (and other M2+) carbonatesGroup
  • 5.AB.05SpherocobaltiteSpecies
Dana
8th ed.

14.01.01.05

  • 14Anhydrous Normal CarbonatesClass
  • 14.01A(XO3)Type
  • 14.01.01Calcite Group (Trigonal: R-3c)Group
  • 14.01.01.05SpherocobaltiteSpecies
CIM

11.14.1

  • 11CarbonatesClass
  • 11.14Carbonates of Co and NiGroup
  • 11.14.1SpherocobaltiteSpecies

Group, growth & confusion

In the same group
7 members
Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1877Weisbach, Albin (1877) Kobaltspath, ein neues Glied der Kalkspath-gruppe. Neues Jahrbuch für Mineralogie, Geologie und Palaontologie, 1877, 409-409.
  2. 1877Weisbach, Albin (1877) Mineralogische Mittheilungen. Jahrbuch für das Berg- und Hüttenwesen im Königreiche Sachsen, 1877, 42-53. (as Sphäro-kobaltit).
  3. 1899Ferro (1899) Atti soc. sc. Genoa: 10: 264.
  4. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  5. 1927Pelloux (1927) Ann. Mus. Civico Stor. Nat. Genova: 52: 269.
