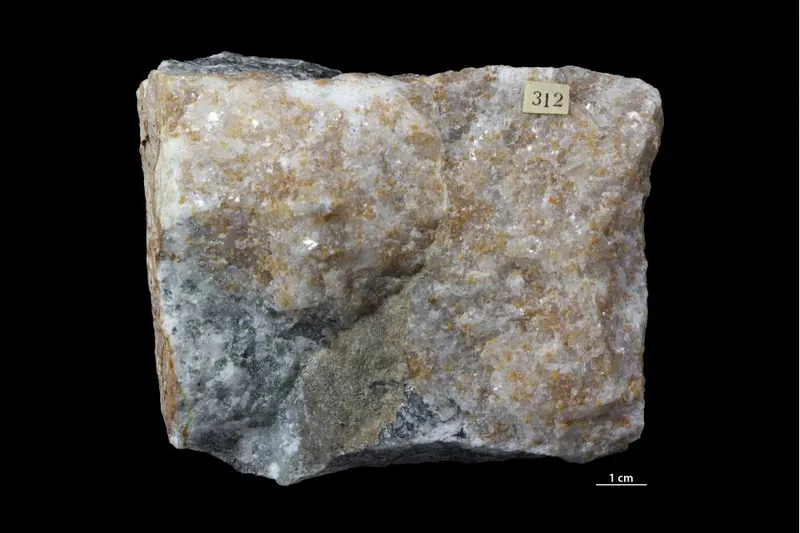

Forsterite

Mg2(SiO4)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fo
Discovered
1824
Also known as
  • Boltonit
  • Boltonita
  • Boltonite
  • +2 more

Where it forms, where it's found

Geological setting

In mafic and ultramafic igneous rocks, metamorphosed impure dolomites

Type locality
Mount Somma
  1. Metropolitan City of Naples
  2. Campania
  3. Italy
1,378recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Green · pale yellow or white.
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (010) imperfect on (100)

Fracture
Conchoidal
Density
3.275 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 74 – 90° · 2V calc = 56 – 84°
Refractive index
1.636 – 1.772
Surface relief
High
Principal indices
nα 1.636 – 1.73 · nβ 1.65 – 1.739 · nγ 1.669 – 1.772
Pleochroism
Non-pleochroic
Dispersion
r > v or r < v
Michel-Lévy diagramhighlighted lineδ = 0.0375
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]375 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation375 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 4.754 Å · b = 10.1971 Å · c = 5.9806 Å
Ratio a:b:c
1 : 2.145 : 1.258
Z
4
Morphology

Euhedral to subhedral crystals

Twinning

(100) (011) (012)

Comment

Data for synthetic material.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
45.49%
12MgMagnesiumMagnesium224.30548.610
34.55%
14SiSiliconSilicon128.08528.085
19.96%
Total140.691100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • Boltonit
  • Boltonita
  • Boltonite
  • Peridoto Bianco
  • White Olivine

In other languages

French
Boltonite · Forstérite · Mg2SiO4 · Péridot blanc
German
Forsterit
Spanish
forsterita
Italian
Forsterite
Portuguese
forsterite
Japanese
苦土カンラン石
Chinese
鎂橄欖石 · 镁橄榄石
Simplified Chinese
镁橄榄石
Russian
форстерит

Classification

Strunz
10th ed.

9.AC.05

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.ACNesosilicates without additional anions; cations in octahedral [6] coordinationGroup
  • 9.AC.05ForsteriteSpecies
Dana
8th ed.

51.03.01.02

  • 51Nesosilicates Insular Sio4 Groups OnlyClass
  • 51.03Insular SiO4 Groups Only with all cations in octahedral [6] coordinationType
  • 51.03.01Olivine groupGroup
  • 51.03.01.02ForsteriteSpecies
CIM

14.4.1

  • 14Silicates not Containing AluminumClass
  • 14.4Silicates of MgGroup
  • 14.4.1ForsteriteSpecies

Group, growth & confusion

Often grow together
4 minerals
Commonly confused with
4 minerals

Literature, links & citation

Citations
  1. 1795Klaproth, M. H. (1795) VII. Untersuchung des Chrysoliths. In Beiträge zur chemischen Kenntniss der Mineralkörper Vol. 1. Rottmann. p.105-111.
  2. 1892Dana, E.S. (1892) System of Mineralogy, 6th. Edition, New York: 450-451, 451-456 (as chrysolite).
  3. 1963Mason, Brian (1963) Olivine composition in chondrites. Geochimica et Cosmochimica Acta, 27 (10) 1011-1023 doi:10.1016/0016-7037(63)90062-0DOI: 10.1016/0016-7037(63)90062-0
  4. 1969Kushiro, I. (1969) The system forsterite-diopside-silica with and without water at high pressures. American Journal of Science: 267: 269-294.
  5. 1969Hohler, V.; Funck, E. (1969) Infrarot-Spektrum von Sinhalit und Olivin. Die Naturwissenschaften, 56 (9). 459 doi:10.1007/bf00601064DOI: 10.1007/bf00601064
