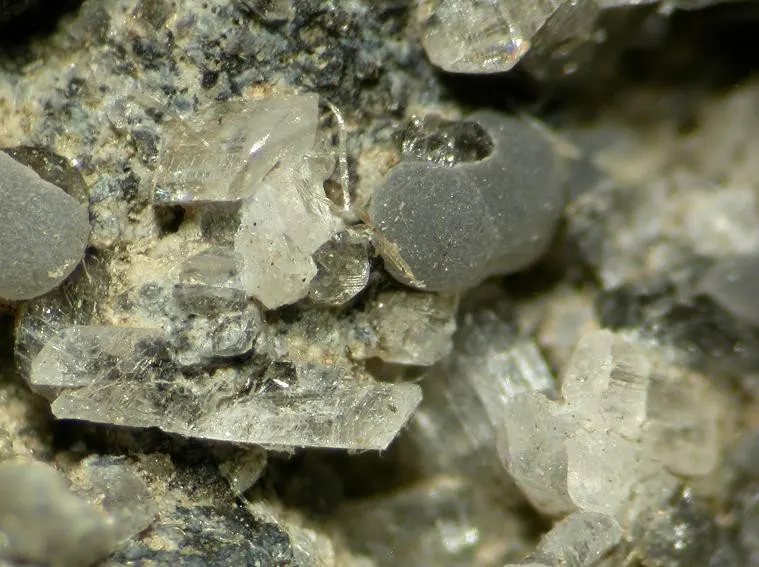

Kirschsteinite

CaFe2+(SiO4)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Kir
Discovered
1957
Also known as
  • Fe-monticellite
  • Kirschsteiniet
  • Lime-Iron-Olivine

Where it forms, where it's found

Geological setting

Melilite-nephelinite lava

Calcareous skarn

Type locality
Mount Shaheru
  1. Nyiragongo Volcano
  2. Nyiragongo Territory
  3. North Kivu
  4. DR Congo

-1.4833°, 29.2333°

45recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
greenish
Density
3.434 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 51° · 2V calc = 16 – 74°
Refractive index
1.674 – 1.735
Surface relief
High
Principal indices
nα 1.674 – 1.693 · nβ 1.694 – 1.734 · nγ 1.706 – 1.735
Dispersion
r > v or r < v
Michel-Lévy diagramhighlighted lineδ = 0.0370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]370 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation370 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 4.859 Å · b = 11.132 Å · c = 6.420 Å
Ratio a:b:c
1 : 2.291 : 1.321
Z
4
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
34.04%
26FeIronIron155.84555.845
29.70%
20CaCalciumCalcium140.07840.078
21.32%
14SiSiliconSilicon128.08528.085
14.94%
Total188.004100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mn
  • Mg
  • Na
  • K
  • P
  • H2O

Synonyms

  • Fe-monticellite
  • Kirschsteiniet
  • Lime-Iron-Olivine

In other languages

French
Kirschsteinite
German
Kirschsteinit
Italian
Kirschsteinite

Classification

Strunz
10th ed.

9.AC.05

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.ACNesosilicates without additional anions; cations in octahedral [6] coordinationGroup
  • 9.AC.05KirschsteiniteSpecies
Dana
8th ed.

51.03.02.02

  • 51Nesosilicates Insular Sio4 Groups OnlyClass
  • 51.03Insular SiO4 Groups Only with all cations in octahedral [6] coordinationType
  • 51.03.02Monticellite - Kirschsteinite seriesGroup
  • 51.03.02.02KirschsteiniteSpecies
CIM

14.22.4

  • 14Silicates not Containing AluminumClass
  • 14.22Silicates of Fe and CaGroup
  • 14.22.4KirschsteiniteSpecies

Group, growth & confusion

Often grow together
8 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1957Sahama, Th. G., Hytönen, Kai (1957) Kirschsteinite, a natural analogue to synthetic iron monticellite, from the Belgian Congo. Mineralogical Magazine and Journal of the Mineralogical Society, 31 (239). 698-699 doi:10.1180/minmag.1957.31.239.08DOI: 10.1180/minmag.1957.31.239.08
  2. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (7-8). 790-798
  3. 1968Wyderko, Marta, Mazanek, Eugeniusz (1968) The mineralogical characteristics of calcium-iron olivines. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (283) 955-961 doi:10.1180/minmag.1968.283.036.06 DOI: 10.1180/minmag.1968.283.036.06
  4. 1970Doklady Akademii Nauk SSSR (1970): 190: 932-935.
  5. 1970Konev, A.A., Ushchapovskaya, Z.F., and Lebedeva, V.S. (1970) First find of magnesian kirschsteinite in the USSR. Dokl. Acad. Sci.USSR, Earth Sci. Sect., 190, 136-138.
