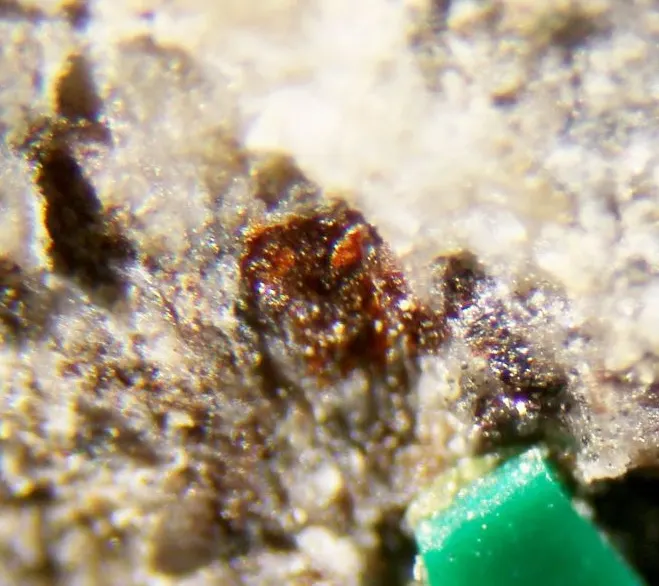

Pyrobelonite

PbMn2+VO4(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pbl
Discovered
1919
Also known as
  • Pyrobeloniet

Where it forms, where it's found

Geological setting

Mineralization in fractures

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

35recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Red · dark red
Streak
Orange-yellow, red-orange
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
5.58 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 29° · 2V calc = 52°
Refractive index
2.32 – 2.37
Surface relief
Very high
Principal indices
nα 2.32 · nβ 2.36 · nγ 2.37
Birefringence
0.05
Pleochroism
Visible

shades of red-brown.

Dispersion
none
Extinction
Parallel, XYZ = acb
Optical colour
Gray with red to orange internal glints
Anisotropism
Strong
Bireflectance
Visible
Tropism
Anisotropic
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnma
Cell parameters
a = 7.62 Å · b = 6.17 Å · c = 9.47 Å
Ratio a:b:c
1 : 0.810 : 1.243
Z
4
Morphology

Acicular [001] or acute pyramidal; blocky. Forms: (100), (110), (120), (210), (001), (011), (031), (111), (221).

Type-locality form

Long-prismatic needles, seldom over one mm long.

Comment

Given as Pnam. Kolitsch (2001) gives the following parameters for a practically pure sample: a = 7.646(2), b = 6.179(1), c = 9.507(2) Å.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
52.58%
8OOxygenOxygen515.99979.995
20.30%
25MnManganeseManganese154.93854.938
13.94%
23VVanadiumVanadium150.94250.942
12.93%
1HHydrogenHydrogen11.0081.008
0.25%
Total394.083100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Pyrobeloniet

In other languages

German
Pyrobelonit
Italian
Pirobelonite · Pyrobelonite

Classification

Strunz
10th ed.

8.BH.40

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.40PyrobeloniteSpecies
Dana
8th ed.

41.05.02.03

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.05(AB)2(XO4)ZqType
  • 41.05.02Descloizite GroupGroup
  • 41.05.02.03PyrobeloniteSpecies
CIM

21.4.17

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.4Vanadates of U, Mn, Fe or NiGroup
  • 21.4.17PyrobeloniteSpecies

Group, growth & confusion

Often grow together
5 minerals

Literature, links & citation

Citations
  1. 1919Flink, G. (1919) Pyrobelonit, ein neues Blei-Mangan-Vanadat von Långbanshyttan. Geologiska Föreningens i Stockholm Förhandlingar: 41: 433-447.
  2. 1920Foshag, W.F. (1920) New minerals. American Mineralogist: 5: 86-88.
  3. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  4. 1939Strunz, H. (1939) Mineralien der Descloizitgruppe. Konichalcit, Staszizit, Austinit, Duftit, Aräoxen, Volborthit, Pyrobelonit. Zeitschrift für Kristallographie, Mineralogie und Petrographie, 101 (1). 496-506 doi:10.1524/zkri.1939.101.1.496DOI: 10.1524/zkri.1939.101.1.496
  5. 1940Richmond, Wallace E. (1940) Crystal chemistry of the phosphates, arsenates and vanadates of the type A2XO4(Z). American Mineralogist, 25 (7). 441-479
